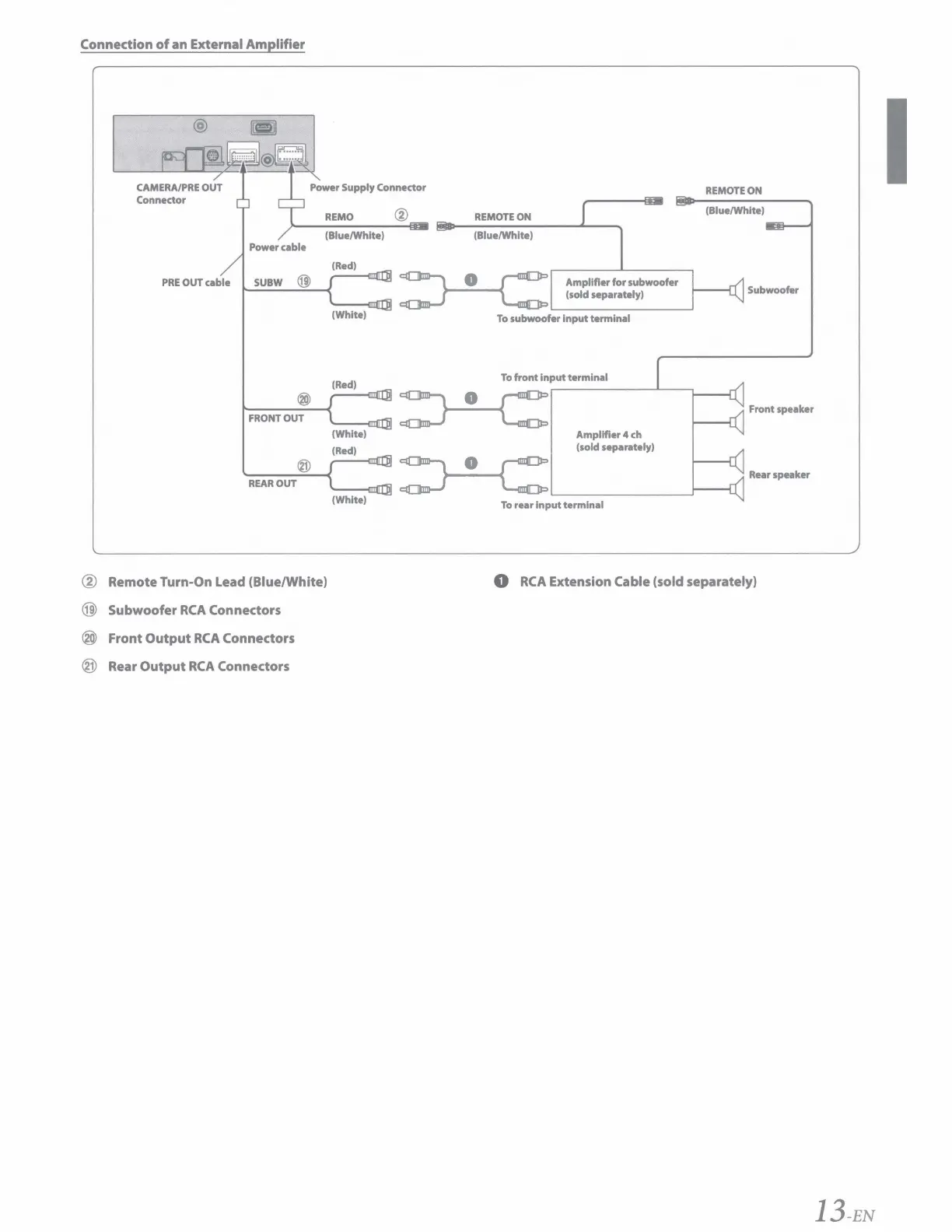

Connection of an External Amplifier
CAMERA/PRE OUT
Connector
Power Supply Connector
REMOTE ON
REMO
(Blue/White)
Power cable
(Red)
PRE OUT cable
SUBW @)
(White)
(Red)
@)
FRONT OUT
(White)
(Red)
®
REAR OUT
(White)
@ Remote Turn-On Lead (Blue/White)
@) Subwoofer RCA Connectors
® Front Output RCA Connectors
@ Rear Output RCA Connectors
@
REMOTE ON
(Blue/White)
~
Amplifier for subwoofer
(sold separately)
.__ ________ __,
To subwoofer Input terminal
To front Input terminal
~
Amplifier 4 ch
(sold separately)
~
To rear Input terminal
(Blue/White)
Subwoofer
Front speaker
Rear speaker
0 RCA Extension Cable (sold separately)
I
13 - EN
