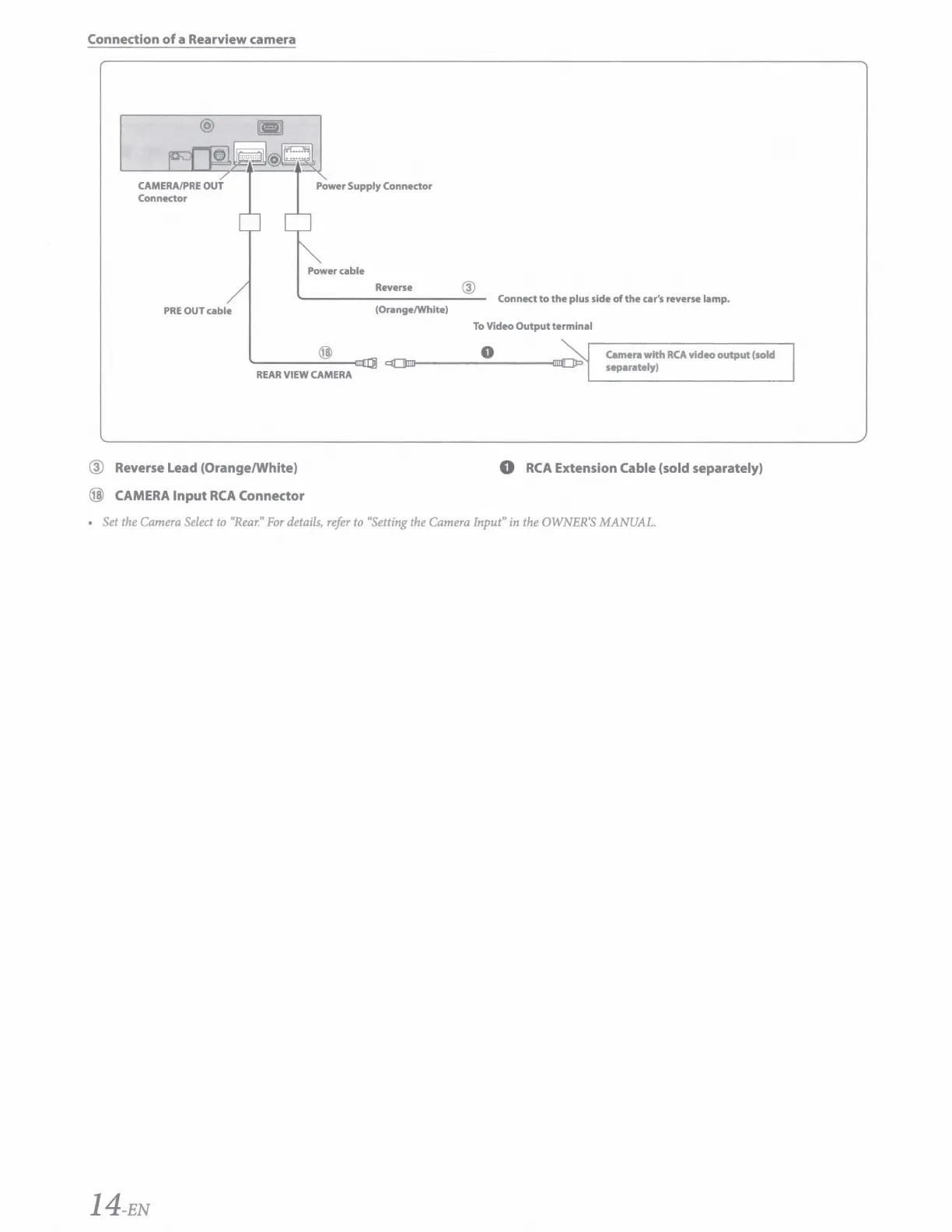

Connection of a Rearview camera
~~
CAMERA/PRE OUT Power Supply Connector
Connector
Power cable
PRE OUT cable
@)
REAR VIEW CAMERA
@ Reverse Lead {Orange/White)
@ CAMERA Input RCA Connector
Reverse @
Connect to the plus side of the car's reverse lamp.
(Orange/White)
To Video Output terminal
0
Camera with RCA video output (sold
separately)
0 RCA Extension Cable {sold separately)
• Set the Camera Select to "Rear." For details, refer to "Setting the Camera Input" in the OWNER'S MANUAL.
14 -EN
