ALPINE iLX-F509 68-41657Z87-A_QRG (EN)
14-EN
Owner’s manual Installation

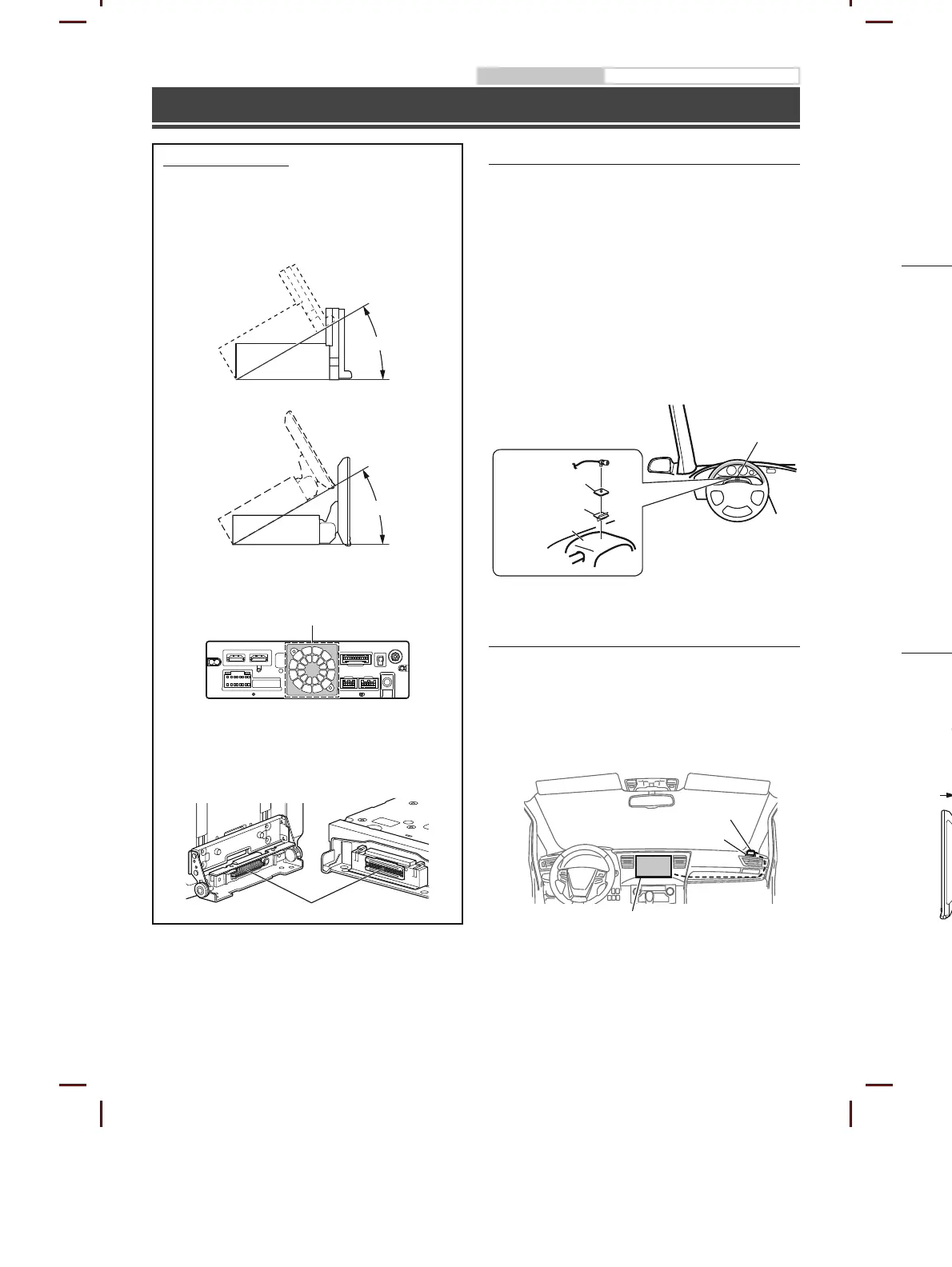

Installation
Note on installation
• Install at an angle between horizontal and 30°.
Note that installing at an angle outside of this
range will result in a loss of performance and
possible damage.
<iLX-507>
0 - 30°
<iLX-F509/iLX-F511>
0 - 30°
• Do not block the unit’s heat sink, which would
prevent air circulation. If blocked, heat will
accumulate inside the unit and may cause a fire.
Air ventilation hole
Rear of the Unit
• When installing the display unit and main unit, do
not touch the connectors with your hands.
(iLX-F509/iLX-F511 only)
Connectors
<Main unit><Display unit>
Mounting the Microphone
For safe use, make sure of the following:
• Location is stable and firm.
• Driver’s view and operations are not obstructed.
• Microphone is located where the driver’s voice can
be easily picked up.
When you speak into the microphone, you should not
have to change your driving posture. This may cause a
distraction, taking your attention away from safely
driving your vehicle. Carefully consider direction and
distance while mounting the microphone. Confirm
that the driver’s voice can be easily picked up at the
selected location.
Steering column
Microphone
Adhesive tape
Microphone base
Mounting the GPS Antenna inside the
vehicle
1 Clean the mounting location.
2 Put on the GPS Antenna mounting plate.
3 Mount the GPS Antenna.
GPS Antenna
Antenna mounting plate
This unit
• Do not mount the GPS Antenna inside the centre
console.
– Mount the GPS Antenna on a flat plane of the dash board or
rear tray.
– Make sure the GPS Antenna is not covered (obstructed) by any
metallic surface or object.
• If the GPS Antenna is mounted near the unit, the
reception becomes poor, and the location of your vehicle
may not be displayed correctly.
– Mount the GPS Antenna far away enough from the unit.
– Bundle the GPS Antenna cable away from the rear of the unit.
• Some thermal reflection type or thermal absorption type
glass may interrupt high frequency waves. If reception is
poor with the antenna installed inside the car, try to
mount the antenna outside the car.
Note on using HDMI Connection Cables
When using HDMI connec
cables to the HDMI
Fixation Bracket.
1 Secure the HDMI Fixation Bracket with the
scr
HDMI F
(Included)
Adjusting the display position
(iLX-F509/iLX-F511)
Depending on the vehicle, the front-back display
position diff
the slider t
Default setting: Back position
Front-back position
<Forward position>
