When you touch the screen in the DVB-T mode, the operation screen is
displayed. For details on how to operate, refer to the Owner’s Manual of
the connected Digital TV Receiver (DVB-T).

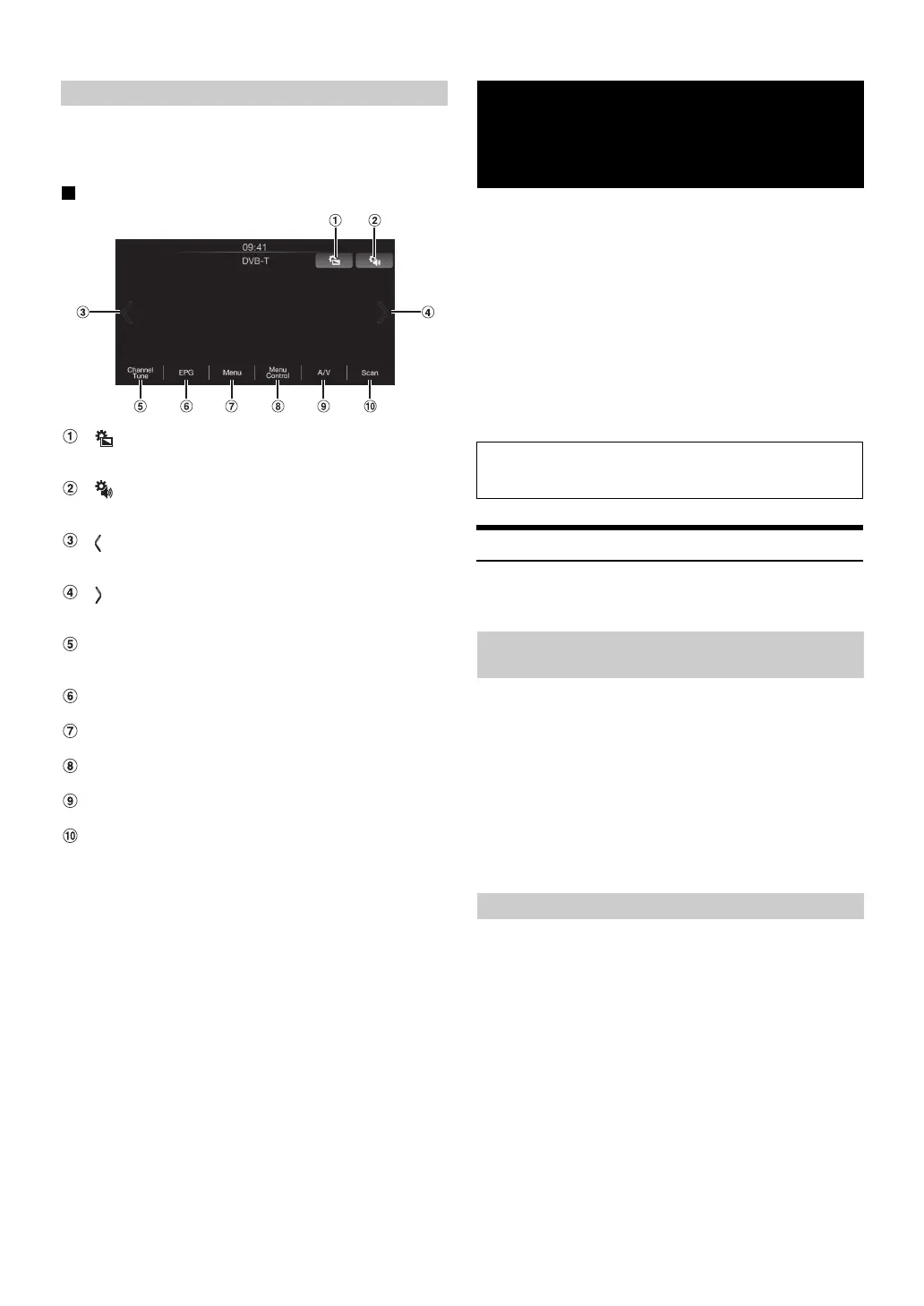

Menu operation mode screen display example
[]
Calls up the Display Setup screen. (see “Display Setup
Operation” on page 21)
[]
Calls up the Audio Setup screen. (see “Audio Setup
Operation” on page 18)
[]
Switches the Channel number / Favourite channel number
down.
[]
Switches the Channel number / Favourite channel number
up.
[Tune] (Channel or Favourite)
Switches between the Channel mode and the Favourite
channel mode.
[EPG]
Call up the Electronic Programme Guide (EPG).
[Menu]
Call up the menu screen.
[Menu Control]
Call up the menu operation mode.
[A/V]
Switches the source.
[Scan]
Touch the switch to start the scan procedure.
• If the setting for “Setting Direct Touch Operation” (page 27) is set to
“On”, direct touch operation is possible. Directly touch operation
switches displayed on the screen to operate. To display the operation
screen, touch [Control].
The video from an optional camera can be viewed from this head unit’s
display.
Depending on your camera, please choose the camera type (Rear or
Other) first. For details, refer to “Setting the Camera Input” (page 26).
Rear camera:
If an HCE-C305R/HCE-C300R/HCE-C210RD/HCE-C200R/
HCE-C155/HCE-C115/HCE-C105 camera is connected, when
the vehicle is reversed, the rear camera view (guide marks for
vehicle width and available distance) is displayed automatically
on the screen of this unit.
Other camera:
Set when connecting to a camera other than the Rear camera,
such as a room camera and side camera.
Rear Camera Operation
Set “Position” to “Rear”. Refer to “Setting the Camera Input” on
page 26.
1
Shift the gear lever to the reverse (R) position.
The rear view image is displayed while the car remains in
reverse.
2
If you shift the gear lever to a position other than
reverse (R), the monitor returns to the previous
screen.
• Never depend solely on the camera when backing up. Always turn
and look and only use the camera for additional assistance.
• This function is effective when the reverse wire is properly connected.
1
Press the Home button.
The Home screen is displayed.
2
Touch [Camera].
About the DVB-T operation screen
Camera Operation
(Optional)
You can adjust the quality of the camera image.
Setting items: Bright / Color / Contrast
Refer to “Display Setup” (page 21).
Displaying the rear view video while the
car is in reverse
Display the Rear View Video Manually
To Next Page
