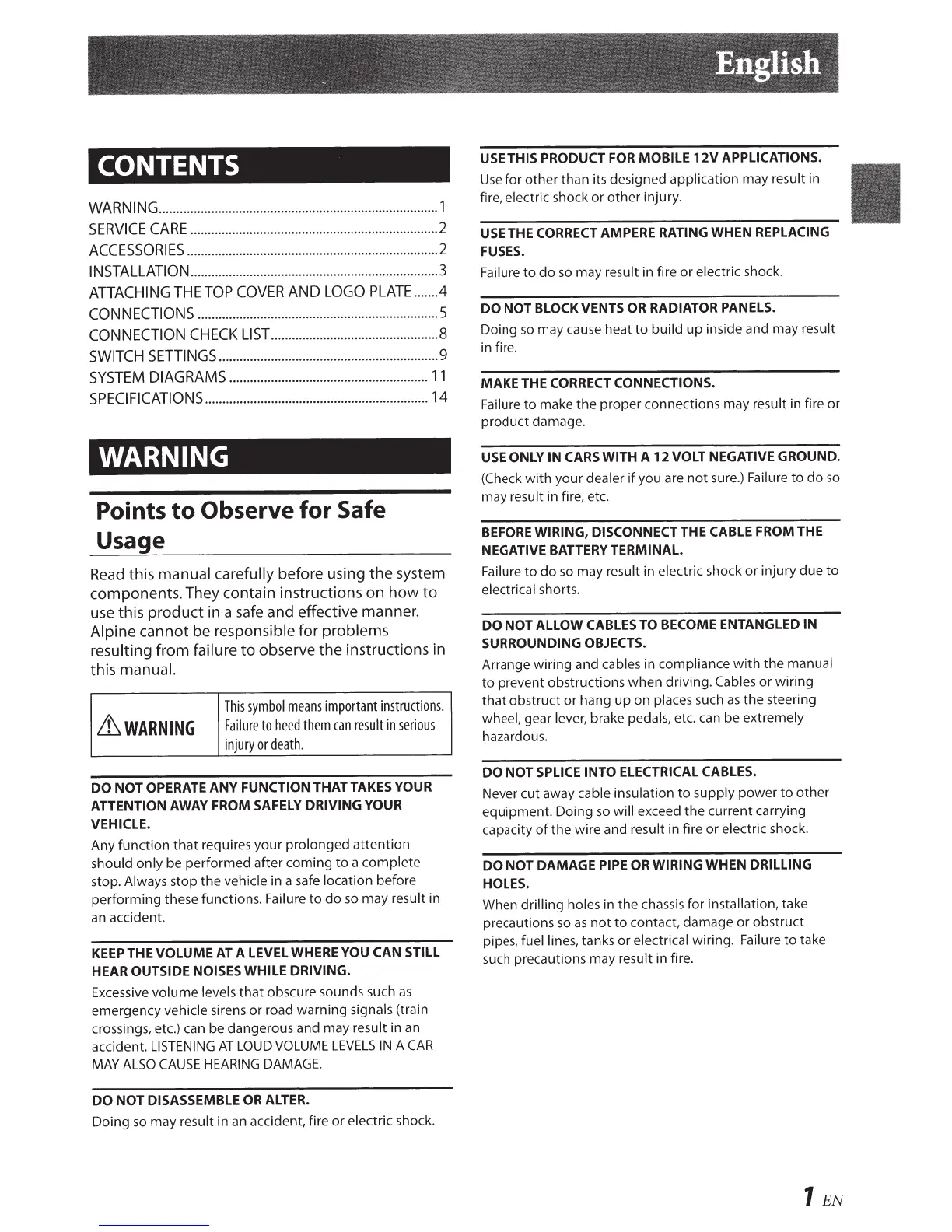

Alpine PDR-M65 - WARNING

· _ , English
CONTENTS
WARNING
................................................................................
1
SERVICE
CARE
.......................................................................
2
ACCESSORIES
........................................................................
2
INSTALLATION
.......................................................................
3
ATTACHING
THE
TOP
COVER
AND
LOGO
PLATE
......
.4
CONNECTIONS
.....................................................................
5
CONNECTION
CHECK
LIST
................................................
8
SWITCH
SETTINGS
......................................
.
........................
9
SYSTEM
DIAGRAMS
.........................................................
11
SPECIFICATIONS
................................................................
14
WARNING
Points
to
Observe for Safe
Usage
Read
this manual carefully before using
the
system
components. They contain instructions on
how
to
use this
product
in a
safe
and effective manner.
Alpine cannot be
responsible for
problems
resulting from
failure
to
observe the instructions in
this
manual.
~WARNING
This
symbol
means
important
instructions.
Failure
to
heed
them
can
result
in
serious
injury
or
death.
DO
NOT
OPERATE
ANY
FUNCTION
THAT TAKES
YOUR
ATTENTION
AWAY
FROM
SAFELY
DRIVING
YOUR
VEHICLE.
Any
function
that
requires
your
prolonged
attention
should
only
be performed after coming
to
a
complete
stop.
Always
stop
the
vehicle
in a safe
location
before
performing
these functions.
Failure
to
do
so
may
result in
an
accident.
KEEP THE
VOLUME
AT
A
LEVEL WHERE
YOU
CAN STILL
HEAR
OUTSIDE NOISES WHILE
DRIVING.
Excessive
volume
levels
that
obscure sounds such
as
emergency
vehicle
sirens
or
road warning signals
(train
crossings, etc.) can be dangerous and may
result
in
an
accident.
LISTENING
AT
LOUD
VOLUME
LEVELS
IN
A
CAR
MAY
ALSO
CAUSE
HEARING
DAMAGE.
DO
NOT
DISASSEMBLE OR
ALTER.
Doing
so
may
result
in
an
accident, fire
or
electric
shock.
USE
THIS PRODUCT FOR
MOBILE
12V
APPLICATIONS.
Use
for
other
than its designed
application may
result in
fire,
electric
shock
or
other
injury.
USE THE CORRECT
AMPERE
RATING
WHEN
REPLACING
FUSES.
Failure
to
do
so
may result
in fire
or
electric
shock.
DO
NOT
BLOCK VENTS OR RADIATOR
PANELS.
Doing
so
may cause heat
to
build
up
inside and may result
in fire.
MAKE THE
CORRECT CONNECTIONS.
Failure
to
make
the
proper connections may
result in fire or
product
damage.
USE
ONLY IN CARS
WITH
A
12
VOLT NEGATIVE
GROUND.
(Check
with
your
dealer
if
you are
not
sure.)
Failure
to
do
so
may
result
in fire, etc.
BEFORE WIRING, DISCONNECT
THE
CABLE FROM
THE
NEGATIVE
BATTERY
TERMINAL.
Failure
to
do
so
may result
in
electric
shock
or
injury due
to
electrical
shorts.
DO
NOT
ALLOW CABLES
TO
BECOME
ENTANGLED
IN
SURROUNDING OBJECTS.
Arrange wiring and
cables
in
compliance
with
the
manual
to
prevent obstructions when driving.
Cables
or
wiring
that
obstruct or hang
up
on places
such
as
the
steering
wheel,
gear
lever,
brake
pedals,
etc. can be
extremely
hazardous.
DO
NOT
SPLICE
INTO
ELECTRICAL CABLES.
Never cut away
cable insulation
to
supply
power
to
other
equipment. Doing
so
will
exceed
the
current carrying
capacity
of
the wire and
result
in fire or
electric
shock.
DO
NOT
DAMAGE
PIPE OR
WIRING
WHEN
DRILLING
HOLES.
When
drilling holes in
the
chassis for
installation,
take
precautions
so
as
not
to
contact, damage
or
obstruct
pipes,
fuel lines, tanks
or
electrical
wiring. Failure
to
take
such precautions may
result in fire.
1-EN
