Alpine PDR-M65 - INSTALLATION

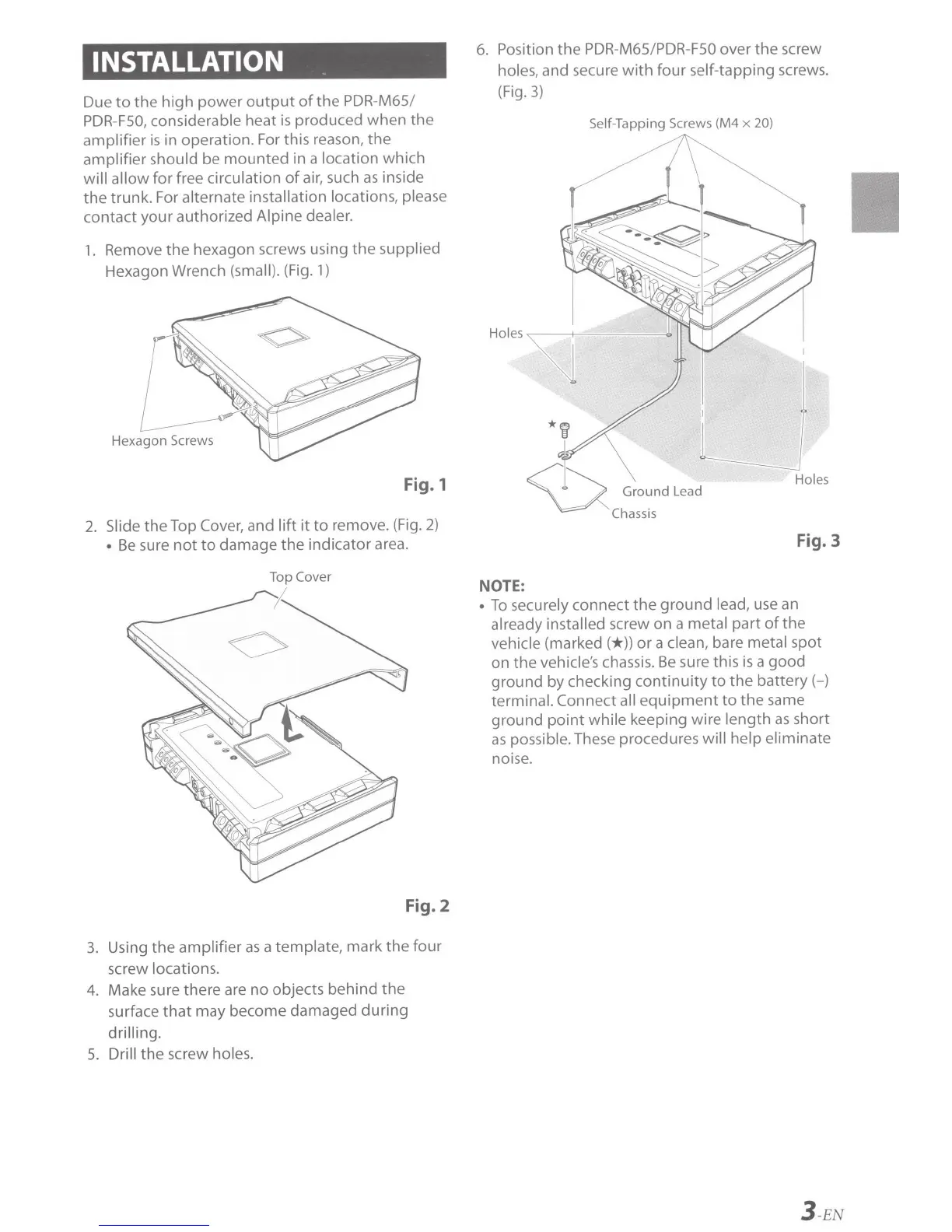

INSTALLATION
Due
to
the
high power
output
of
the
PDR-M65/
PDR-FSO,
considerable heat
is
produced when
the
amplifier
is
in
operation. For this reason, the
amplifier should be
mounted
in a location which
will allow
for
free circulation
of
air,
such
as
inside
the
trunk. For alternate installation locations, please
contact your authorized Alpine dealer.
1.
Remove
the
hexagon screws using
the
supplied
Hexagon Wrench (small).
(Fig.
1)
Fig. 1
2.
Slide
the
Top Cover, and
lift
it
to
remove. (Fig.
2)
•
Be
sure
not
to
damage
the
indicator area.
Fig. 2
3.
Using
the
amplifier
as
a template, mark
the
four
screw locations.
4.
Make sure there are no objects behind
the
surface
that
may become damaged
during
drilling.
5.
Drill
the
screw holes.
6.
Position
the
PDR-M65/PDR-FSO
over
the
screw
holes, and secure
with
four
self-tapping screws.
(Fig.
3)
NOTE:
Self-
Tapping
Screws
(M4
x
20)
~
Gcound
leod
Chassis
Holes
Fig.3
•
To
securely connect
the
ground
lead,
use
an
already installed screw on a metal
part
of
the
vehicle (marked
(*))or
a clean, bare metal spot
on
the
vehicle's chassis.
Be
sure this
is
a
good
ground by checking
continuity
to
the
battery
H
terminal. Connect all
equipment
to
the same
ground
point
while keeping wire length
as
short
as
possible. These procedures will help eliminate
noise.
3 -EN
