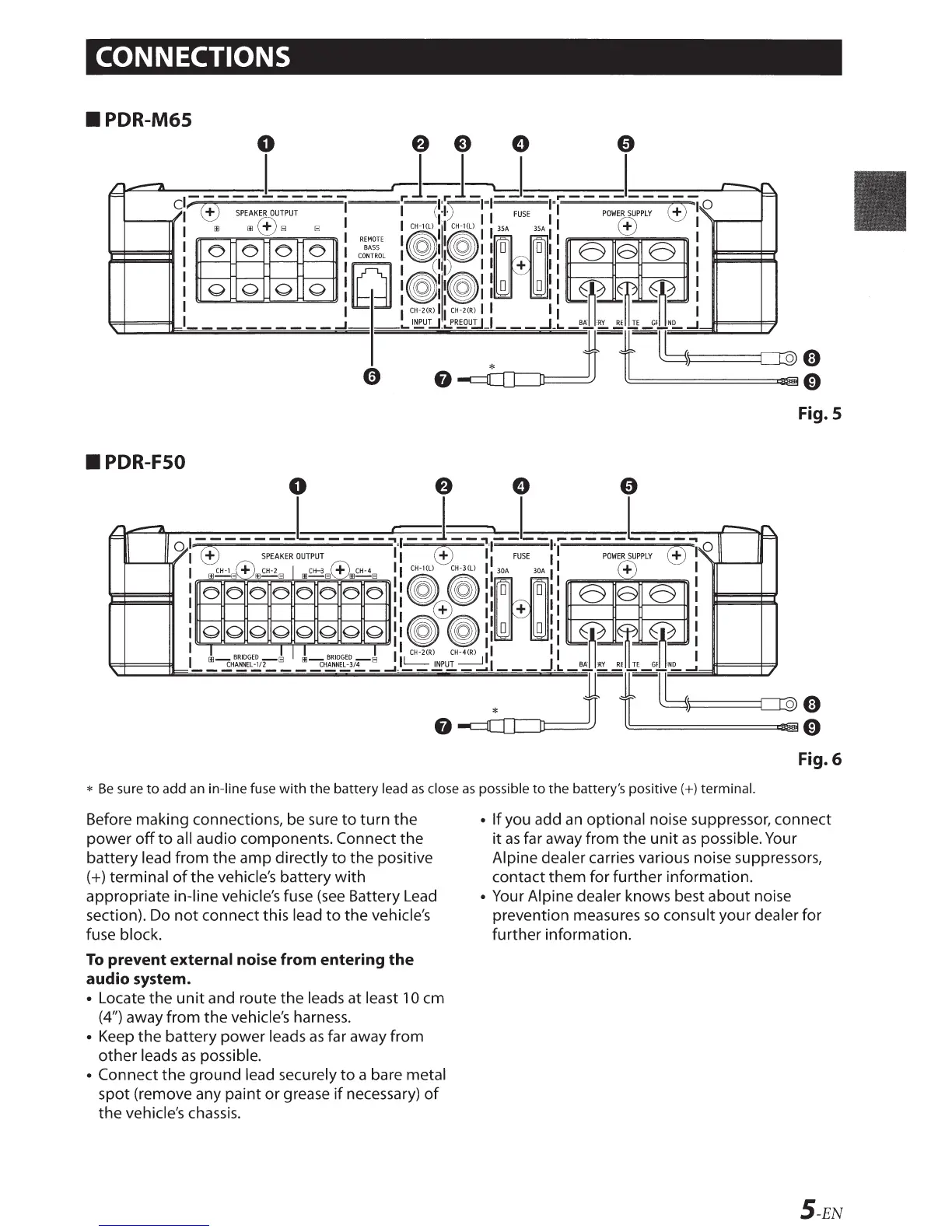

CONNECTIONS
.PDR-M65
Fig. 5
• PDR-FSO
Fig. 6
*
Be
sure
to
add
an
in-line fuse
with
the battery lead
as
close
as
possible
to
the battery's positive(+) terminal.
Before making connections, be sure
to
turn
the
power
off
to
all audio components. Connect
the
battery lead from
the
amp directly
to
the
positive
(+)terminal
of
the
vehicle's battery
with
appropriate in-line vehicle's fuse
(see
Battery
Lead
section). Do
not
connect this lead
to
the
vehicle's
fuse block.
To
prevent external noise from entering the
audio system.
• Locate
the
unit
and route
the
leads at least
10
em
(4") away from
the
vehicle's harness.
• Keep
the
battery power leads
as
far away from
other
leads
as
possible.
• Connect
the
ground lead securely
to
a bare metal
spot (remove any paint or grease
if
necessary)
of
the
vehicle's chassis.
•
If
you add
an
optional noise suppressor, connect
it
as
far away from
the
unit
as
possible. Your
Alpine dealer carries various noise suppressors,
contact
them
for
further
information.
• Your Alpine dealer knows best
about
noise
prevention measures
so
consult your dealer for
further information.
