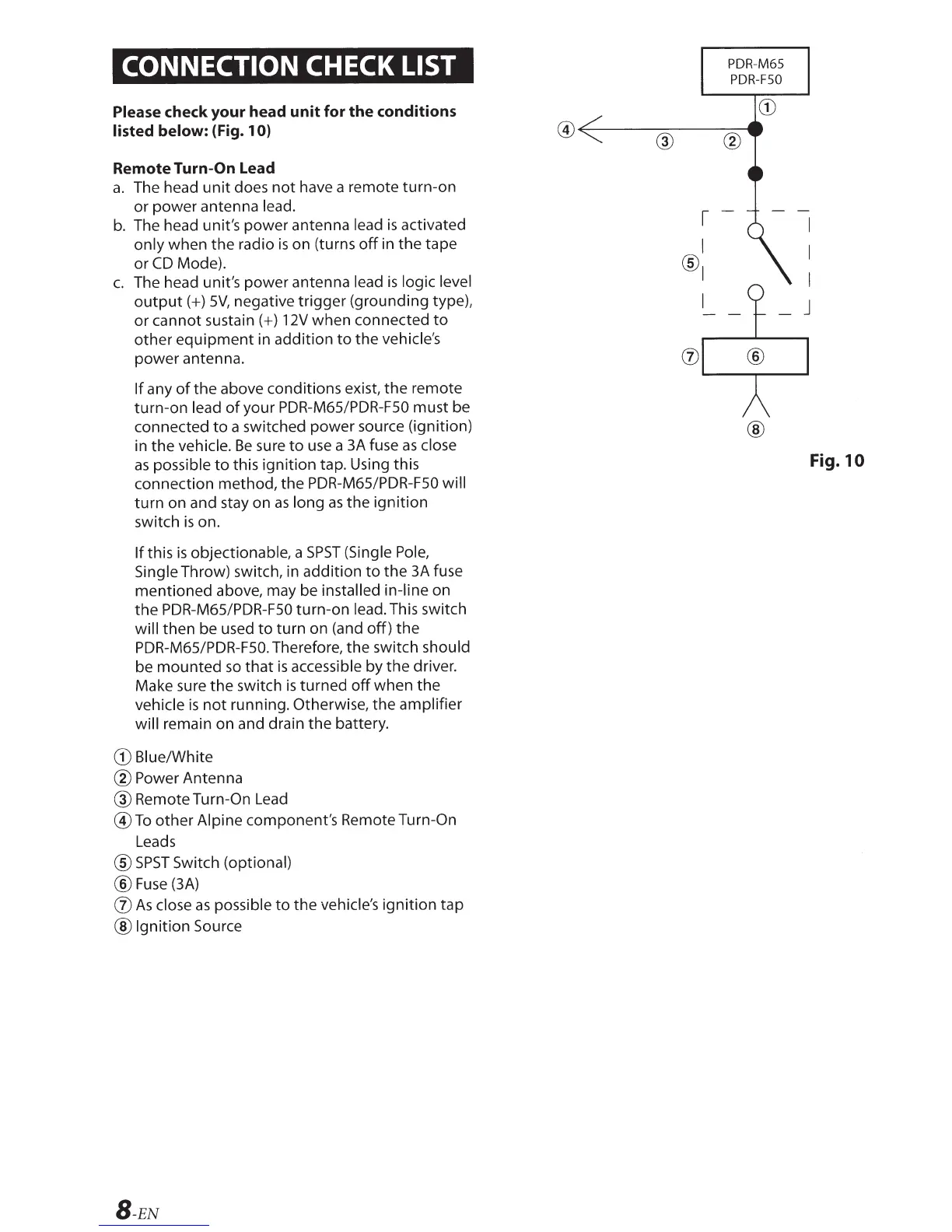

CONNECTION
CHECK
LIST
Please
check your head
unit
for the conditions
listed below:
(Fig. 1
0)
Remote Turn-On Lead
a.
The head
unit
does
not
have a remote turn-on
or power antenna
lead.
b.
The head unit's power antenna
lead
is
activated
only
when the radio
is
on (turns
off
in the tape
or
CD
Mode).
c.
The head unit's power antenna
lead
is
logic level
output(+)
SV,
negative trigger (grounding type),
or cannot sustain(+) 12V when connected
to
other
equipment
in addition
to
the
vehicle's
power antenna.
If
any
of
the above conditions exist, the remote
turn-on
lead
of
your
PDR-M65/PDR-FSO
must be
connected
to
a switched power source (ignition)
in the
vehicle.
Be
sure
to
use
a
3A
fuse
as
close
as
possible
to
this ignition tap. Using this
connection method, the
PDR-M65/PDR-FSO
will
turn on and stay on
as
long
as
the ignition
switch
is
on.
If this
is
objectionable, a
SPST
(Single
Pole,
Single
Throw) switch, in addition
to
the
3A
fuse
mentioned above, may be
installed in-line
on
the
PDR-M65/PDR-FSO
turn-on
lead.
This switch
will
then be used
to
turn on (and off) the
PDR-M65/PDR-FSO.
Therefore, the switch
should
be mounted
so
that
is
accessible by the driver.
Make sure the switch
is
turned
off
when the
vehicle
is
not
running. Otherwise, the
amplifier
will
remain on and drain the battery.
CD
Blue/White
®
Power Antenna
@Remote
Turn-On
Lead
QD
To
other Alpine
component's Remote
Turn-On
Leads
@
SPST
Switch
(optional)
®Fuse
(3A)
(j)
As
close
as
possible
to
the
vehicle's
ignition tap
®Ignition
Source
B-EN
PDR-M65
PDR-FSO
CD
GV~-------------4-
® ®
®
I
J
Fig.
10
