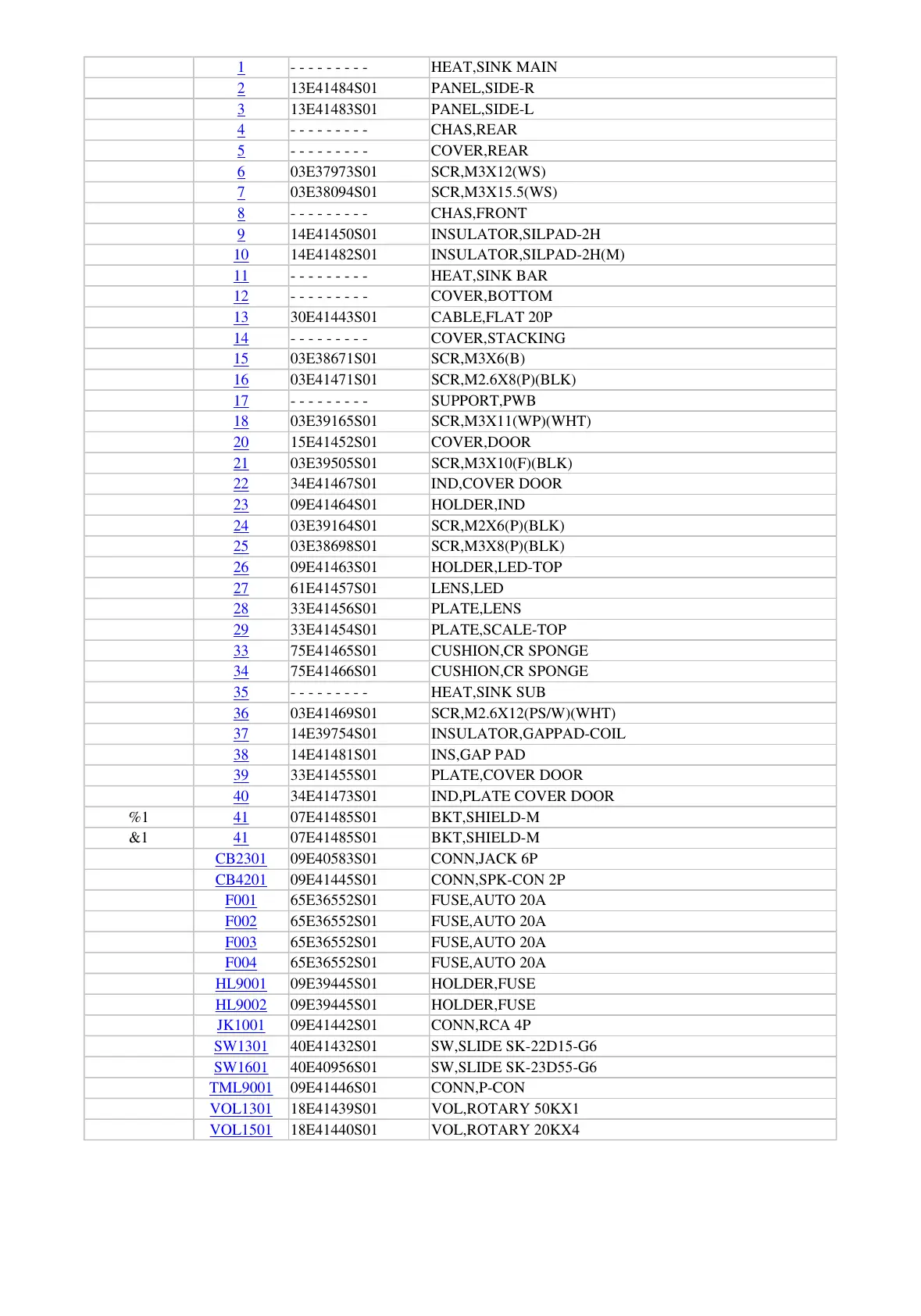

Alpine PDX-M6 - Page 38

1 - - - - - - - - - HEAT,SINK MAIN
2
13E41484S01 PANEL,SIDE-R
3
13E41483S01 PANEL,SIDE-L
4
- - - - - - - - - CHAS,REAR
5
- - - - - - - - - COVER,REAR
6
03E37973S01 SCR,M3X12(WS)
7
03E38094S01 SCR,M3X15.5(WS)
8
- - - - - - - - - CHAS,FRONT
9
14E41450S01 INSULATOR,SILPAD-2H
10
14E41482S01 INSULATOR,SILPAD-2H(M)
11
- - - - - - - - - HEAT,SINK BAR
12
- - - - - - - - - COVER,BOTTOM
13
30E41443S01 CABLE,FLAT 20P
14
- - - - - - - - - COVER,STACKING
15
03E38671S01 SCR,M3X6(B)
16
03E41471S01 SCR,M2.6X8(P)(BLK)
17
- - - - - - - - - SUPPORT,PWB
18
03E39165S01 SCR,M3X11(WP)(WHT)
20
15E41452S01 COVER,DOOR
21
03E39505S01 SCR,M3X10(F)(BLK)
22
34E41467S01 IND,COVER DOOR
23
09E41464S01 HOLDER,IND
24
03E39164S01 SCR,M2X6(P)(BLK)
25
03E38698S01 SCR,M3X8(P)(BLK)
26
09E41463S01 HOLDER,LED-TOP
27
61E41457S01 LENS,LED
28
33E41456S01 PLATE,LENS
29
33E41454S01 PLATE,SCALE-TOP
33
75E41465S01 CUSHION,CR SPONGE
34
75E41466S01 CUSHION,CR SPONGE
35
- - - - - - - - - HEAT,SINK SUB
36
03E41469S01 SCR,M2.6X12(PS/W)(WHT)
37
14E39754S01 INSULATOR,GAPPAD-COIL
38
14E41481S01 INS,GAP PAD
39
33E41455S01 PLATE,COVER DOOR
40
34E41473S01 IND,PLATE COVER DOOR
%1 41
07E41485S01 BKT,SHIELD-M
&1 41
07E41485S01 BKT,SHIELD-M
CB2301
09E40583S01 CONN,JACK 6P
CB4201
09E41445S01 CONN,SPK-CON 2P
F001
65E36552S01 FUSE,AUTO 20A
F002
65E36552S01 FUSE,AUTO 20A
F003
65E36552S01 FUSE,AUTO 20A
F004
65E36552S01 FUSE,AUTO 20A
HL9001
09E39445S01 HOLDER,FUSE
HL9002
09E39445S01 HOLDER,FUSE
JK1001
09E41442S01 CONN,RCA 4P
SW1301
40E41432S01 SW,SLIDE SK-22D15-G6
SW1601
40E40956S01 SW,SLIDE SK-23D55-G6
TML9001
09E41446S01 CONN,P-CON
VOL1301
18E41439S01 VOL,ROTARY 50KX1
VOL1501
18E41440S01 VOL,ROTARY 20KX4
