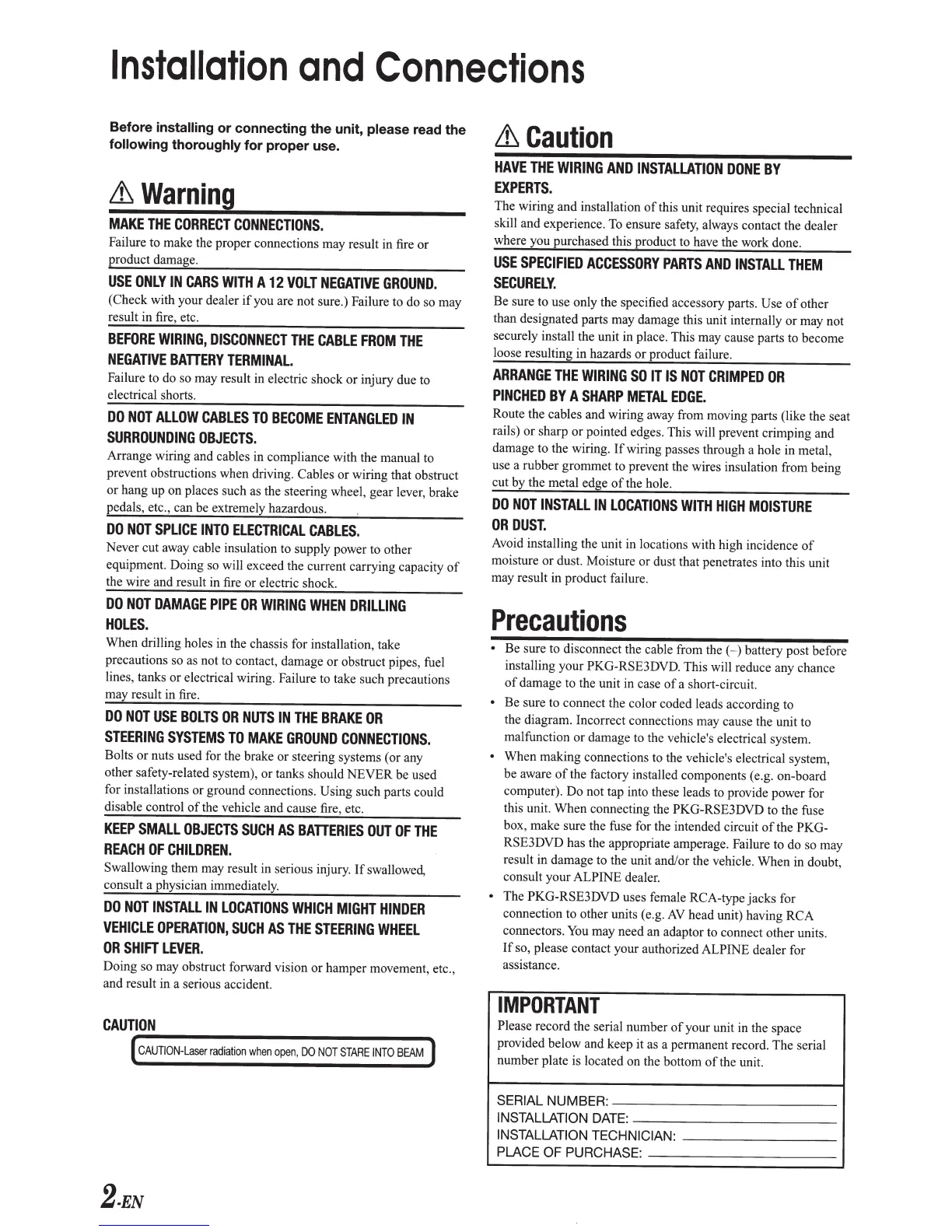

Installation
and
Connections
Before
installing
or connecting
the
unit,
please read the
following thoroughly
for proper use.
it
Warning
MAKE
THE
CORRECT
CONNECTIONS.
Failure to make the proper connections may result in fire or
product damage.
USE
ONLY
IN
CARS
WITH
A
12
VOLT
NEGATIVE
GROUND.
(Check
with your dealer
if
you are not sure.) Failure to do so may
result in fire, etc.
BEFORE
WIRING,
DISCONNECT
THE
CABLE
FROM
THE
NEGATIVE
BATTERY
TERMINAL
Failure to do so may result in electric shock
or
injury due to
electrical shorts.
DO
NOT
ALLOW
CABLES
TO
BECOME
ENTANGLED
IN
SURROUNDING
OBJECTS.
Arrange wiring and cables in compliance with the manual to
prevent obstructions when driving. Cables
or wiring that obstruct
or hang up on places such as the steering wheel, gear lever, brake
pedals, etc., can be extremely hazardous.
DO
NOT
SPLICE
INTO
ELECTRICAL
CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity
of
the wire and result in fire
or
electric shock.
DO
NOT
DAMAGE
PIPE
OR
WIRING
WHEN
DRILLING
HOLES.
When drilling holes
in
the chassis for installation, take
pr
ecautions so as not to contact, damage
or
obstruct pipes, fuel
lines, tanks or electrical wiring. Failure to take such precautions
may result
in
fire.
DO
NOT
USE
BOLTS
OR
NUTS
IN
THE
BRAKE
OR
STEERING
SYSTEMS
TO
MAKE
GROUND
CONNECTIONS.
Bolts
or
nuts used for the brake
or
steering systems
(or
any
other safety-related system), or tanks should
NEVER
be used
for installations or ground connections. Using such parts could
disable control
of
the vehicle and cause fire, etc.
KEEP
SMALL
OBJECTS
SUCH
AS
BATTERIES
OUT
OF
THE
REACH
OF
CHILDREN.
Swallowing them may result in serious injury.
If
swallowed,
consult a physician immediately.
DO
NOT
INSTALL
IN
LOCATIONS
WHICH
MIGHT
HINDER
VEHICLE
OPERATION,
SUCH
AS
THE
STEERING
WHEEL
OR
SHIFT
LEVER.
Doing so may obstruct forward vision or hamper movement, etc.,
and result in a serious accident.
CAUTION
,---------------------------~
CAUTION
-
Las
er
radiation
when
open,
DO
NOT
STARE
INTO
BEAM
2-EN
&
Caution
HAVE
THE
WIRING
AND
INSTALLATION
DONE
BY
EXPERTS.
The wiring and installation
of
this unit requires special technical
skill
and
experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE
SPECIFIED
ACCESSORY
PARTS
AND
INSTALL
THEM
SECURELY.
Be sure to use only the specified accessory parts.
Use
of
other
than designated parts may damage this unit internally
or
may not
securely install the unit in place. This may cause parts to become
loose resulti
ng
in
hazards
or
product failure.
ARRANGE
THE
WIRING
SO
IT
IS
NOT
CRIMPED
OR
PINCHED
BY
A
SHARP
METAL
EDGE.
Route the cables and wiring away from moving parts (like the seat
rails)
or
sharp
or
pointed edges. This will prevent crimping
and
damage to the wiring.
If
wiring passes through a hole in metal,
use a rubber grommet to prevent the wires insulation from being
cut by the metal edge
of
the hole.
DO
NOT
INSTALL
IN
LOCATIONS
WITH
HIGH
MOISTURE
OR
DUST.
Avoid installing the unit in locations with high incidence
of
moisture or dust. Moisture
or
dust that penetrates into this unit
may result in product failure.
Precautions
• Be sure to disconnect the cable from the (- ) battery post before
installing your PKG-RSE3DVD. This will reduce any chance
of
damage to the unit in case
of
a short-circuit.
• Be sure to connect the color coded leads according to
the diagram. Incorrect connections may cause the unit to
malfunc
tion or damage to the vehicle's electrical system.
•
When making connections to the vehicle's electrical system,
be aware
of
the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for
this unit. When connecting the PKG-RSE3DVD to the fuse
box, make sure the fuse for the intended circuit
of
the
PKG-
RSE3DVD has the appropriate amperage. Failure to do so may
result in damage to the unit and/or the vehicle. When in doubt,
consult your ALPINE
dealer.
•
Th
e PKG-RSE3DVD uses female
RCA-type
jacks for
connection to other units (e.g.
AV
head unit) having
RCA
connectors.
You
may need an adaptor to connect other units.
If
so, please contact your authorized ALPINE
dealer for
assistance.
IMPORTANT
Please
record the serial number
of
y
our
unit in the space
provided below and keep it as a permanent record. The serial
number plate is lo
ca
ted on the bottom
of
the unit.
SERIAL
NUMBER:
----
----
- - - -
INSTALLATION
DATE:---------
--
INSTALLATION
TECHNICIAN:
--------
PLACE
OF
PURCHASE
:
--
---
--
-
--
