4-EN
Speaker Output Terminals
Connect the Speaker Output Lead (+) / (–) using
the Hexagon hole screw of the Speaker Output
Terminals ( ).
• For details on how to connect, see “Cautions
on wire lead connections” (page 6).
Be sure to observe correct speaker output
connections and polarity in relation to the other
speakers in the system. Connect the positive
output to the positive speaker terminal and the
negative to negative.
About Subwoofer Input/Output (R2-A75M
only)
• The input is stereo but the output is monaural.
• Reversing subwoofer polarity (swapping
positive and negative connections to the
subwoofer) may be desirable in some
installations for optimum bass performance.
About Bridged Connections (R2-A60F only)
In the bridged mode, connect the left positive to
the positive terminal of the speaker and the
right negative to the negative terminal of the
speaker. Do not use the speaker (–) terminals as
a common lead between the left and right
channels.
NOTE:
• Do not connect the speaker (–) terminal to the
vehicle’s chassis.
Remote Bass Control (optional) (R2-A75M
only)
CH-3/4 Remote Level Control (optional)
(R2-A60F only)
Connect the Remote Bass Control Unit
RUX-KNOB.2 (sold separately) to adjust the
output level remotely. This is not to replace
appropriate gain level setting between the
amplifier and head unit.
Pre-Out Jacks (R2-A75M only)
These jacks provide a line level output. This is an
ideal output for driving a second subwoofer
amp. This output is full-range, and is not affected
by the crossover.
RCA Input Jacks
Connect these jacks to the line out leads on your
head unit using RCA extension cables or
Speaker-RCA Conversion cable (sold separately).
Be sure to observe correct channel connections;
Left to Left and Right to Right.
Fuse
R2-A75M.............................................................40 A × 2
R2-A60F............................................................... 30 A × 2
USE THE CORRECT AMPERE RATING WHEN
REPLACING FUSES.
Failure to do so may result in fire or electric
shock.

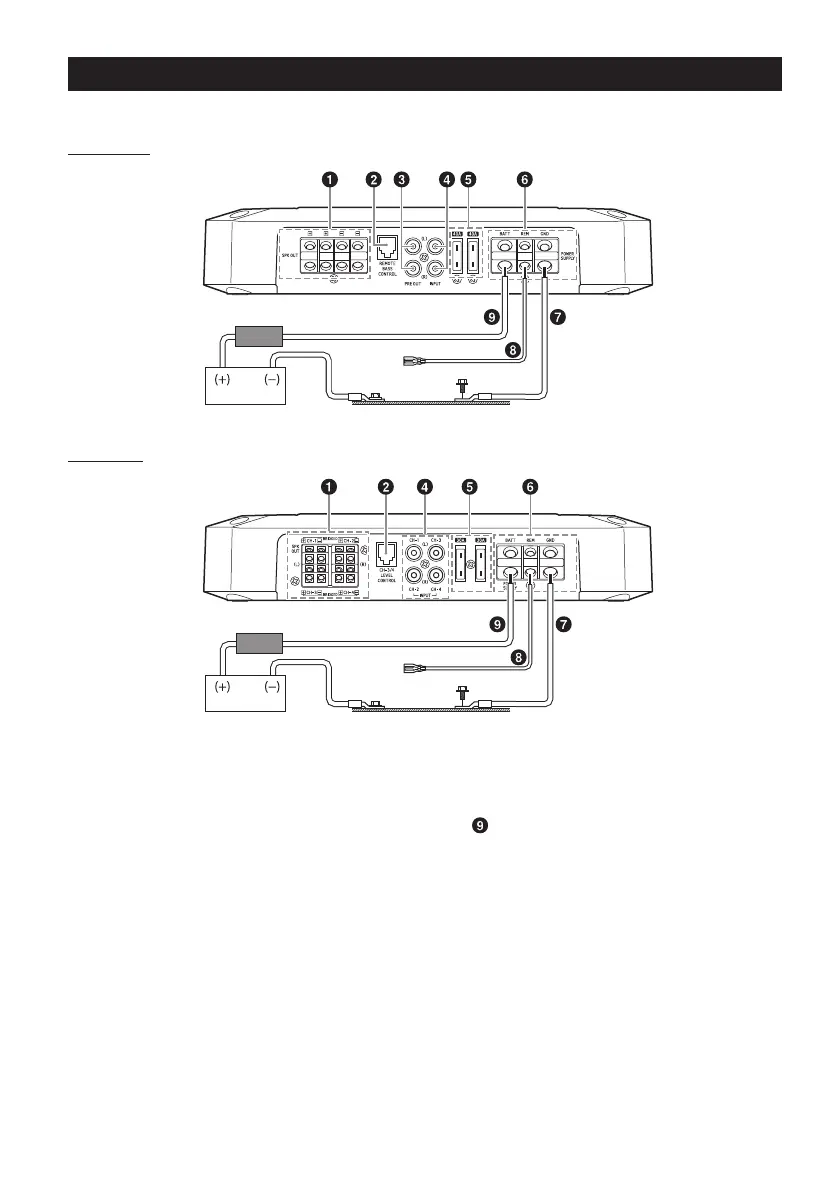

CONNECTIONS
Before making connections, be sure to turn the power off to all audio components.
R2-A75M
*
3, 4
*
1
Vehicle’s chassisVehicle’s battery
External Fuse*
2
R2-A60F
*
3, 4
*
1
Vehicle’s chassisVehicle’s battery
External Fuse*
2
*1 For details on the wires size to be used, refer to the supplied “Cautions on Power Supply Wires Connection” and
“Cautions on Power Supply Wires” (page 20), and then use the wire of the specified size.
*2 Be sure to add an External Fuse (e.g. Fuse Block, Circuit Breaker) with the battery lead as close as possible to the
battery’s positive (+) terminal. Add an external fuse with the same capacity, or a slightly larger capacity, as the sum total
of the fuse capacities of the amplifier.
For details on the fuse capacity of this machine, see “Battery Lead (
)” (page 5).
*3 Connect all equipment to the same ground point while keeping wire length as short as possible.
*4 To securely connect the ground lead, use an already installed screw.
To prevent external noise from entering the audio system
• Locate the unit and route the leads at least 10 cm (4”) away from the vehicle’s harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint or grease if necessary) of the
vehicle’s chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine
dealer carries various noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further
information.
