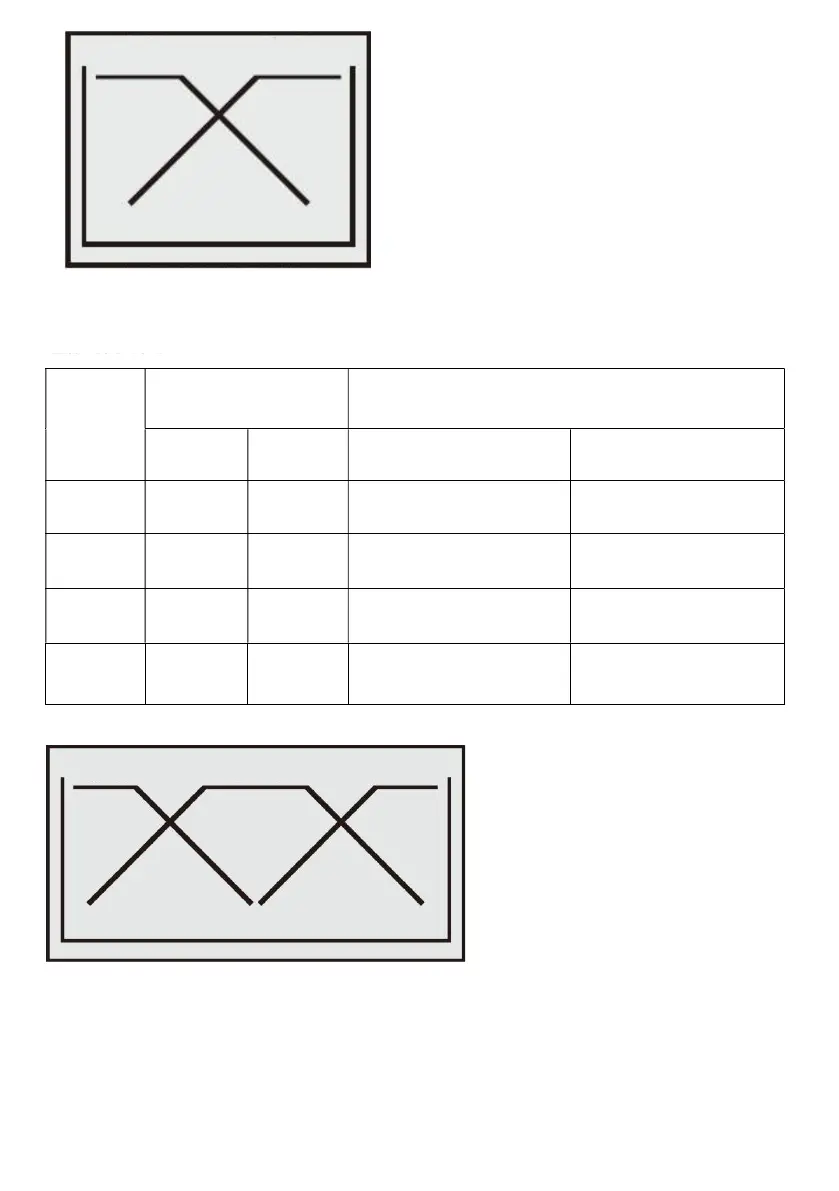

Active 3-way crossover frequency
Cut-off frequency
(1/3 octave difference)
Slope
High-pass filter
(HPF)
Low-pass filter
(LPF)
High-pass filter
(HPF)
Low-pass filter
(LPF)
Subwoofer
----- 20Hz-800Hz ----- 6/12/18/24/30/36/42/48dB/oct.
Midrange
High-Pass
Speaker
20Hz-800Hz 20Hz-20kHz 6/12/18/24/30/36/42/48dB/oct. 6/12/18/24/30/36/42/48dB/oct.
Midrange Low-
Pass Speaker
20Hz-800Hz 20Hz-20kHz 6/12/18/24/30/36/42/48dB/oct. 6/12/18/24/30/36/42/48dB/oct.
High-pitch
Speaker
1kHz-20kHz ------ 6/12/18/24/30/36/42/48dB/oct. ------
(Different from actual display)
Low frequency High frequenc y
Low frequency range
High frequency range
(Different from actual display)
Intermediate frequency range
