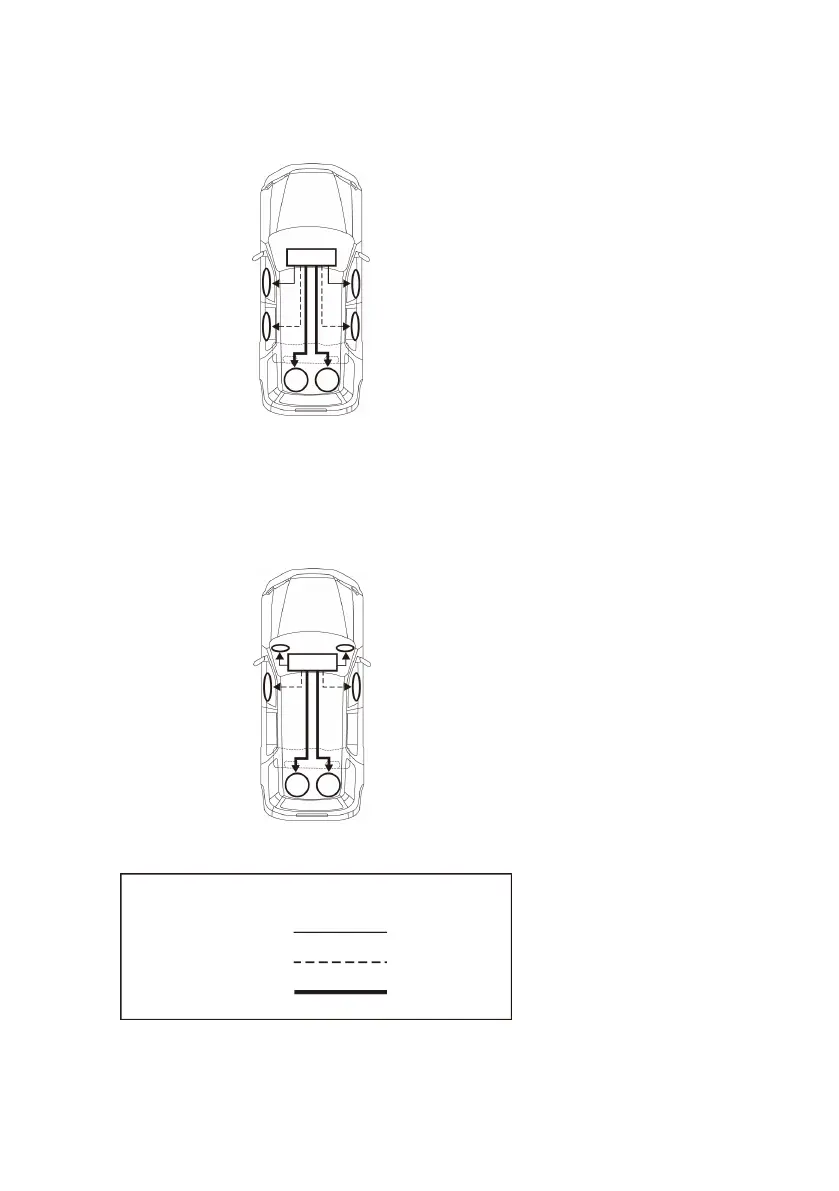

About active crossover modes
The frequency range is output in such a way that the high frequency belongs to the front/rear spe akers,
and the low frequency belongs to the mid-woofer.
Active 2-way crossover mode
-
c
The frequency range is output in a way that the high/mid frequencies belong to the front speakers, and
the low frequencies belong to the subwoofer.
Active 3 way crossover mode
Front (high freque ncy) speaker
Rear (high frequency) speaker
Subwoofer
Front (high frequency)
speaker
Rear (high frequency)
speaker
Subwoofer
High-pitch speaker
High-pitch speaker
Intermediat e speaker
Subwoofer
Subwoofer
Media Player output:
Front
output
After
Intermediat e speaker
output
Note:
 When set to active 3-way mode, the "front/back balance" output cannot be adjusted.
