108-EN
01GB07INE-W957A.fm
ALPINE INE-W957A 68-24567Z47-A (EN)

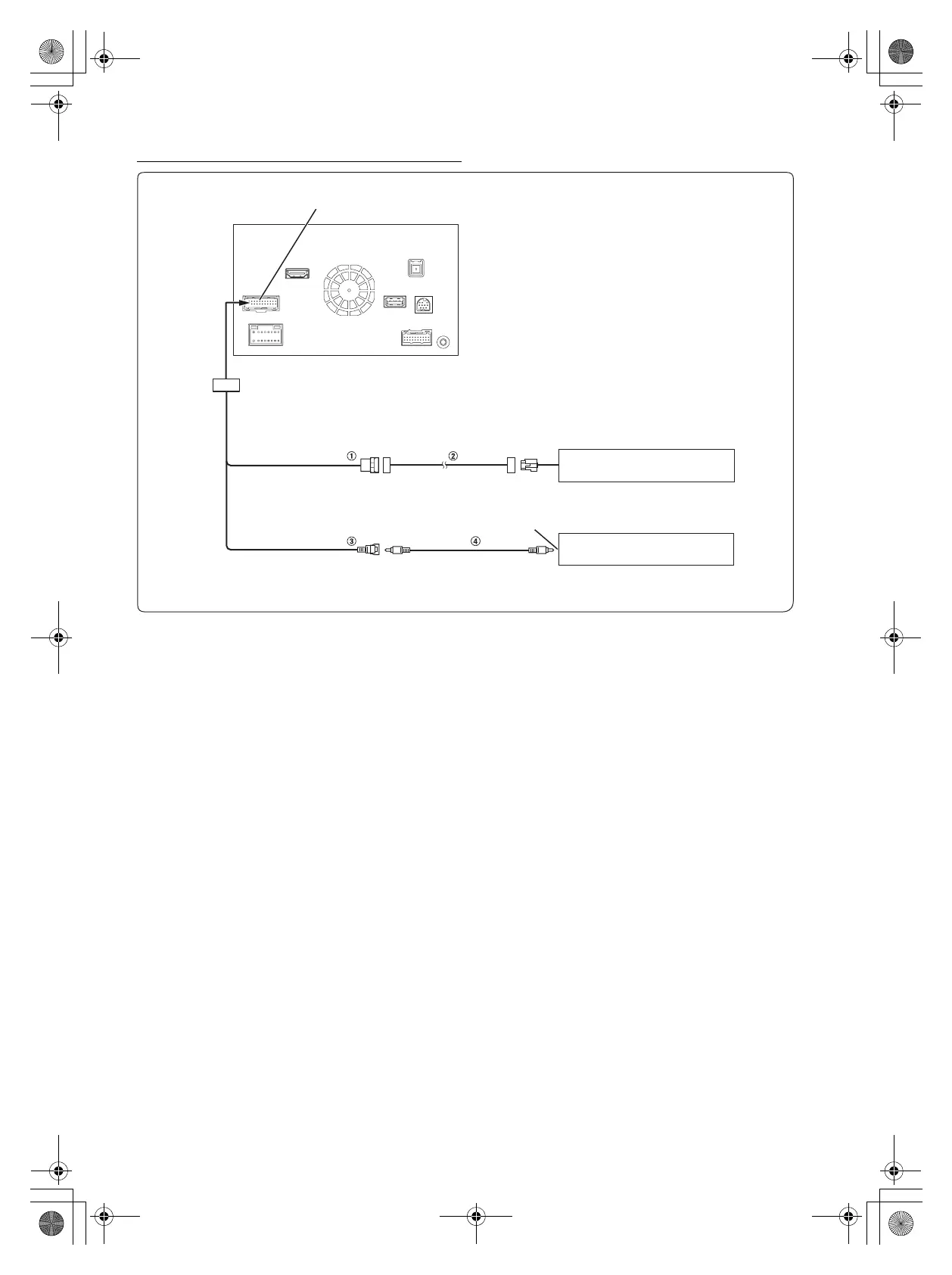

Connection of cameras (Direct camera and AUX camera)
1 Direct CAMERA Input Connector
2 Camera extension cable (Included with direct
rearview camera)
3 CAMERA Input RCA Connector
• It’s better to connect the AUX Camera’s power cable to ACC.
Otherwise the (AUX) camera’s image will not be displayed by
touching (AUX) camera button on My Favourite screen. (page 20)
4 RCA Extension Cable (sold separately)
CAMERA/W.REMOTE Connector
CAMERA 1
CAMERA 2
Direct rearview camera (sold
separately)
Camera with RCA video output (sold
separately)
To Video Output terminal
HCE-C117D, etc.
01GB00INE-W957A.book Page 108 Monday, April 21, 2014 7:49 PM
To Next Page
