Ford F-150
FULL SIZE TRUCK 9/12
Installation Instructions

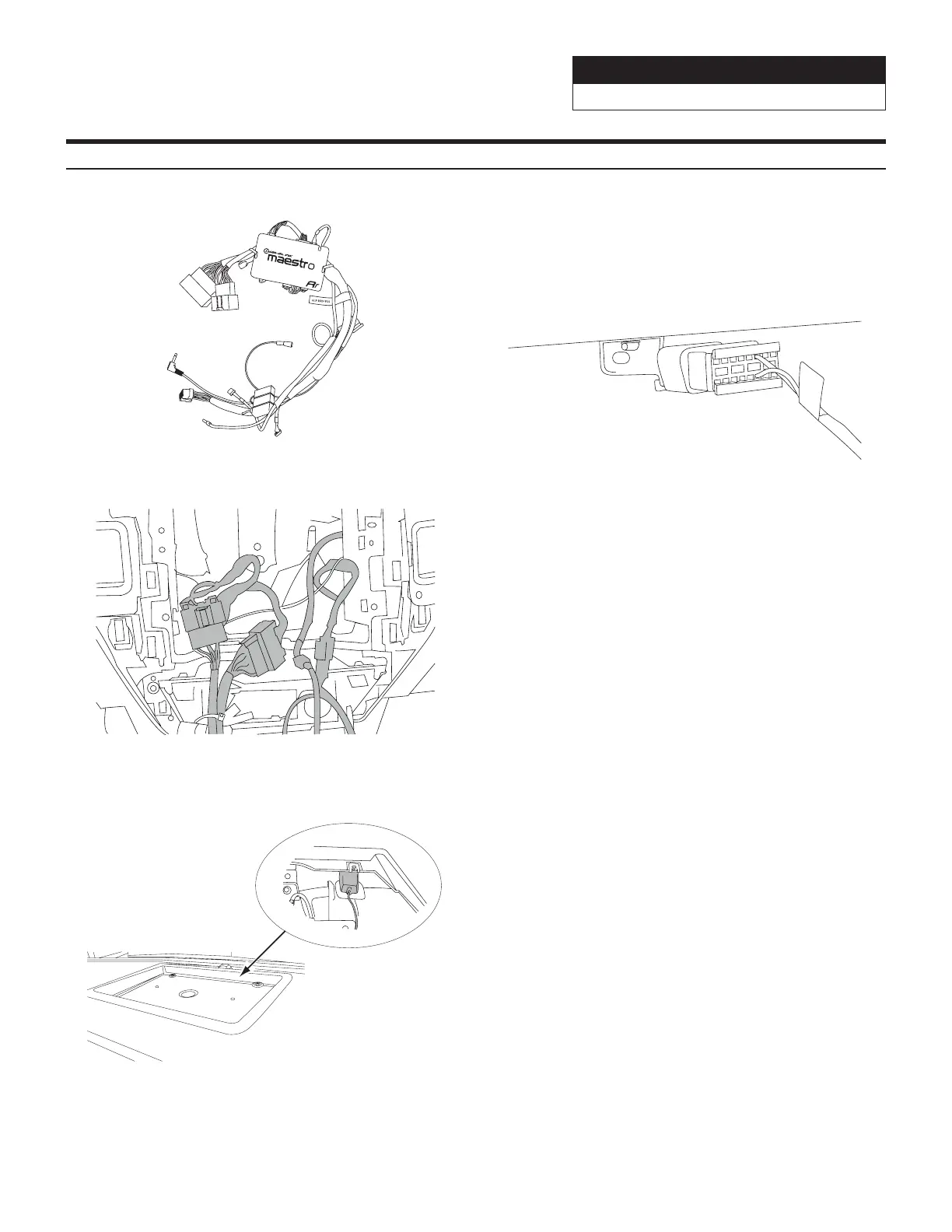

1 Attach the Maestro module to the X009-FD2 main
harness.
2 Connect and secure the main harness, antenna
adapter and HVAC connector to the factory
harness.
3 Remove rubber screw cover from the center dash
plate and extract 2 x 7 mm screws. Place GPS
antenna as illustrated and feed the cable down to
the radio cavity.
4 Plug the OBDII cap on to the OBDII port below the
driver side dash and run the extension to the radio
cavity.
