Ford F-150
FULL SIZE TRUCK  10/12

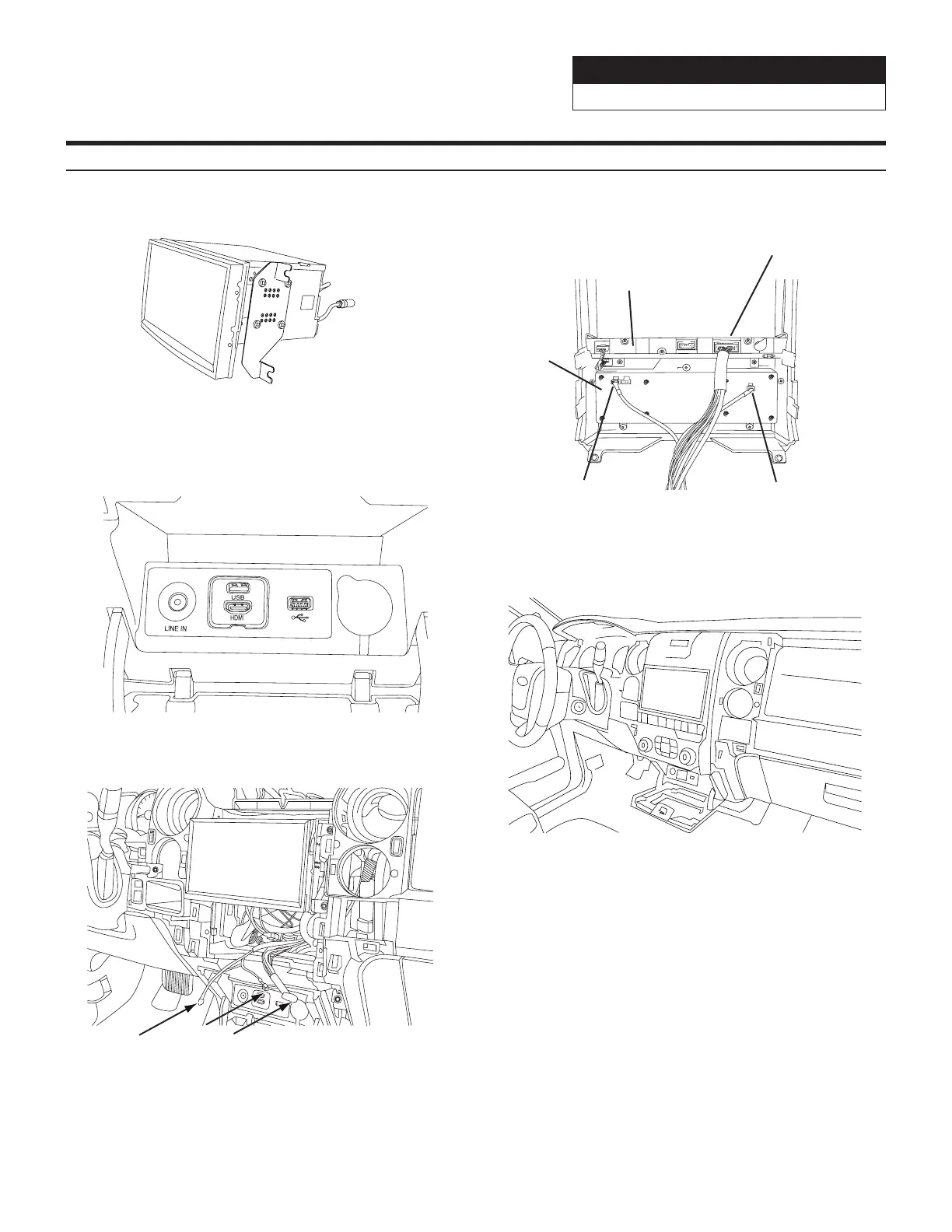

Installation Instructions
1 Attach the brackets using the provided screws.
2 Replace the OEM Sync media plate with the new
media plate and run the extension cable to the radio
cavity.
3 Run the Key harness, 4 pin HVAC-Maestro cable
and 3 pin HVAC connector under the head unit and
mount it using 4 x 7mm factory screws.
4 Connect the key harness, 4 pin HVAC-Maestro
cable and 3 pin HVAC connector to X009-FD2 radio
bezel.
5 Mount X009-FD2 radio bezel using 4 x 7mm factory
screws.
4 pin HVAC-Maestro
cable (Red) (Connect to
Maestro Module)
3 pin HVAC Cable
(White) (Connect to
Vehicle)
HVAC
Control
Unit
Key Harness
Key Unit
(Connect to
X009)
