ACCESSORIES ON REQUEST: see brochure .
There are also available other accessories, short or long type (insulated) for all several needs (dermatology, gynaecology, otolaryngology, dentistry, and so on) -
see brochure. And also:
RB - Adapter cable for Lejeune bipolar use.
STOP/SALA - Pneumatic pedal switch with long cable and lateral support for use in the operating theatre.

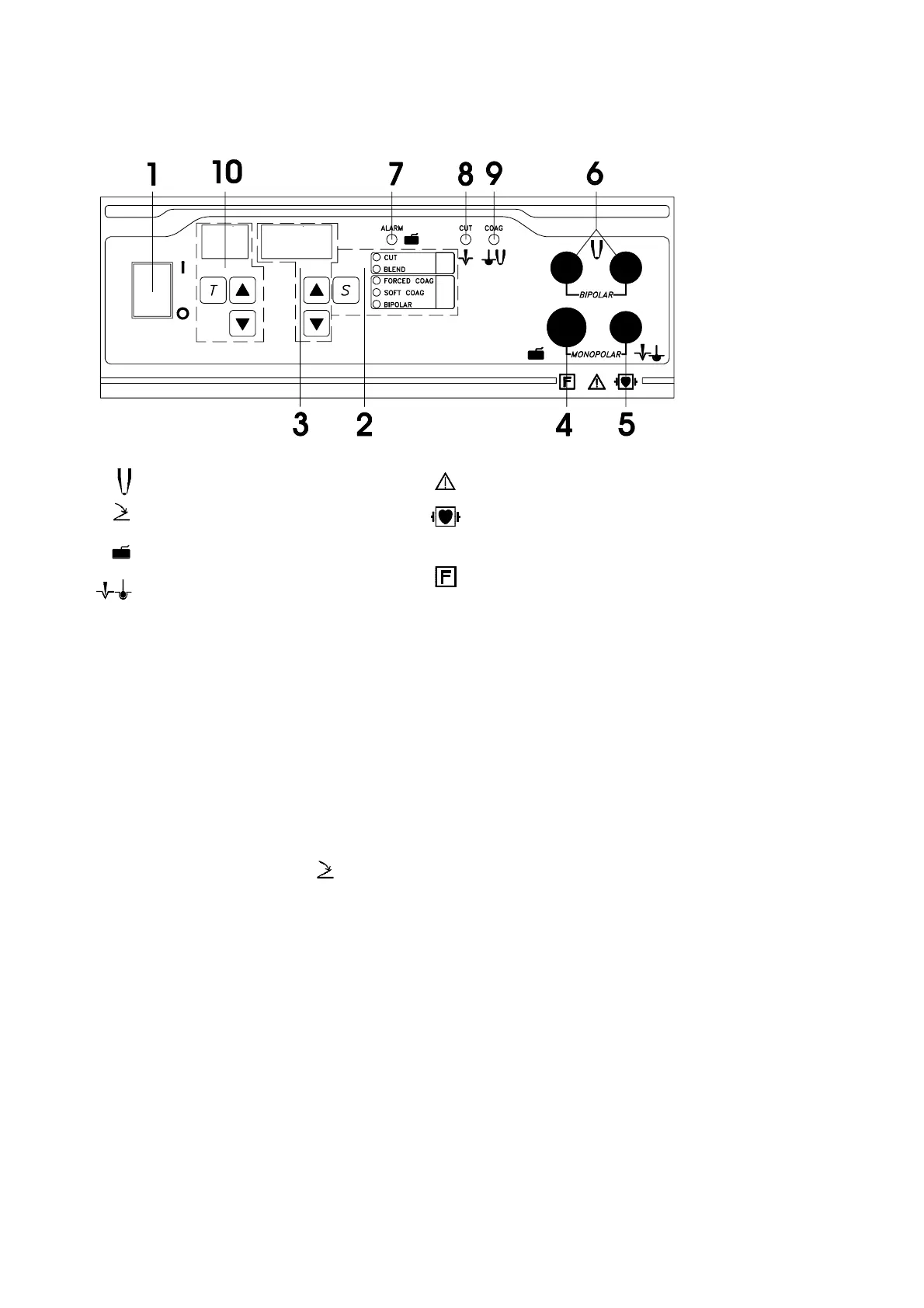

CONTROLS
1) Mains switch
2) Function selection (by pushing button S)
CUT-pure cut
BLEND-blend cut
FORCED COAG-spray coagulation
SOFT COAG-coagulation
BIPOLAR-bipolar coagulation
3) Powers adjusting
4) Neutral electrode connection
5) Active electrode connection
6) Bipolar electrode connection
7) Warning light of neutral electrode alarm (red)
8) Warning light cut and blend cut power delivery (yellow)
9) Warning light coagulation: forced, soft, bipolar (blue).
10) Controls for automatic timer (only for mod.MB1/A MC)
On the back: socket for connection pedal switch and socket for the supply cable with fuses-holder
TECHNICAL DATA
* Electronic generator complying with Standards CEI EN 60601-2-2 (IEC 601-2-2 ed. 1991)
* Monopolar and bipolar Work frequency: 475 kHz.
* Classification: I type CF-Output circuit ‘floating out’ isolated from ground at high and low frequencies.
* Mains supply, absorption and mains fuses: see data on the back plate.
* Running by pedal switch with acoustic signals and warning lights.
* Neutral electrode safety circuit with alarm acoustic signal and warning light
* Power adjusting: by push-buttons , shown on display in percent scale.
* Protection against liquid access: usual, cabinet not protected.
* Convection cooling, without fan - not continued running 10s ON/30s OFF.
* Running checking circuit - by microprocessor.
* Dimensions and weight: cm. 31x28x11 - Kg. 7.8.
* Timer circuit (adjustable from 1 to 99/100 of sec.) at double mode: simple pulses or continuous impulsed
(only for mod.MB1A-MC)
POWERS, IDLING Vpp AND PEAK VALUES
Cut: 150 WRMS at 500 ohm (Vpp 956, cf 1.83)
Blend: 140 WRMS at 500 ohm (Vpp 1519, cf 3.02)
Forced coag: 70 WRMS at 500 ohm (Vpp 3000, cf 7.04)
Soft coag: 140 WRMS at 500 ohm (Vpp 1200, cf 2.54)
Bipolar: 60 WRMS at 100 ohm (Vpp 296, cf 1.55).
Pedal switch
Bipolar electrode
Neutral electrode
Active electrode
Attention please, read the manual
Unit included in the Classification I type CF, protected
against defibrillator effects. An apparatus included in such
classification has an high degree of protection against direct
and indirect contacts, particularly as concerns admissible
leakage currents and with an applied part type F (floating out)
isolated from the ground.
This type of unit is specific for direct cardiosurgery
application.
