PROFESSIONAL POWER AMPLIFIERS ADVANTAGE SERIES
Save the original packing, you could use if you need to transport the power amplifier. NEVER
SHIP THE POWER AMPLIFIER WITHOUT IT'S ORIGINAL PACKING.
MOUNTING
It is always advisable to mount the power amplifiers in rack, either for mobile or fixed
installations, for protection, safety, aesthetics, etc.
The ADVANTAGE series power amplifiers are designed for standard 19" rack mounting, and
occupy 2u high rack space.
Due to the weight of the unit, it should be securely fastened at the front and the back of the
cabinet. If the racks are carriage ones, it is advisable that have trays in order to allow the power
amplifier to rest on its base and in an elastic cradle, if possible. It is advisable, leave a separation
space between amplifiers and other units in order to facilitate its cooling, upon mounting the
amplifier in a rack.
In the mounting, either fixed or in rack, the cooling vents placed in the front and rear panel
should be free, so that the air circulates freely, and the amplifier could have a better heat
dissipation. In the same way, make sure that there are no heat sources near the front cooling vent,
because the fan exhaust cool air through this vent.

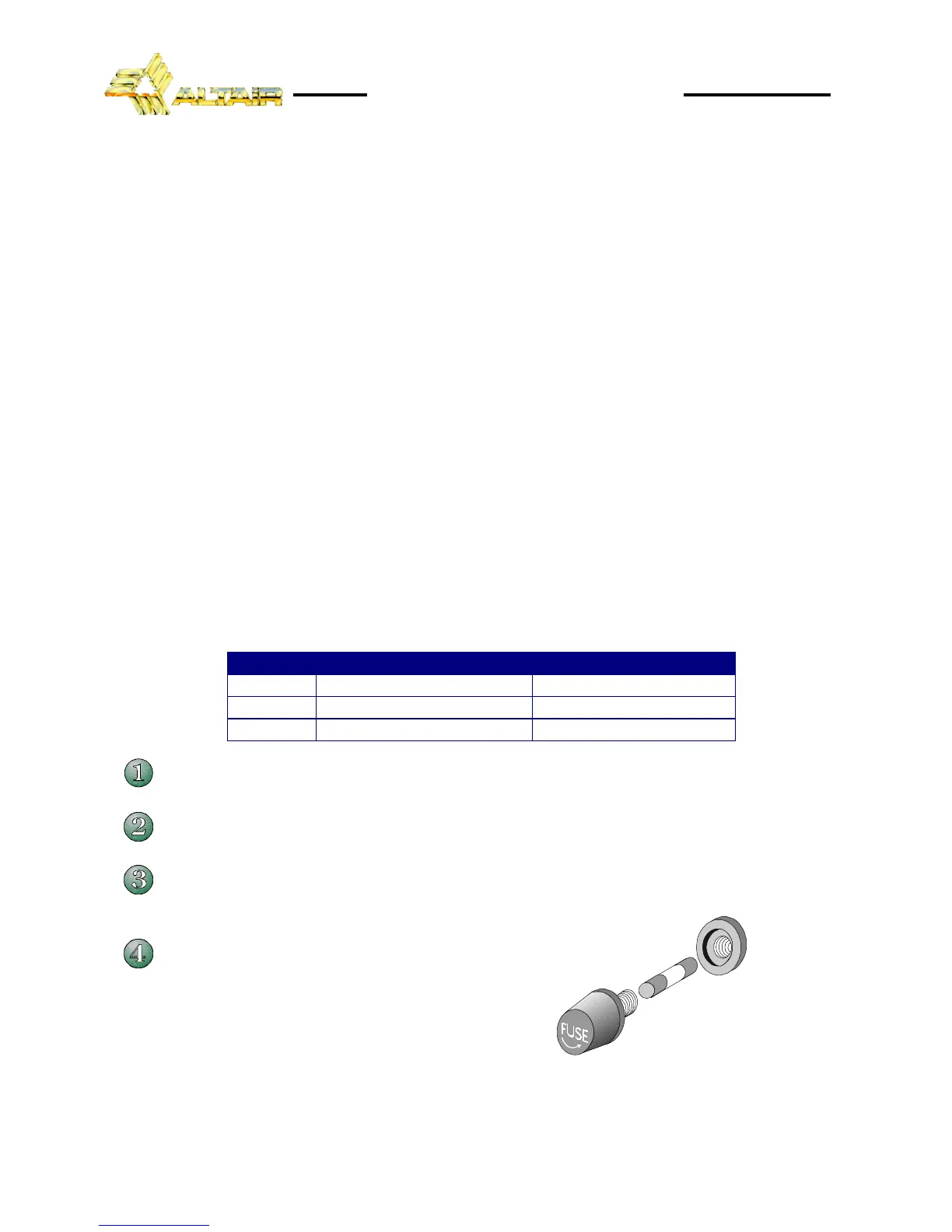

CHANGING THE FUSE
The power amplifiers are designed to work with slow blow type fuses of 6x32, whose values
in order to work with a mains voltage of 230V 50-60 Hz or 115V 50-60 Hz. are specified in the
following list:
MODEL FUSE (230V. 50-60 Hz) FUSE (115V. 50-60 Hz)
A3.5
T5A. T8A.
A7
T6A. T12A.
A11
T8A. T16A.
Make sure that the power amplifier is disconnected from the mains.
At the power amplifier rear panel is placed the fuse holder. Unscrew the most external part of
the fuse holder.
Upon unscrewing the most external part of the fuse holder, the fuse will appear. Remove it
and change for a new one. Never use other type of element than a fuse.
Screw the external part of the fuse holder.
CAUTION: Always make sure upon changing the fuse, that this is the adequate.
