Altec Lansing CD912-8A CEILING SPEAKER - Transformer Chart; Wiring Diagram

CD912-SS REV06

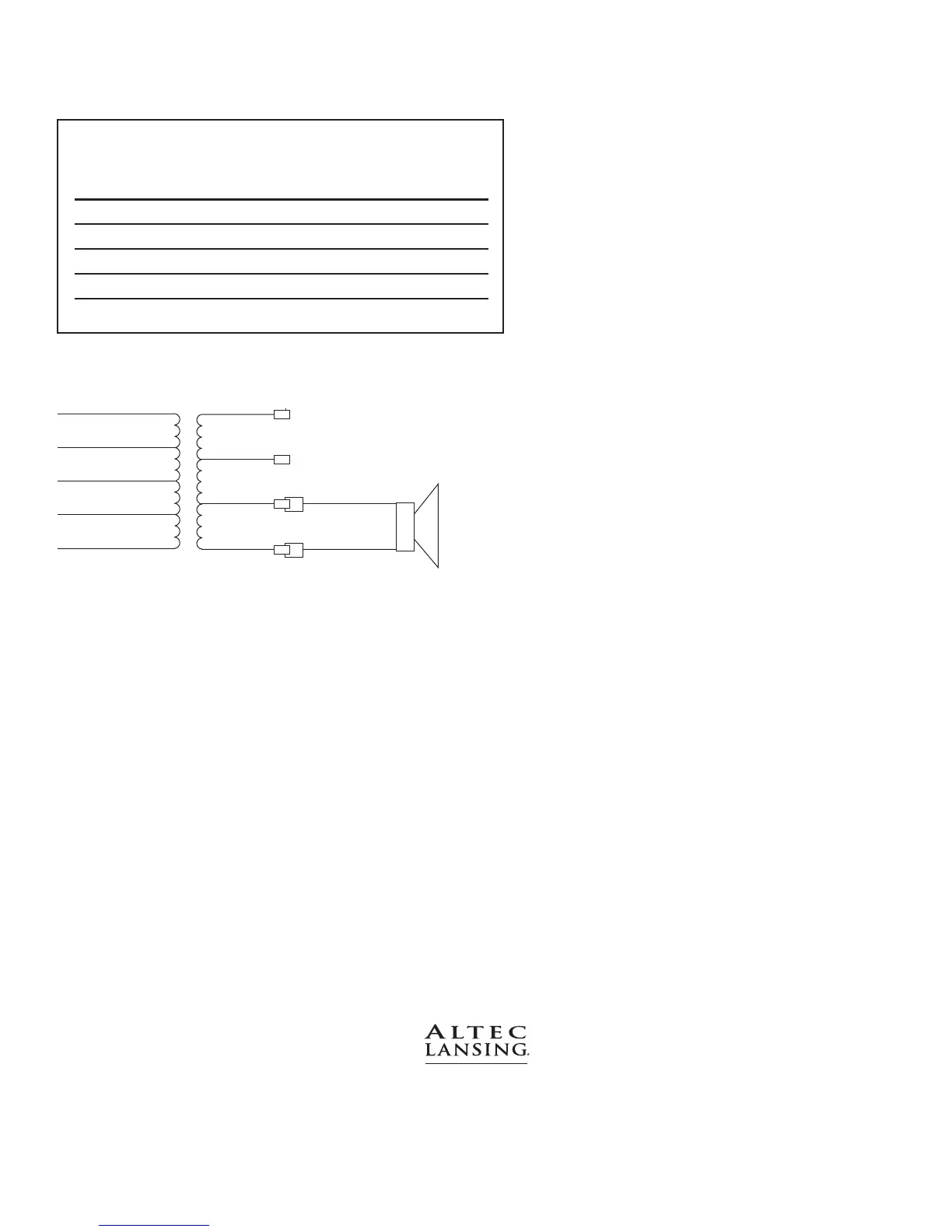

TRANSFORMER CHART
WIRING DIAGRAM
CD912-8A
YELLOW
0.5 dB
1.0 dB
8 Ω
ORANGE
RED
BROWN
COMMON
BLACK/WHITE
BLACK LEAD
COMMON
+
-
Premium 16 W Premium 32 W 70.7 V 100 V
Transformer Transformer Primary Tap Primary Tap
(T516-71) (T532-71) Color Code Color Code
Primary Primary
16.0 W 32.0 W Brown Red
8.0 W 16.0 W Red Orange
4.0 W 8.0 W Orange Yellow
2.0 W 4.0 W Yellow N/A
Primary Common Black
