#8405 — QUICKCHILLER INSTALLATION, OPERATION, AND MAINTENANCE
Pg. 3.

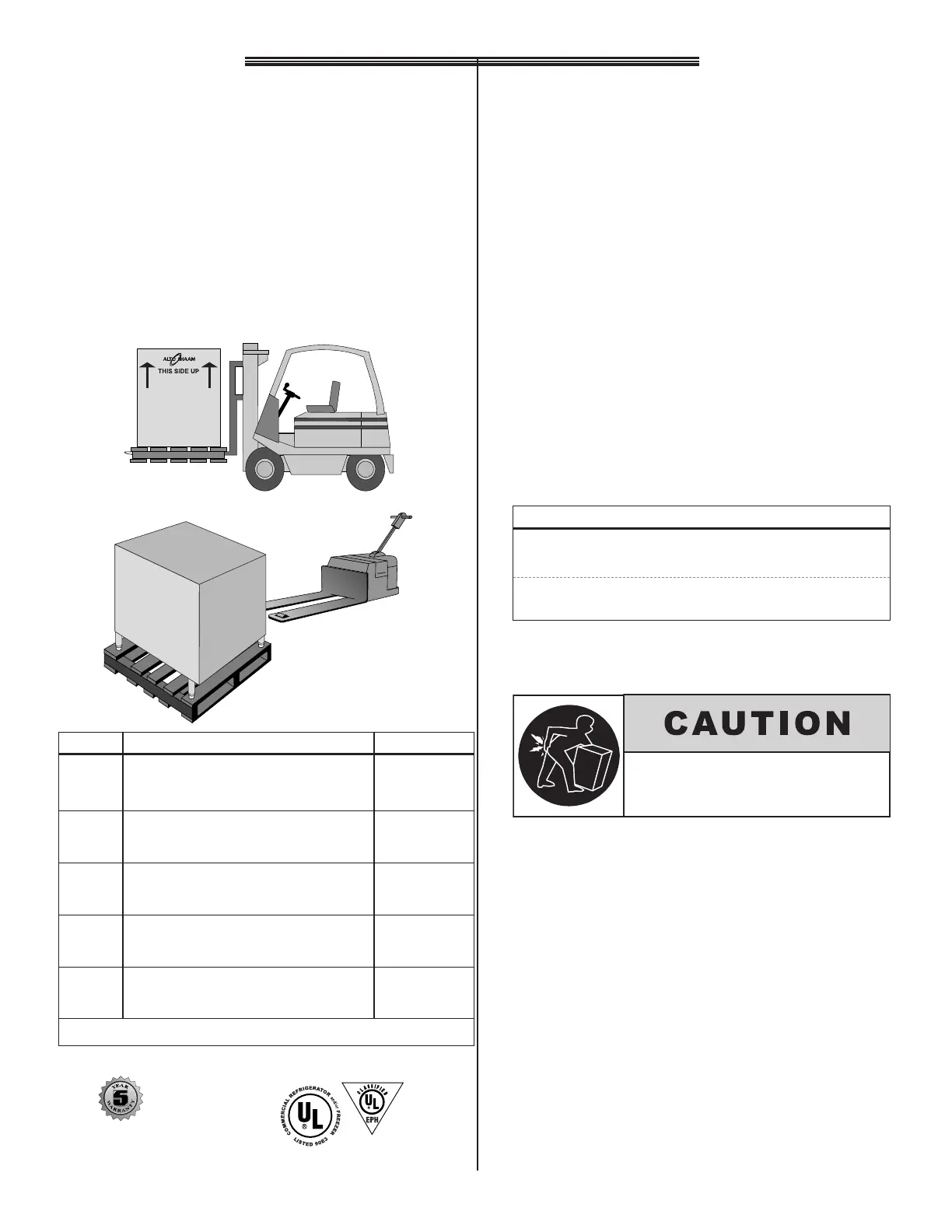

I N S TA L L AT I O N
P
rior to moving the Quickchiller to the installation
site, check the dimensions of doors, passageways,
and ceiling heights in the areas through which the
cabinet must be moved. Also check the turning
radius if the cabinet must be moved around an
e
xisting structure. The use of a fork lift or pallet
lift truck is required for moving and leveling most
Quickchiller models.
NOTE: In certain instances, it may be
necessary to remove doors and door
hardware to negotiate tight spaces.
SITE SELECTION
P
osition the Quickchiller to allow sufficient air
ventilation through the condensing unit(s). The
rear of unit should be no closer than 6" (152mm)
to any wall or structure.
Avoid installing the chiller
immediately adjacent to fryers,
charbroilers, or any other equipment
producing grease laden air; heat
producing equipment such as ovens
and ranges; and steam discharging
equipment such as steamer ovens and
kettles. Do not locate the Quickchiller
in direct sunlight.
Allow sufficient front clearance
for serviceability and for easy
maneuvering of food trolleys in
and out of the cabinet.
MODEL EXTERIOR D I M E N S I O N S : H x W X D NET WEIGHT*
QC-3 34" x 28" x 29-3/4" 350 lb
(864mm x 711mm x 756mm) (159 kg)
QC-20 42-1/2" x 52-1/2" x 38" 442 lb
(1079mm x 1334mm x 965mm) (200kg)
QC-40 70-1/4" x 38-1/2" x 39-7/8" 676 lb
(1784mm x 978mm x 1013mm) (307 kg)
QC-50 84-1/2" x 51" x 40-1/2" 1,120 lb
(2146mm x 1295mm x 1029mm) (508 kg)
QC-100 95" x 51" x 40-1/2" 1,152 lb
(2413mm x 1295mm x 1029mm) (523 kg)
*SELF-CONTAINED UNITS
C L E A R A N C E R E Q U I R E M E N T S
BACK: 6" (152mm) TOP: 6" (152mm)
SIDES: 4" (102mm) minimum at both sides.
18" (457mm)
MINIMUM CLEARANCE
FROM HEAT PRODUCING EQUIPMENT
.
5-YEAR LIMITED
WARRANTY ON
SELF-CONTAINED
COMPRESSOR
Effective from date of shipment.
(
EXCLUDES LABOR)
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
