6

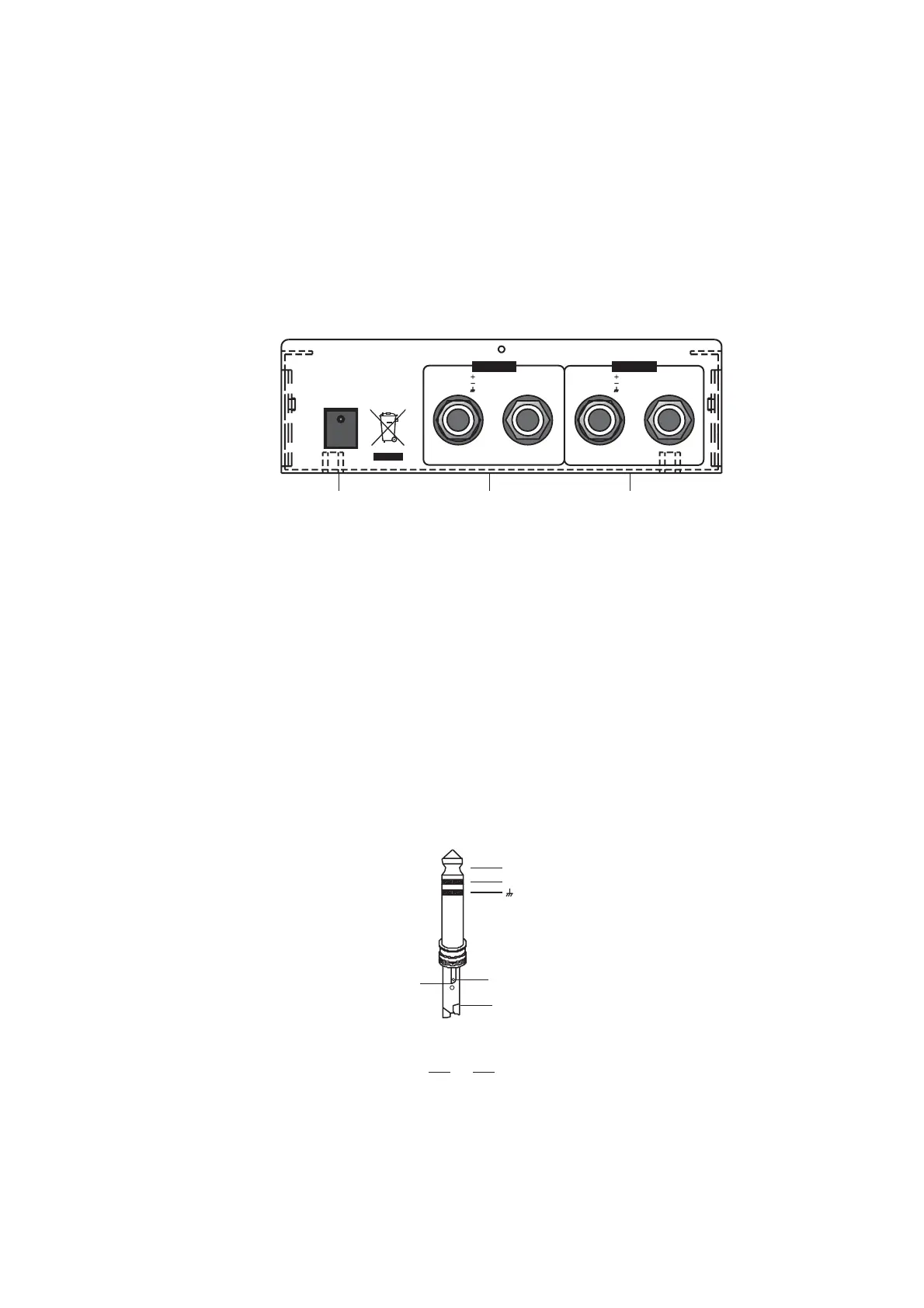

3.2 :Rear Panel
This LED lights up when the unit is powered on.
4. Power LED
(5) (6) (7)
15VAC~
POWER
LEFT
LEFT(MONO)
RIGHT RIGHT
TIP/PIN 2
RING/PIN 3
SLEEVE/PIN 1
INPUT
OUTPUT
TIP/PIN 2
RING/PIN 3
SLEEVE/PIN 1
5. AC Inlet
This jack is used to connect the AC power supply with the supplied 15V AC
adapter.
6. Output Connector
This is a balanced 1/4" TRS jack, which is used to connect devices such as
power amplifier inputsthe effects returns on a mixing console or .
7 Input Connector.
This is a balanced 1/4" TRS jack, which connects to sources such as the effect
sends of mixing console.
4. INSTALLATION AND CONNECTION
Please use shielded twisting pair which can reduce noise and signal loss. The
wiring of the connector is as follow:
Sleeve
Tip
+
Ring
TRS Type balanced
-
