Alto MS8 - Page 29

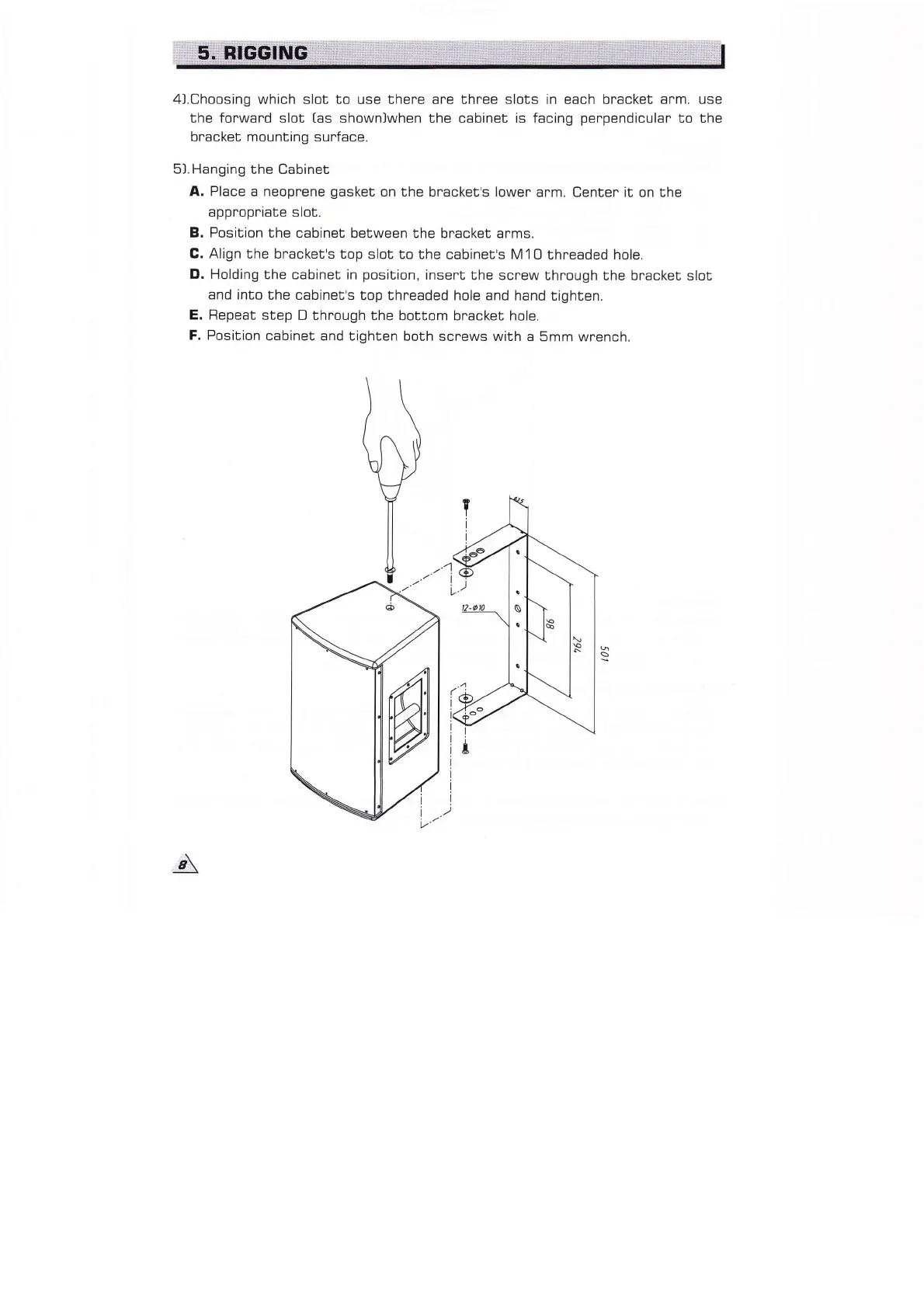

4J.Choosing which slot to use there are Ëhree slots in each bracket arm.
use
the forwand slot [as
shown]when the cabinet
is
facing
perpendicular
to the
bnacket mounting sunface.
5).
Hanging
the Cabinet
A. Place
a neoprene
gasket
on the bracket's lowen
arm, Centen it on the
appropniate
sloÈ.
B. Position
the cabinet between the
bnacket
arms.
G. Align
the
bnacket's
top slot to rhe
cabinet's M10
thneaded hole.
D. Holding
the cabinet in
position,
insenÈ the screw
through the
bnacket
sloË
and into
the cabineË's
Ëop threaded
hole and hand
tighten.
E. Repeat
step D Èhnough
the bottom
bnackeÈ
hole.
F. Position
cabinet and
tighten both
scnews
with
a
5mm
wrench.
