-. For Passive Subwoofer & Satellite Speakers
4
Speaker Cable
pole
Mount
Speaker Cable
pole
Mount
Stereo
Power Amplifier
Left
Main Mix
Output
Right
Main Mix
Output
Mixer
QUICK START
SR Passive Subwoofer & Satellite Speakers
Speaker Cable
Speaker Cable
6). After using, turn off your stereo power amplifier first, then the mixer.

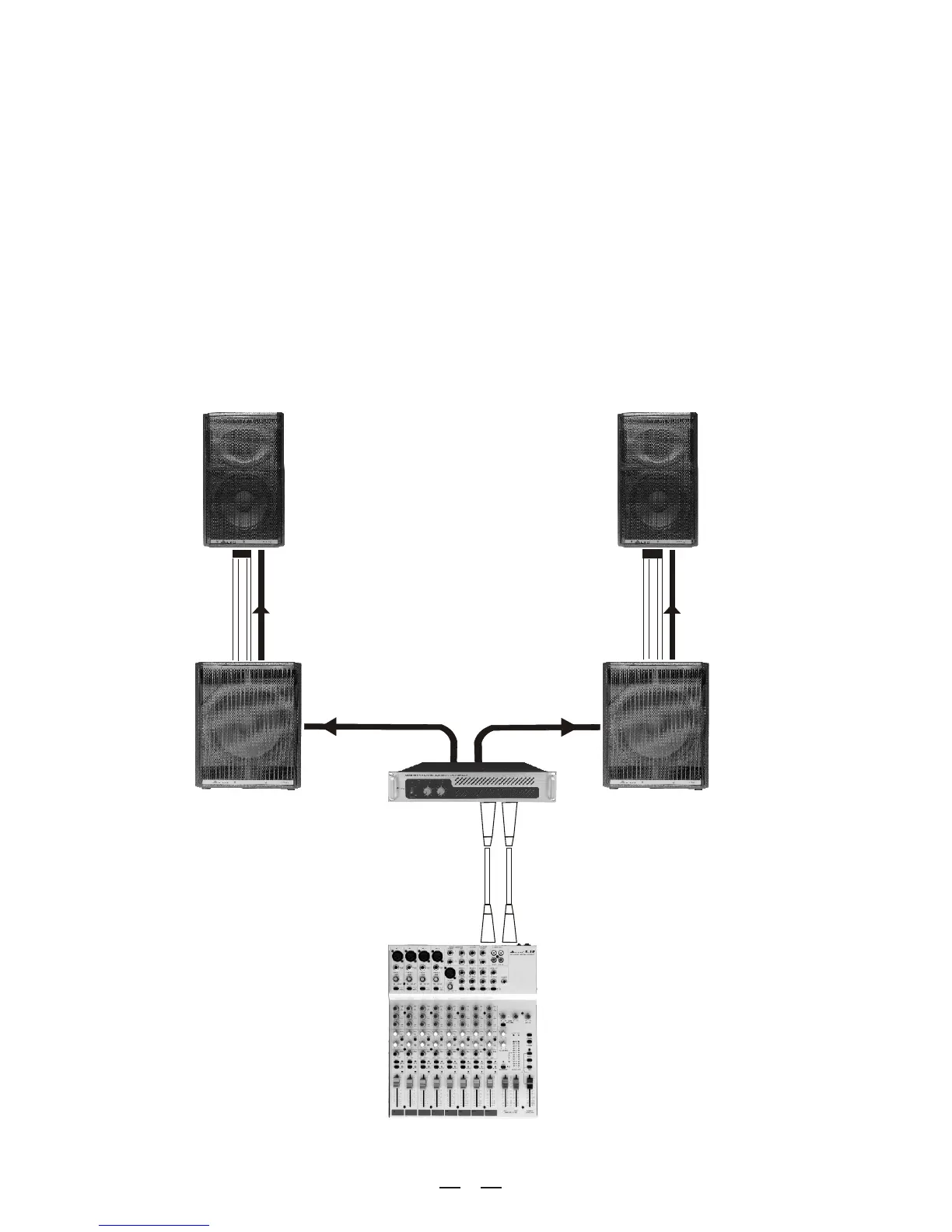

1). Connect one side of speaker cable to the output CHA/CHB or binding post of your stereo power amplifier and
the other side to the input socket of your subwoofer, with the second speaker cable connect the output of the
subwoofer to the input of satellite.
2). Complete other connections as illustrated.
3). Turn on your mixer first, then the stereo power amplifier.
4). Turn up the volume controls of your amplifier to about 70%.
5). Use PFL function to get the proper input level for the mixer, and adjust the main mix level control to manipulate
the output level.
