Display

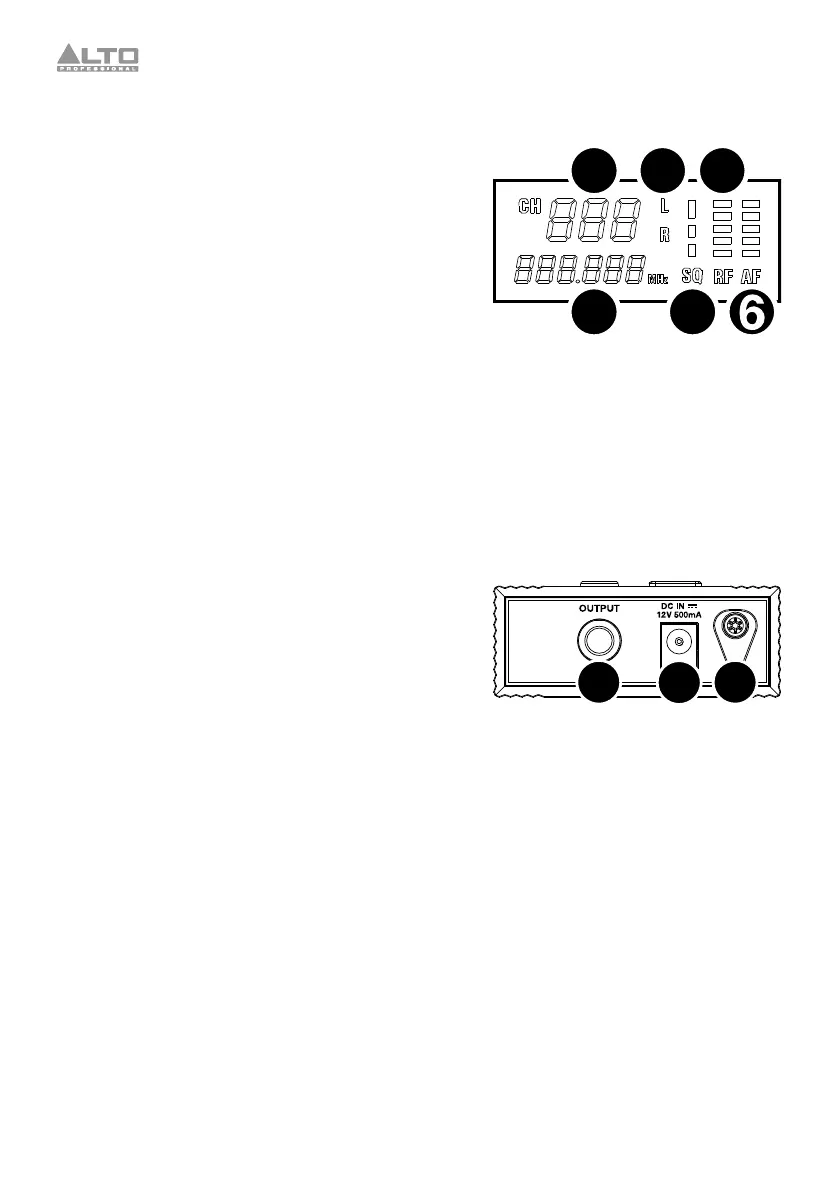

1. Channel (region specific): This is the current RF
channel number. The number of available channels
depends on your region.
2. Frequency: This is the current RF frequency in MHz.
3. L/R: Indicates which stereo channel the receiver is
receiving from the transmitter.
4. SQ: Indicates the current Squelch level, either Low,
Medium, or High.
5. RF: This meter shows the current level of reception
between the transmitter and receiver. A high meter
value indicates that the RF channel is clear, while a
low meter value indicates that there is a significant
amount of RF interference on the currently scanned
channel.
6. AF: This meter shows the current audio signal level
received from the transmitter.
Front Panel
1. Power Connector: Connect the included 12 V, 500
mA power adapter here.
2. Audio Output (TRS): Use the included TRS to XLR
cable to connect this balanced output to your
loudspeaker.
3. Power Adapter Restraint: Secure the power adapter
cable to this restraint to prevent it from accidentally
unplugging.
1
3
1
2
3
4
5
