CD200D II 4-17 All rights reserved © ALTRONIC, LLC 2017
17

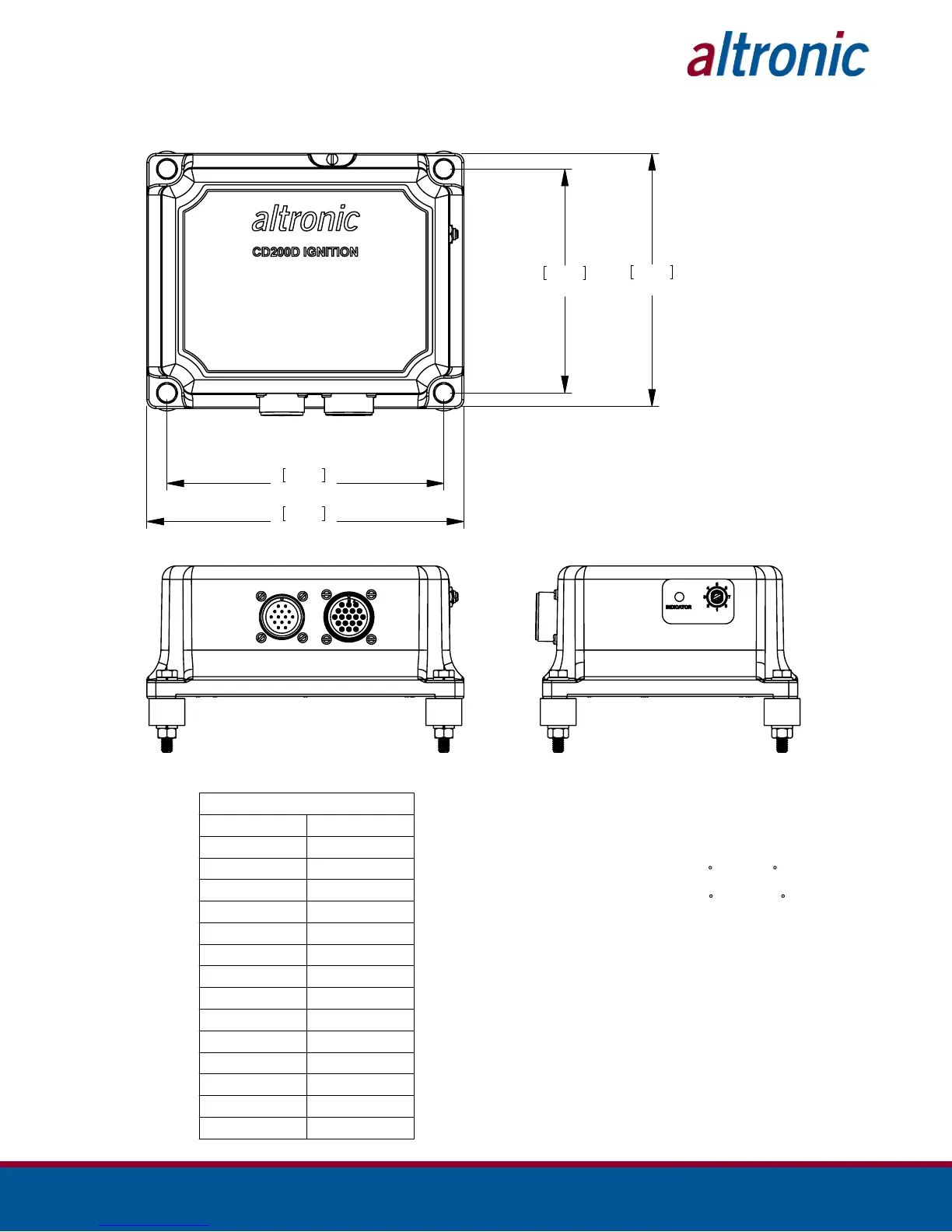

FIGURE 1 — CD200D DIMENSIONS & SPECIFICATIONS
8.85
224.8
7.73
196.3
7.12
180.0
6.25
158.8
14-PIN 19-PIN
OPERATING TEMPERATURE: -40
C TO +85 C
STORAGE TEMPERATURE: -40 C TO +105 C
INPUT VOLTAGE: 12 TO 30 VDC
OUTPUT VOLTAGE: 160 VDC NOM.
14-PIN CONNECTOR
CONN. PIN PCB HOLE
A MPA
B MPB
C 485 +
D FLT
E +5V
F 4-20 IN
G 4-20 -
H 485 -
I N/C
J N/C
K +24
L HEA
M HEB
N HEC
