1. Slide the 4 feet fully down into the groove of the bottom
mount as shown. (Fig 1)
2. Screw the collar into position to prevent 4 feet from
coming out. (Fig 2)
3. Attach angle brackets to heater head as shown in (Fig 3)
Do not tighten screws so the brackets can still slide on
heater head.
4. Attach heater head to the top of the stand of the pipe
using plastic head bolt & nut. Place washer on outside
of bracket. (Fig 4)
5. Slide heater head so it's central on mounting point & lock
4x screws to secure as shown in (Fig 5)
Risk of re:
Keep combustible
materials such as
furniture, paper,
clothes and curtains
at least 1m from the
heater.
DO NOT use/install
this heater in the
immediate
surroundings of a
bath, shower
or swimming pool.
6

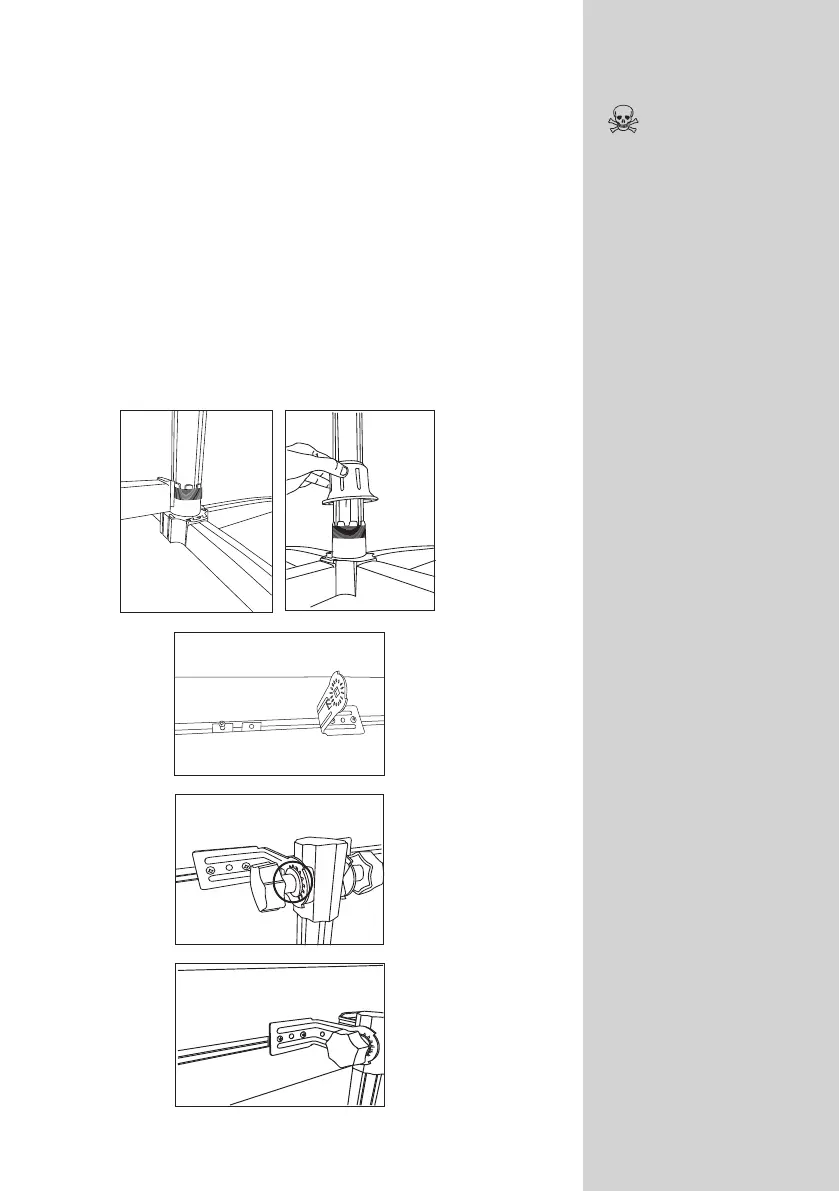

Fig.1
Fig.2
Fig.4
Fig.5
Fig.3
