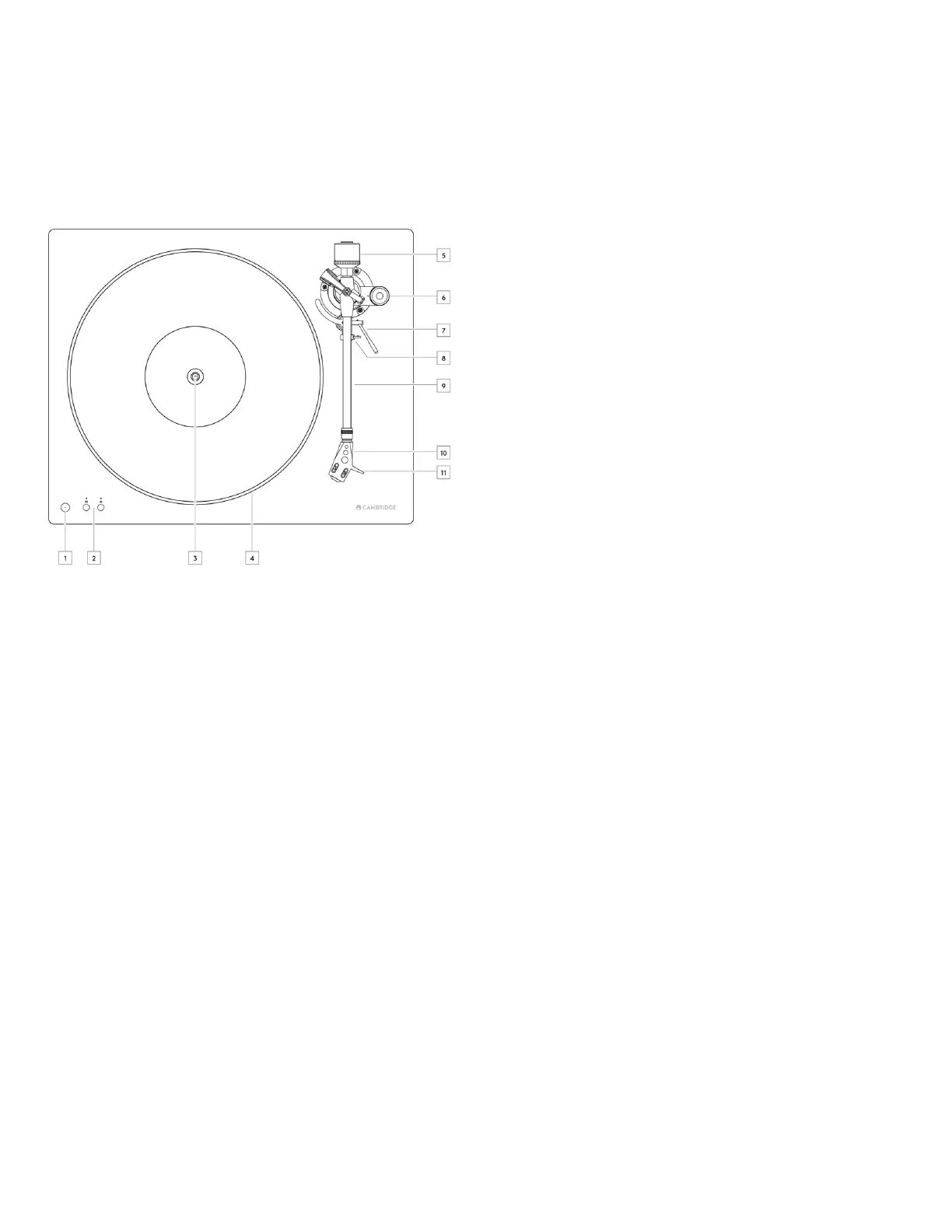

Top view
Last updated: June 28, 2022 03:06. Revision #4956
1. Standby/On - Switches the unit between standby (indicated by a dim LED) and on (indicated by a bright LED).
2. Start/Stop and Speed Selection Buttons - Use to start or stop platter rotation at either 33, or 45 RPM.
3. Drive Motor.
4. Platter.
5. Tonearm Counterweight - Used to adjust the stylus tracking force.
6. Anti-Skating Dial - Allows adjustment of the anti-skate function.
7. Tonearm Lift Lever - Used to gently lift and lower the tonearm.
8. Tonearm Rest and Clamp - Used to secure the tonearm when not in use.
9. Tonearm.
10. Moving Coil Cartridge.
11. Headshell with Finger lift.
