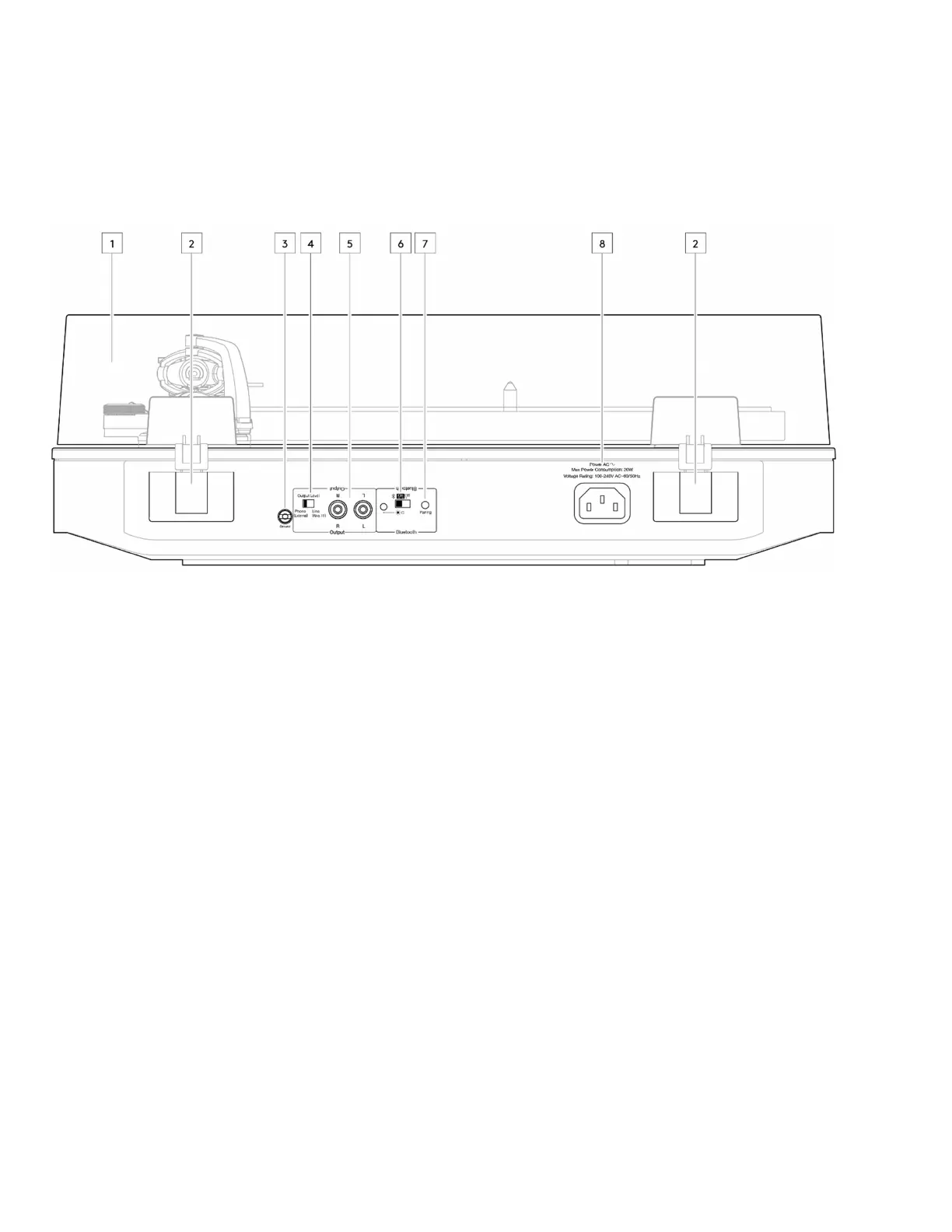

Rear view
Last updated: June 28, 2022 03:06. Revision #4957
1. Lid.
2. Lid hinges.
3. Ground Connection Screw.
4. Output Level Switch – Select between line level, or phono level output
Line: With the switch set to ‘Line’ the internal phono stage will be used
Phono: With the switch set to ‘Phono’, an external phono stage will need to be used
5. Signal Output Sockets.
6. Bluetooth Status with LED ON/OFF Switch.
7. Bluetooth Pairing Button.
8. AC Power Socket.
