APPENDIX E: EtherNet/IP
TM
COMMUNICATIONS
IS-300CR INVERTER POWER SUPPLY
E-20 990-418
Controller Tags

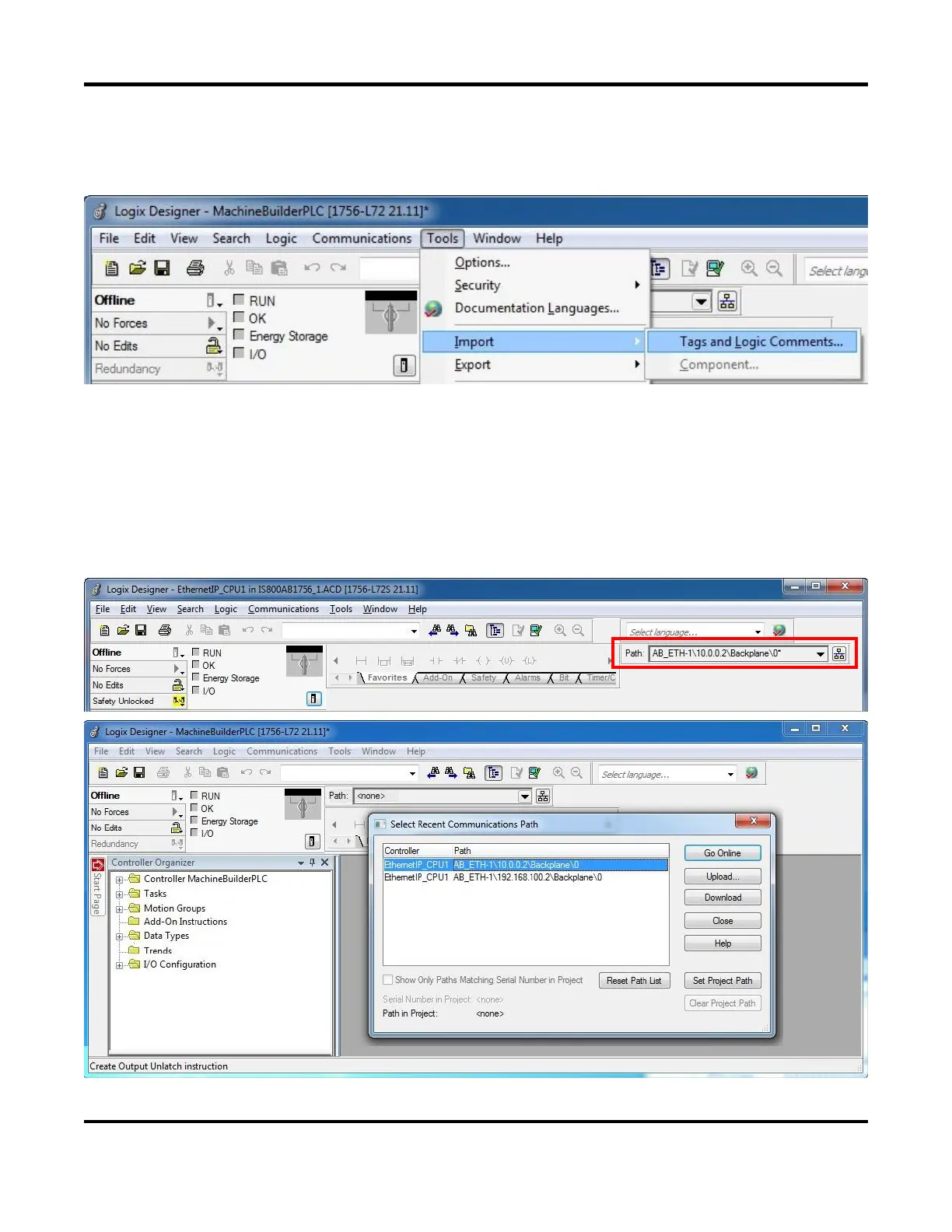

From the Tools menu, select Import > Tags and Logic Comments…
When the Import window opens, navigate to the installation package
\IS_Series_AB_EthernetIP\ RSLogix_PLC\Importable\Tags folder and select the
IS800-Controller-Tags.CSV item. Select [Import] to continue.
Before downloading this machine builder ACD project to the PLC and Go Online in the RUN mode,
make sure the Project Path to the controller backplane is set correctly. If not, select the [Who Active]
icon to select and set the correct PLC path.
