APPENDIX E: EtherNet/IP
TM
COMMUNICATIONS
IS-300CR INVERTER POWER SUPPLY
E-22 990-418

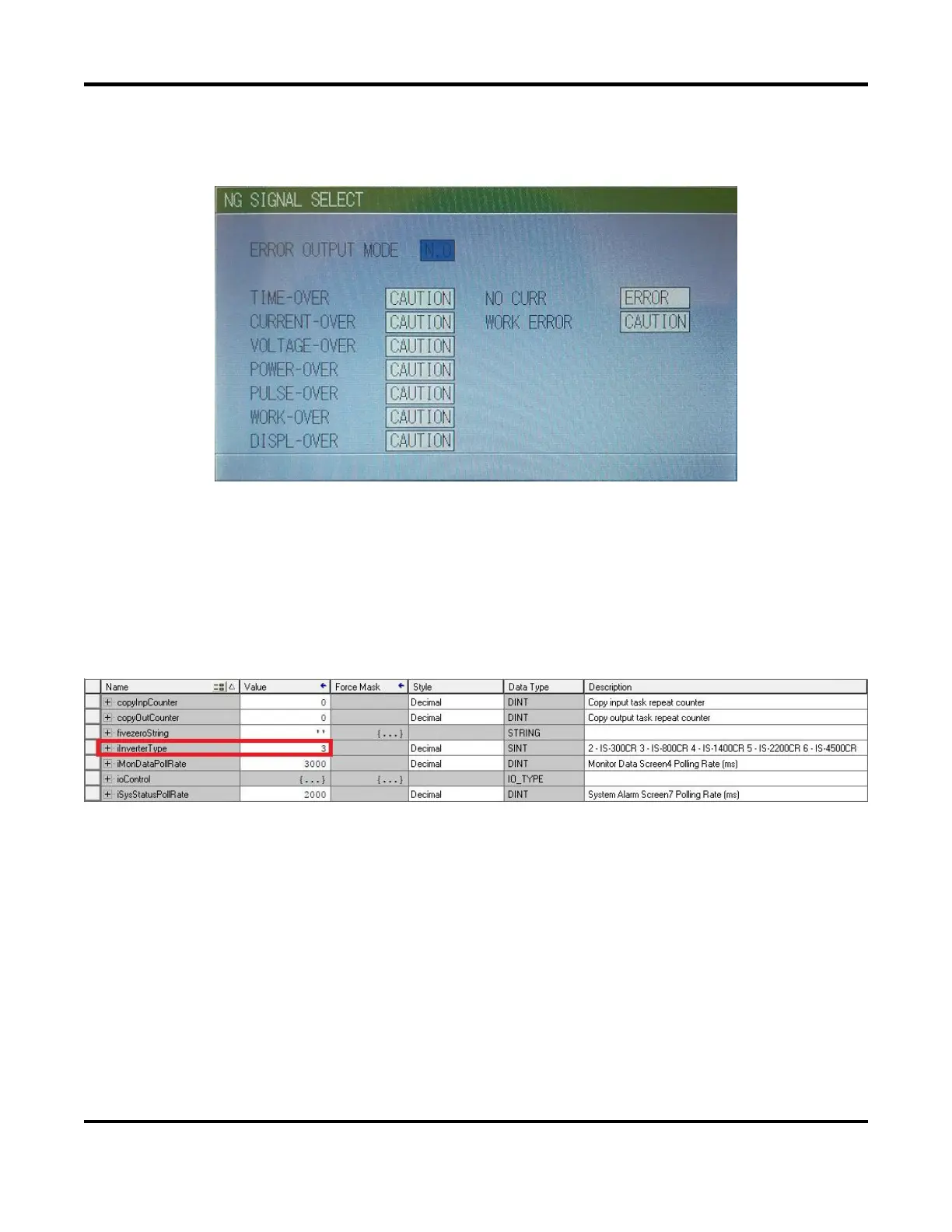

From the Menu screen, select the [NG Signal Select] and make sure the ERROR OUTPUT MODE is set
as [N.O] normal open.
IS-300CR Type Settings
Each IS-Series type will have a different range of power level and limitations and must be specified so
the Allen Bradley
®
Controller PLC knows which IS-Series Inverter Power Supply type (IS-300CR) it is
communicating with. Open the Controller Tag and assign the iInverterType data tag with the specified
value:
• IS-300CR – set the iInverterType = 2
• Select the [Save] button to save the iInverterType controller tag value.
