APPENDIX E: EtherNet/IP

COMMUNICATIONS

IS-300CR INVERTER POWER SUPPLY

E-46 990-418

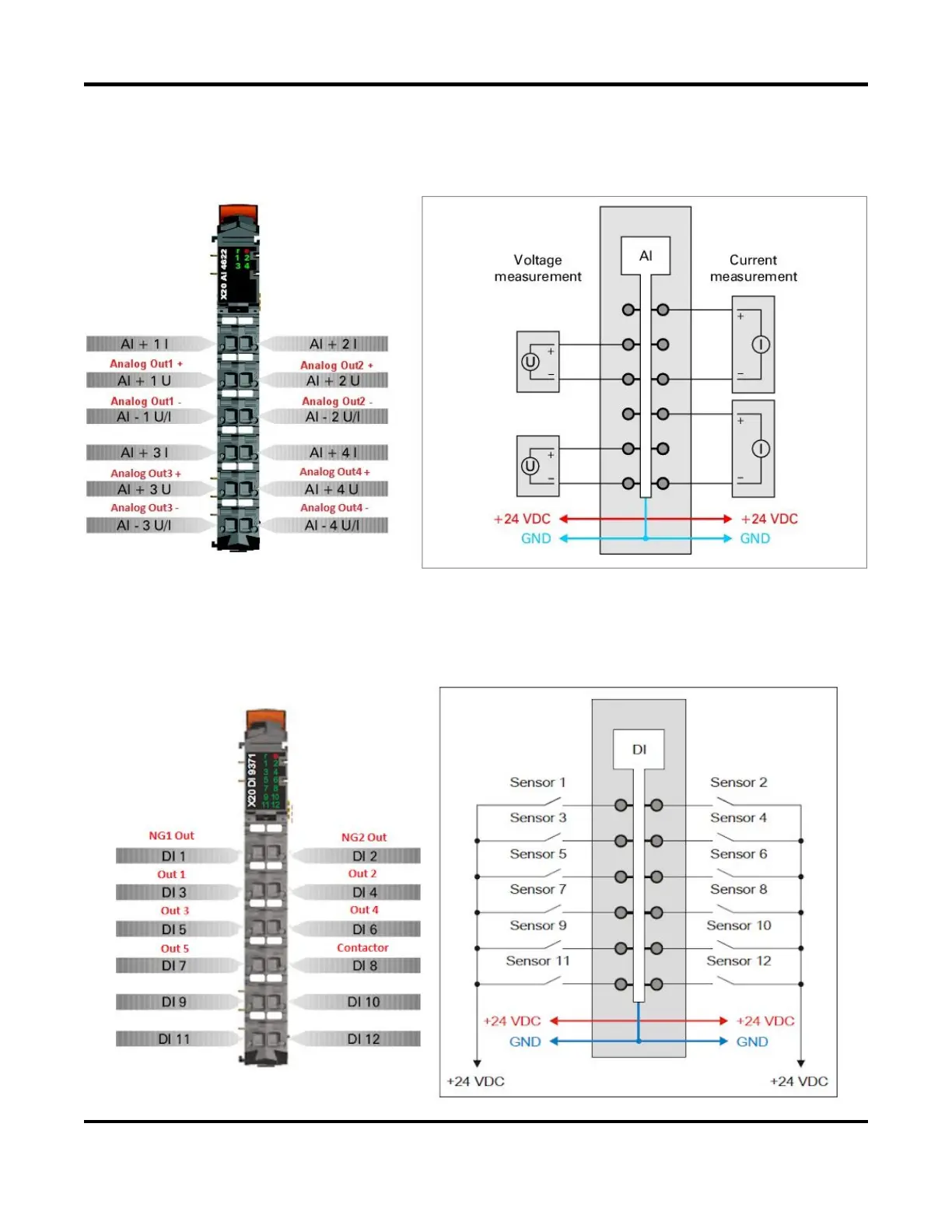

X20AI4622 – Analog Input Module

The analog output signals from the IS-300CR terminal block are wired to this module. Connection

example:

X20DI9371 – Digital Input Module

The digital output signals from the IS-300CR terminal block are wired to this module. Connection

example:
