APPENDIX E: EtherNet/IP
TM
COMMUNICATIONS
IS-300CR INVERTER POWER SUPPLY
990-418 E-45

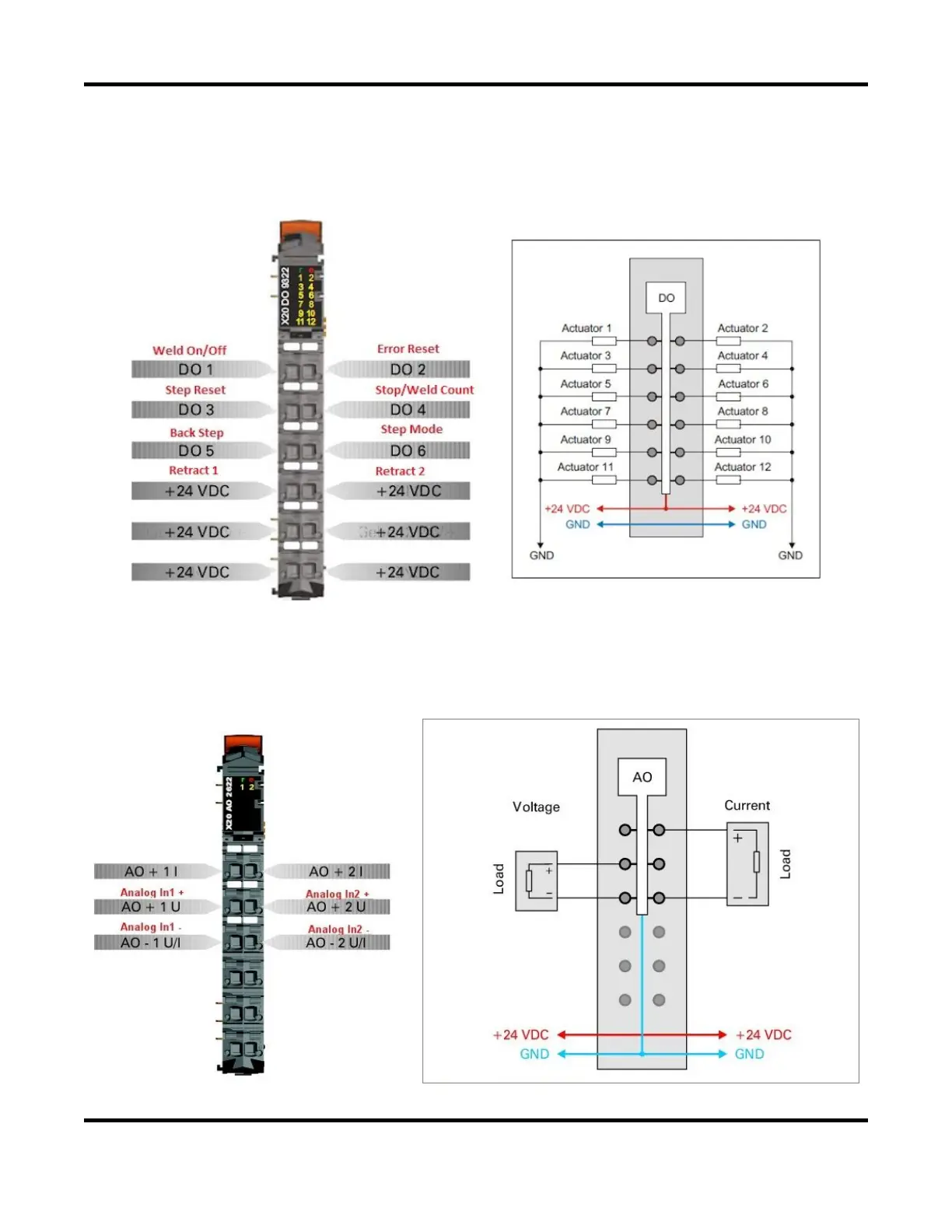

X20DO9322 – Digital Output Module 2
The digital output signals from this module are wired to the digital input pins on the IS-300CR terminal
block. Connection example:
X20AO2622 – Analog Output Module
The analog output signals from this module are wired to the analog input pins on the IS-300CR terminal
block. Connection example:
To Next Page
