APPENDIX E: EtherNet/IP
TM
COMMUNICATIONS
IS-300CR INVERTER POWER SUPPLY
E-44 990-418
X20 CS1020 – RS-232 Communication Module
X20DO9322 – Digital Output Module 1

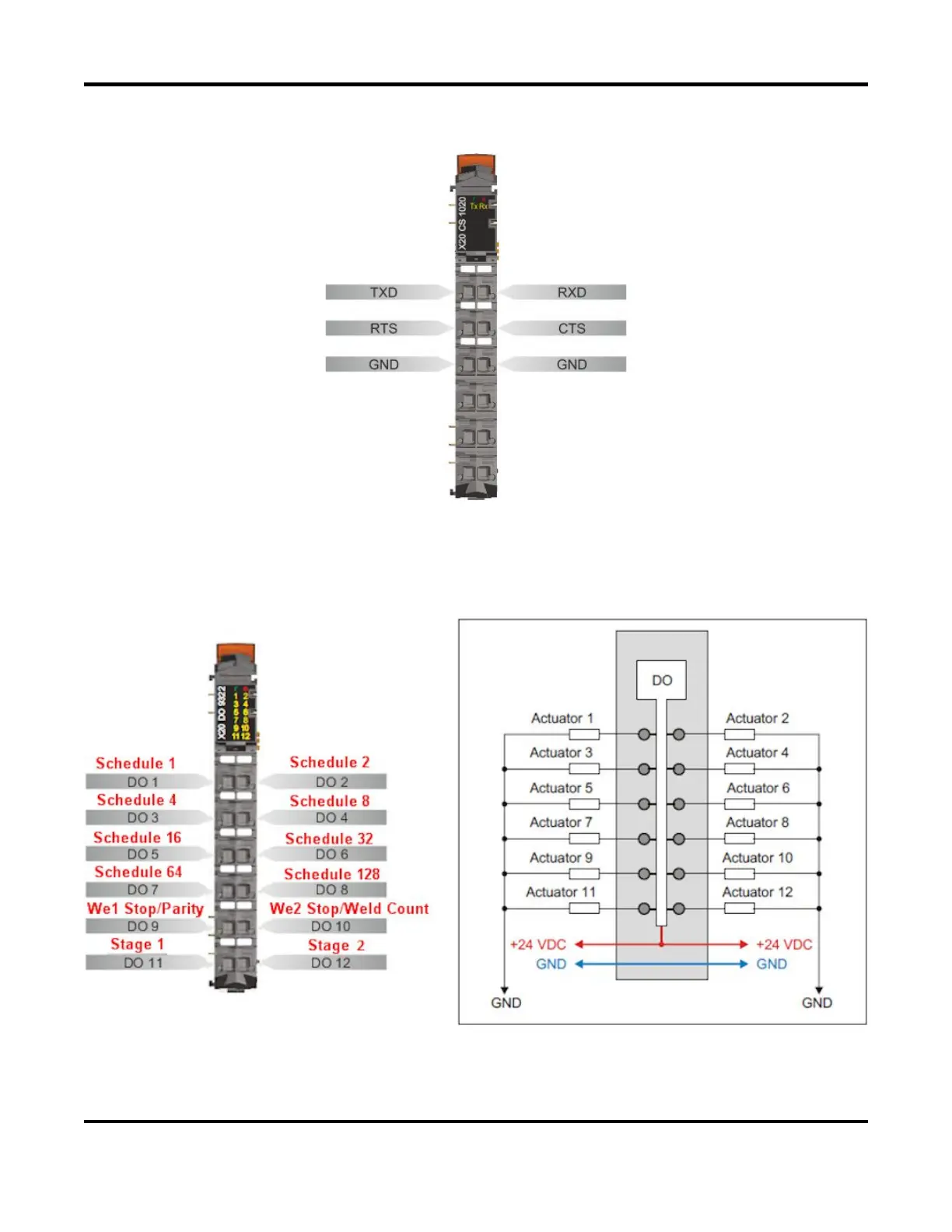

The digital output signals from this module are wired to the digital input pins on the IS-300CR terminal
block. Connection example:
