NOTES:
■ Handle the air conditioner gently.
■ Be sure your air conditioner does not fall out of the opening
during installation or removal.
■ The place where the power cord exits the air conditioner should
be no more than 4 ft (122 cm) from a grounded outlet.
■ Do not block the louvers in the front panel.
■ Do not block the louvers on the outside of the air conditioner.
NOTE: Your model may differ from the one shown.

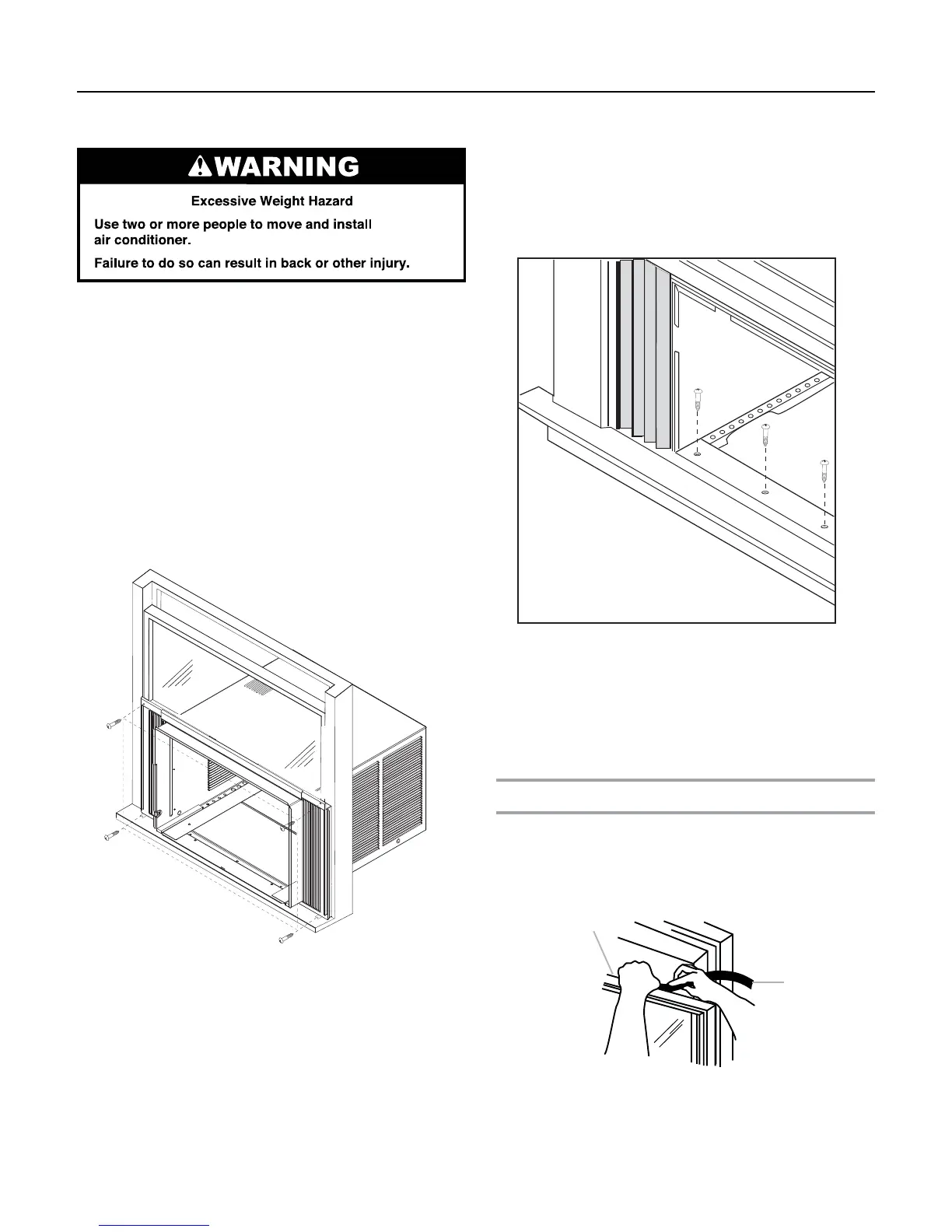

1. Center the outer case in the window. Lower the window sash
behind the top channel to hold the cabinet in place
2. Fasten the outboard of curtain to the window frame.Attach each
curtain to the window sash using 31/32” screws.
3. Use 3 screws(31/32” )to fix the cabinet to windowsill.
Note:To make screws easier to drive,drill three pilot holes in the
windowsill.
Note:To make screws easier to drive,drill a pilot hole in curtains.
Position Air Conditioner
Install Foam seal
7
A
B
1. Insert the foam seal behind the top of the lower window sash
and against the glass of the upper window.
A. Top of lower window sash
B. Foam seal
