Amana CRC18T2OG Service Training Manual

19

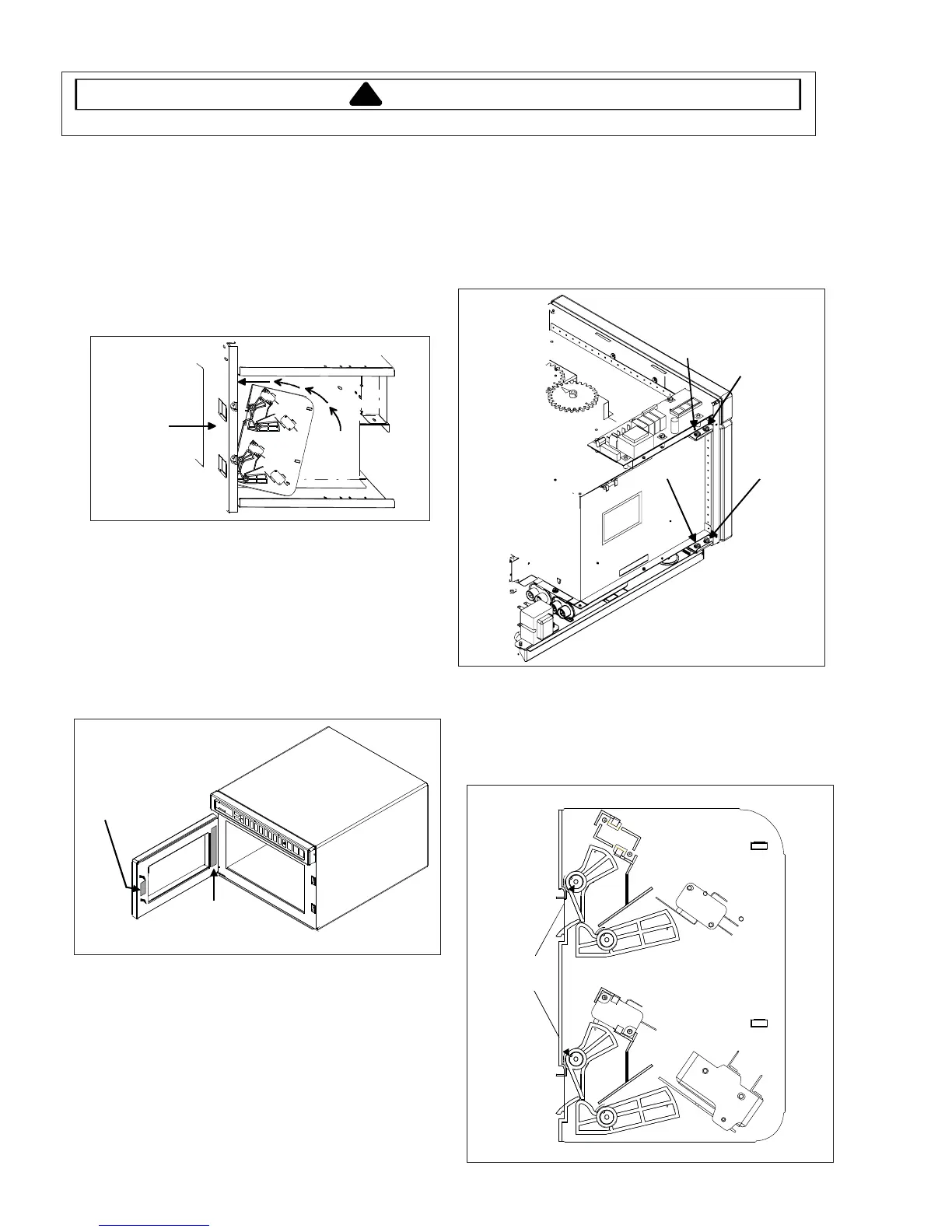

Disassembly
Switch Replacement / Door Adjustment
WARNING
!
To avoid risk of electrical shock, personal injury or death; disconnect electrical power before servicing.
1. Remove and retain two (2) screws securing switch to
cavity. Remove switch.
2. Position new switch assembly into cavity opening.
 First, insert bottom ramp of switch into bottom
opening.
 Tilt switch upward and insert top ramp of switch
into top opening.
 Be sure both ramps are fully protuded through the
front frame of cavity.
P
r
i
mary
Log
i
c
Secon
d
ar
y
M
o
ni
t
o
r
Cavity
Front
3. Loosely install screws removed in step 1.
4. Push and hold switch assembly towards front of oven
and tighten screws.
5. Transfer wires to new switch.
6. Install wire ties.
Important: It is necessary to adjust the door
assembly for correct switch function.
7. Tape shims 12382602 and 12019302 to door, as
shown.
12382602
Shim
.060 in. \ 1.5 mm
12019302
Shim
.030 in. \ .75 mm
8. With door closed, loosen door hinge bolts 1/2 turn.
9. Lift upward on door, using the door handle.
10.With left hand, clamp door to cavity on hinge side of
door.
11. While holding door in place, tighten 15/16” (8 mm) hinge bolts
in the order shown. Use a wrench or socket to tighten securely.
1
2
3
4
12.Open and close door serveral times to check switch
operation.
NOTE: If switches do not activate, check condition and
alignment of door and hinges.
13.Remove shims.
Primary /
Logic
Secondary
Monitor
Mounting
Screws
