Component Identification
Parts and Feature Identification

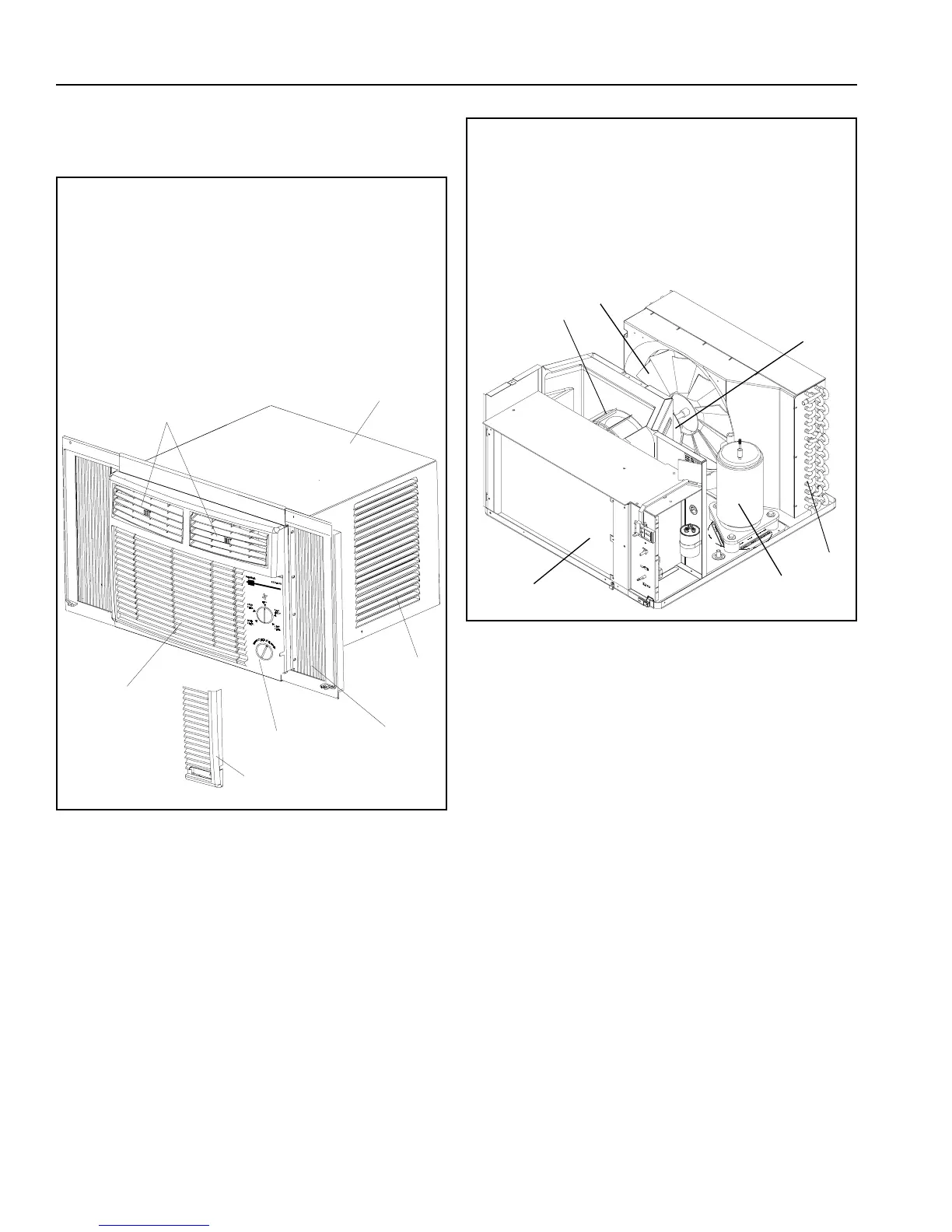

Figures 1 and 2 show the location of various air
conditioner parts and features described in this manual.
Figure 1. Air Conditioner External Parts Identification
1. Outer case
2. Side air louvers
3. Curtain assembly
4. Control panel
5. Control panel door (shown removed - not available on
all units)
6. Return air vent
7. Air discharge vent (small/large chassis vents shown)
1
2
3
4
5
6
7
Figure 2. Air Conditioner Internal Parts Identification
1. Blower wheel
2. Condenser fan (includes slinger ring)
3. Fan motor
4. Condenser assembly
5. Compressor
6. Evaporator assembly
1
2
3
4
5
6
