5-10

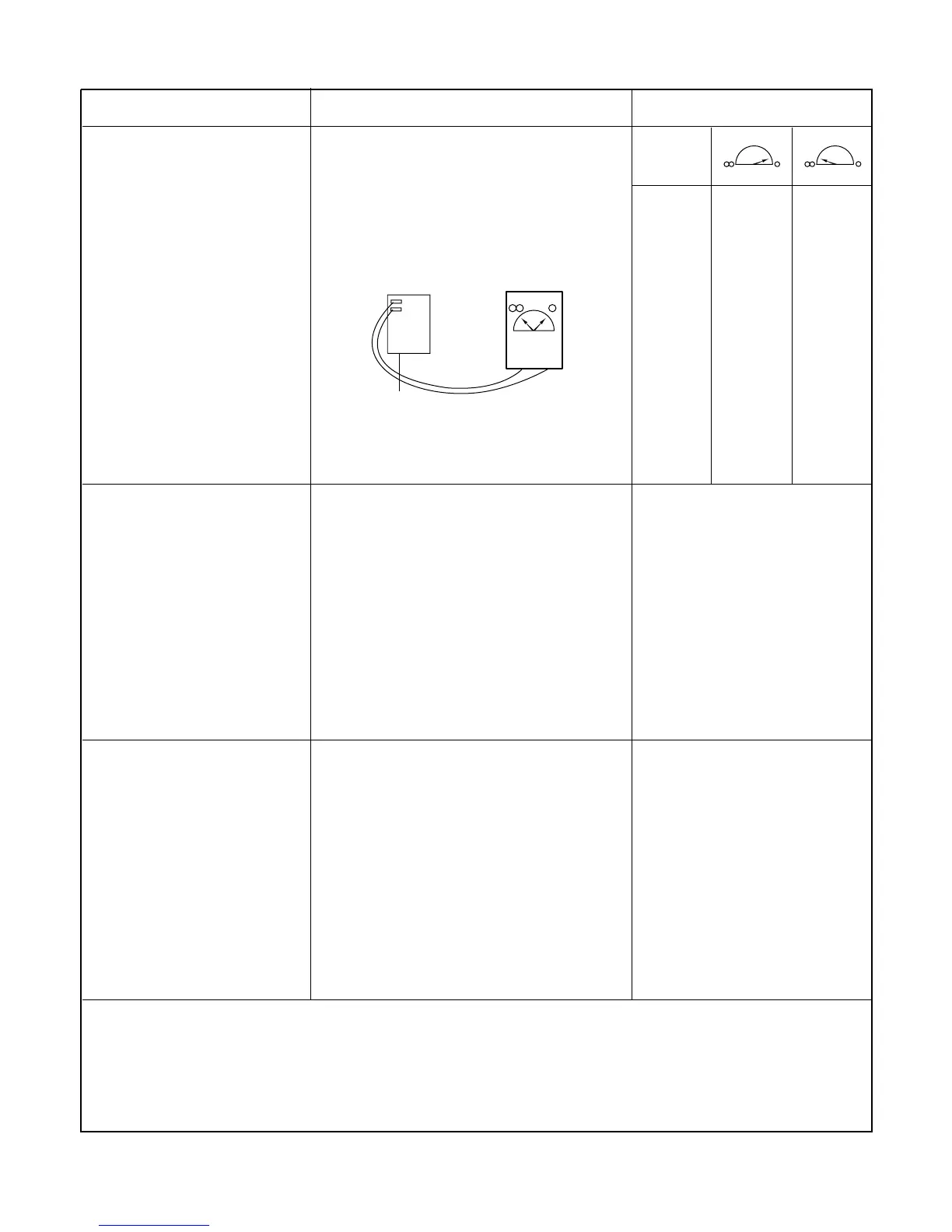

COMPONENTS TEST PROCEDURE RESULTS
STIRRER
MOTOR
(Wire leads removed)
Check for continuity of relay 3 an
ohm-meter.
(Remove wire leads from relay 3 and
operate the unit.)
Measure the resistance.
(Ohm-meter scale: R x 1000)
POWER
LEVEL
1 3 sec 9 sec
2 4 sec 8 sec
3 5 sec 7 sec
4 6 sec 6 sec
5 7 sec 7 sec
6 8 sec 4 sec
7 9 sec 3 sec
8 10 sec 2 sec
9 11 sec 1 sec
10 12 sec 0 sec
Normal: Approx. 12.8~13.5 kohm
Abnormal: Infinite or several
ohm.
NOTE : • A MICROWAVE LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS
SERVICED FOR ANY REASON.
• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.
• WHEN REMOVING THE WIRE LEADS FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.
BLOWER MOTOR
(Wire leads removed)
Measure the resistance.
(Ohm-meter scale: R x 100)
Normal: Approx. 72~82 ohm
Abnormal: Infinite or several
K-ohm.
RELAY 3
Relay 3
To Next Page
