February 1998 15 RS5290000 Rev. 0
Installation Instructions

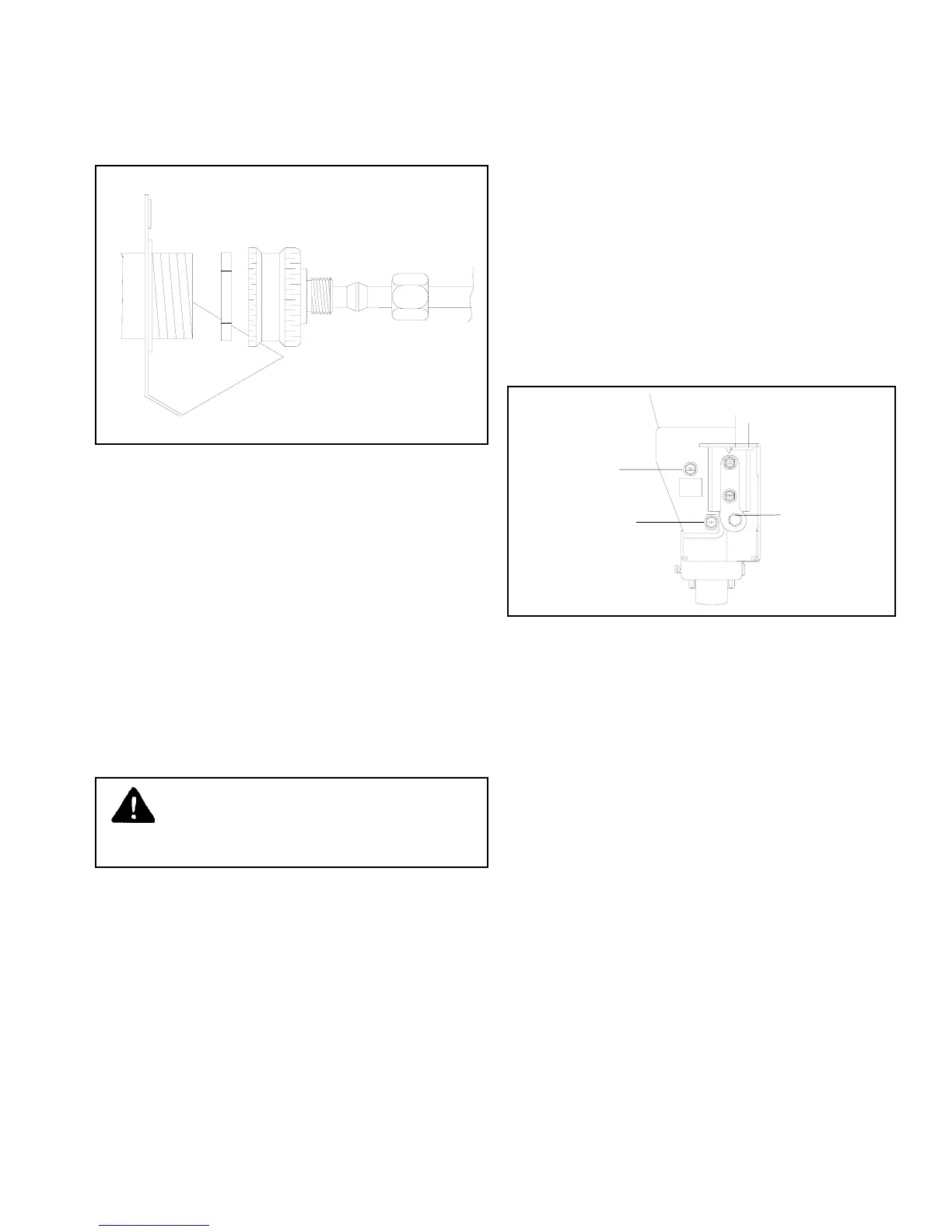

7. Assemble water valve coupling by removing nut
and sleeve from adapter fitting. Slide brass nut
and sleeve over end of copper tubing. Insert
copper tubing completely into adapter fitting.
Leveling Refrigerator
1. Place level side-to-side at top front of
refrigerator.
2. Remove toe grille by lifting and pulling forward.
Important
Some models have both front and rear leveling legs.
3. Adjust leveling wheels by rotating leveling
screws. Raise refrigerator by rotating leveling
screws clockwise.
8 Confirm hose washer is in place by checking
fitting. Tighten adapter fitting by hand. Tighten
an additional 1/2 turn. Connect nut on copper
tubing to adapter fitting. Confirm copper tubing
is secure by pulling on copper tubing.
9. Turn on water supply to refrigerator and check
for leaks. Turn off water supply to refrigerator
and correct leaks. Repeat this process until no
leaks are found, then completely turn on water
supply to refrigerator.
10. Install lower back cover by reversing step 6.
Tuck wires inside cover. Avoid pinching wires.
11. Create service loop avoiding kinks. Secure
copper tubing at back horizontal cover
using “P” clamp.
Caution
To avoid property damage, all covers
must be in place.
4. Models with Hinge Adjusting Cam
If tops of doors are not aligned, loosen refrigerator
door hinge screws 1/2 turn. Turn cam clockwise 1
increment at a time until doors are aligned. Open
and close doors. Tighten hinge screws.
Front roller
adjustment screw
5. Install toe grille by positioning top and snapping
in bottom. Top is indicated on back of toe grille.
Rear roller
adjustment screw
(some models)
Hinge adjusting
cam (some
models)
