Electronic Functional Description
E6
E9
E10
E10
E10
E10
Defrost Heater
6.5 Ohms
E9
398 Ohms
Yellow Wire
Evap. Fan Motor Relay
1 Ohm
or less
Evaporator Fan Motor
Defrost Terminator
E10
Red Wire
Defrost Relay
Power Switch
1 Ohm
or less
Brown Wire
Compressor Relay
Refrigerator Light Switch
1 Ohm
or less
E7
Freezer Light Switch
1 Ohm
or less
E8
N
v
E9
Overload
Condenser Fan Motor
Compressor
C
S
R
Compressor
Relay
Gray
Wire
Black
Wire

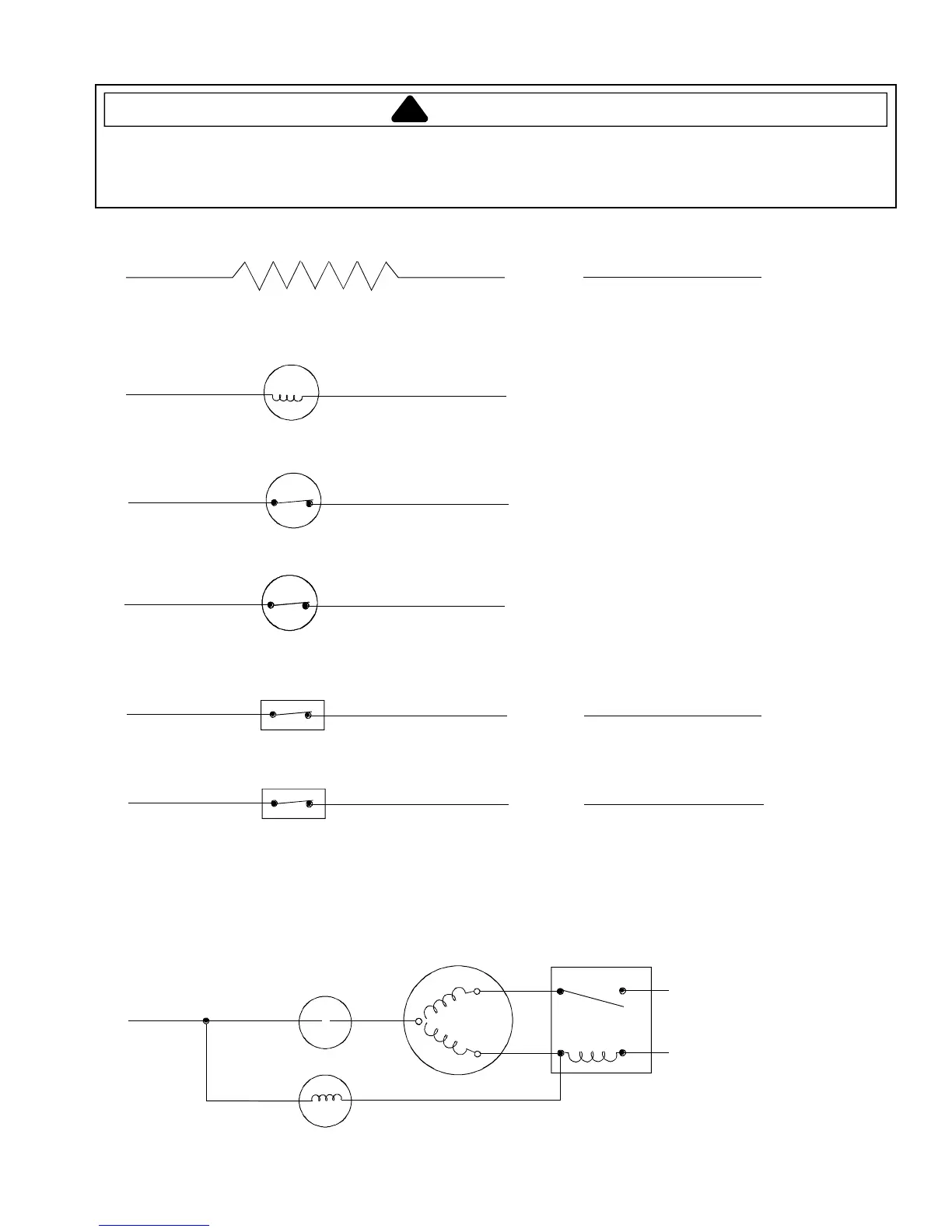

Resistance Checks Made at High Voltage Board
To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator using
power switch before servicing. Discharge capacitors through a resistor before handling. Wires removed during
disassembly must be replaced on proper terminals to insure correct earthing and polarization. After servicing,
reconnect power using power switch.
WARNING
