RS5290000 Rev. 0 32 April 1998

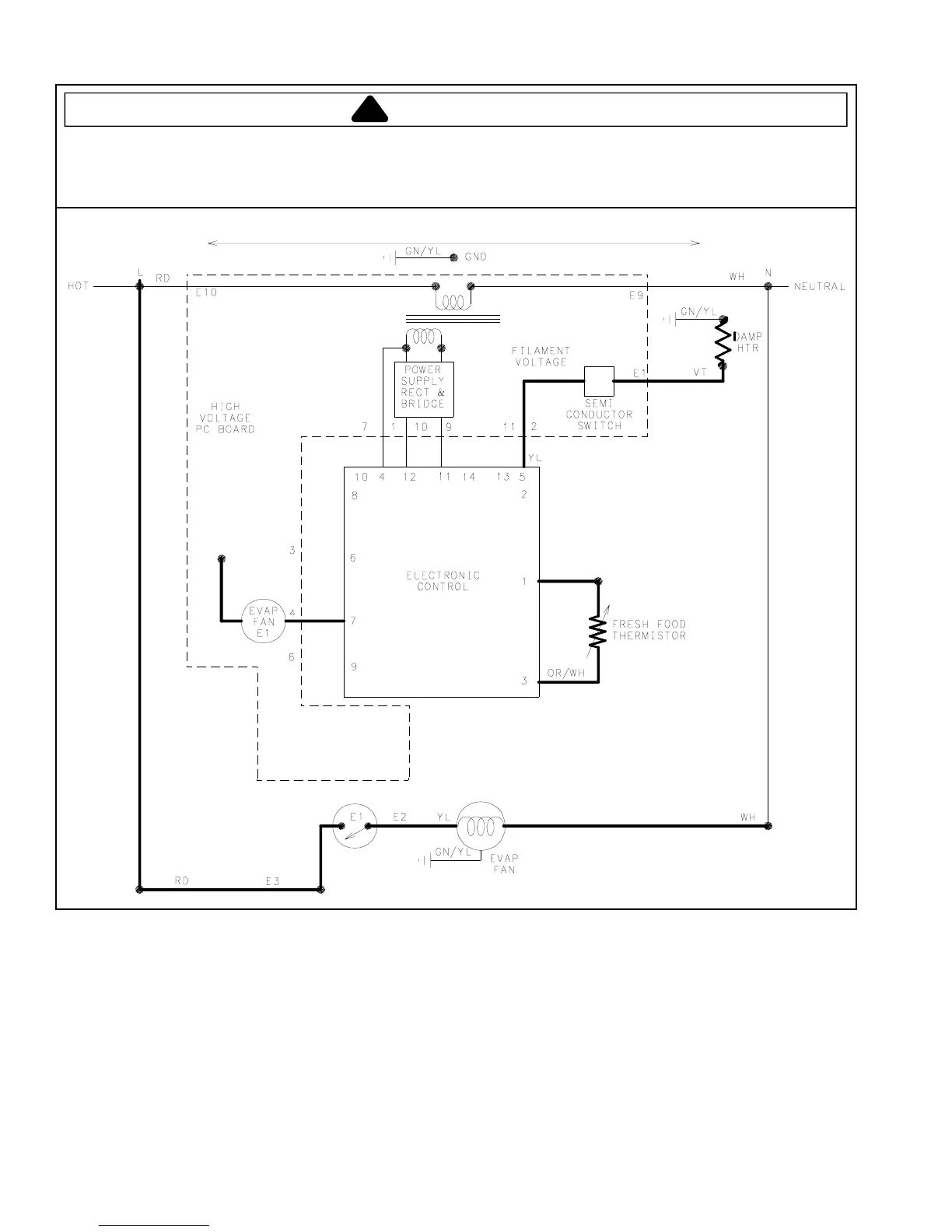

Electronic Functional Description
Refrigerator Compartment
As fresh food thermistor warms, resistance decreases
allowing low voltage signal to be sent to the electronic
control. Electronic control sends two low voltage
signals, one to damper heater and one to evaporator
fan relay coil (E1).
Damper heater warms damper control bellows,
opening damper door at the same time relay coil
closes high voltage contacts to evaporator fan motor.
With evaporator fan operating and damper door open,
freezer air circulates into fresh food compartment. As
fresh food thermistor cools, resistance increases
blocking low voltage signal to electronic control
interrupting circuit to evaporator fan motor relay coil
and damper heater.
To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator using
power switch before servicing. Discharge capacitors through a resistor before handling. Wires removed during
disassembly must be replaced on proper terminals to insure correct earthing and polarization. After servicing,
reconnect power using power switch.
WARNING
230 VAC
To Next Page
