• Set the function switch (E) to the Ω CAP
position.
• Insert the black connector lead (Q) into the
COM input jack (L).
• Insert the red connector lead (Q) into the
input jack (K).
• Ω should light up on the display (A).
• Touch the test probes (Q) across the circuit or
part under test.
• The stabilized value on the display (A) is read as
the actual reading.

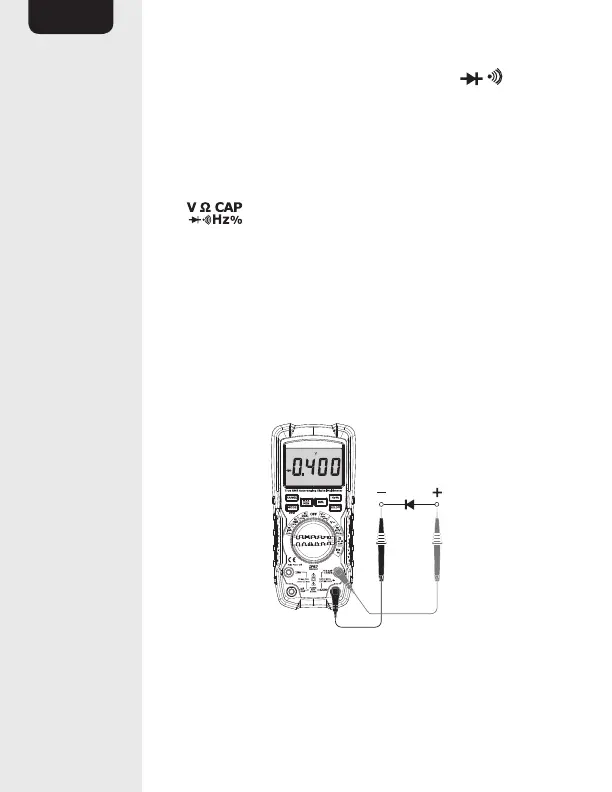

Diode test
