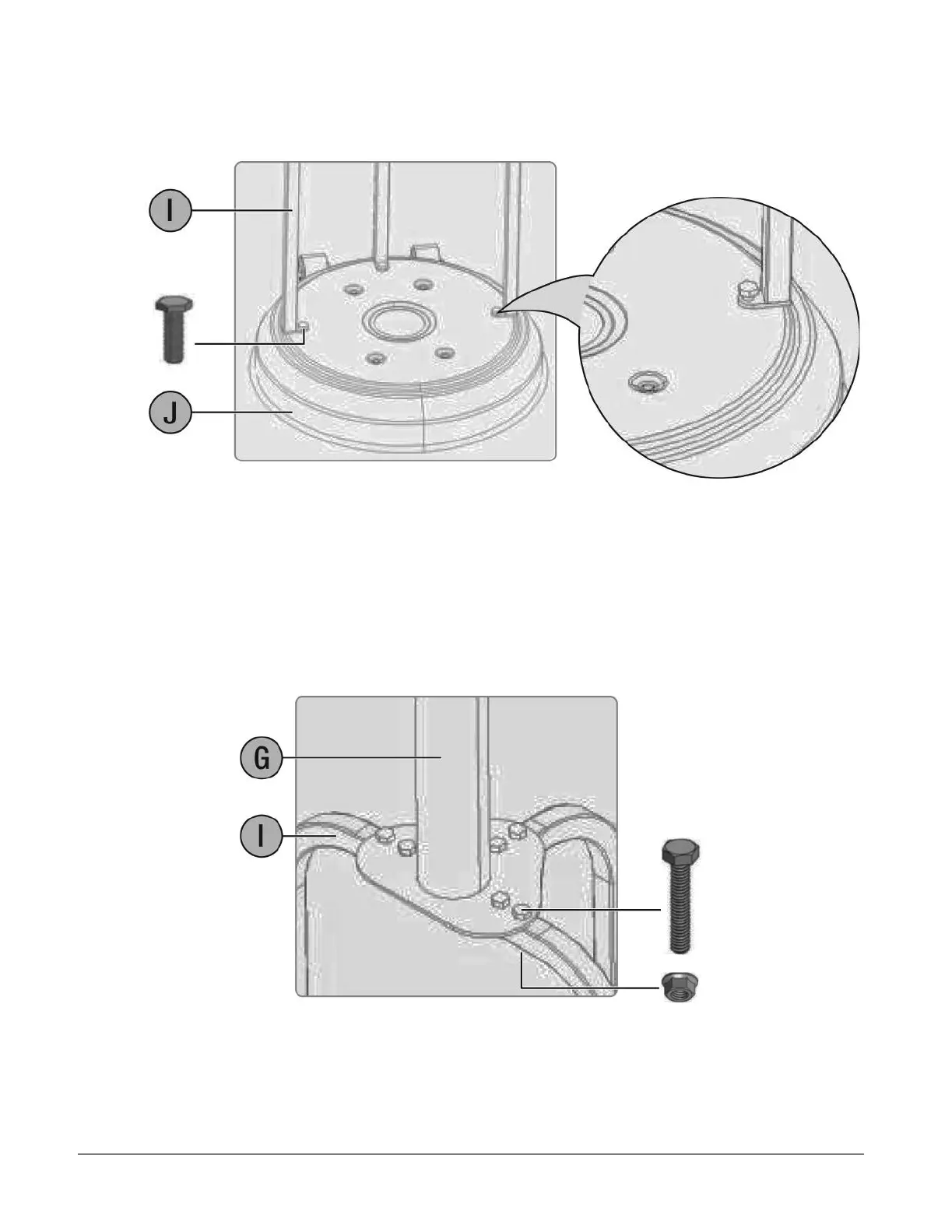

Step 3: Align the holes in the bottom of the post support (I) and base, then secure with a small
bolt (hand tighten). Repeat with the other two post supports, then tighten all bolts with the
wrench.
Step 4: Align the holes in the lower post (G) with the holes in the tops of the post supports.
Insert a large bolt through each hole, then secure with a small flange nut. Tighten with the
wrench after all bolts have been inserted.
Step 5: Screw the upper post (F) onto the lower post.
Small
bolt (3)
Large bolt (6)
Flange nut (6)
