10Lockit Users manual |

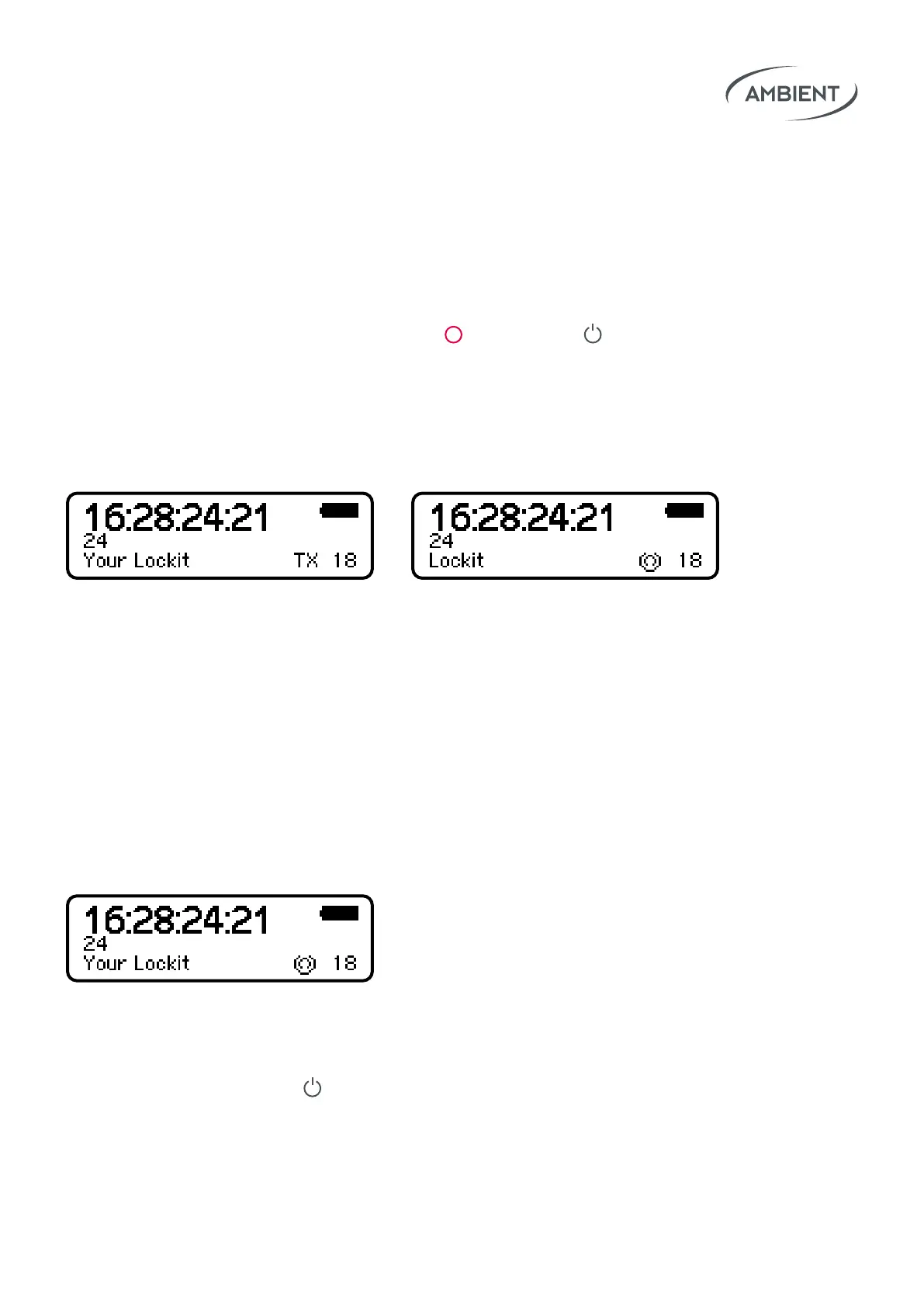

5.3 TX Mode (Transceiver Mode)
The TX Mode basically works like the C-Jam Mode, with the dierence that
the TX Master receives timecode and frame rate from an external source via
cable. Main use cases are playback situations (e.g. music video shootings).
To start the unit as TX Master press and hold
Red, then tap Power.
As soon as the external source sends timecode, the TX Master will broadcast
it via ACN to all other Lockits. They will display an ACN icon at the lower right
of the display.
As soon as the external source stops sending timecode to the TX Master, the
timecode on all Lockits will freeze, and they will start ashing yellow. As soon
as the timecode starts running again, they’ll ash green again.
Note: to make the TX Mode work, all Lockit Devices must run
on the latest rmware. (7.xx)
5.4 ACN Receiving Mode
All Lockit devices that are jammed via a C-Jam or TX Master automatically
switch to ACN Receiving Mode, indicated by the ACN logo in the lower right of
the display.
Lockit devices in ACN Receiving Mode constantly follow the current C-Jam or
TX Master.
To power up just long-press
Power.
Lockit devices that are powered up at a later point of time will automatically
switch to ACN Receiver Mode after having received a jam via ACN. Their time-
code and frame rate will be set accordingly.
