10.2 Connector Pinouts

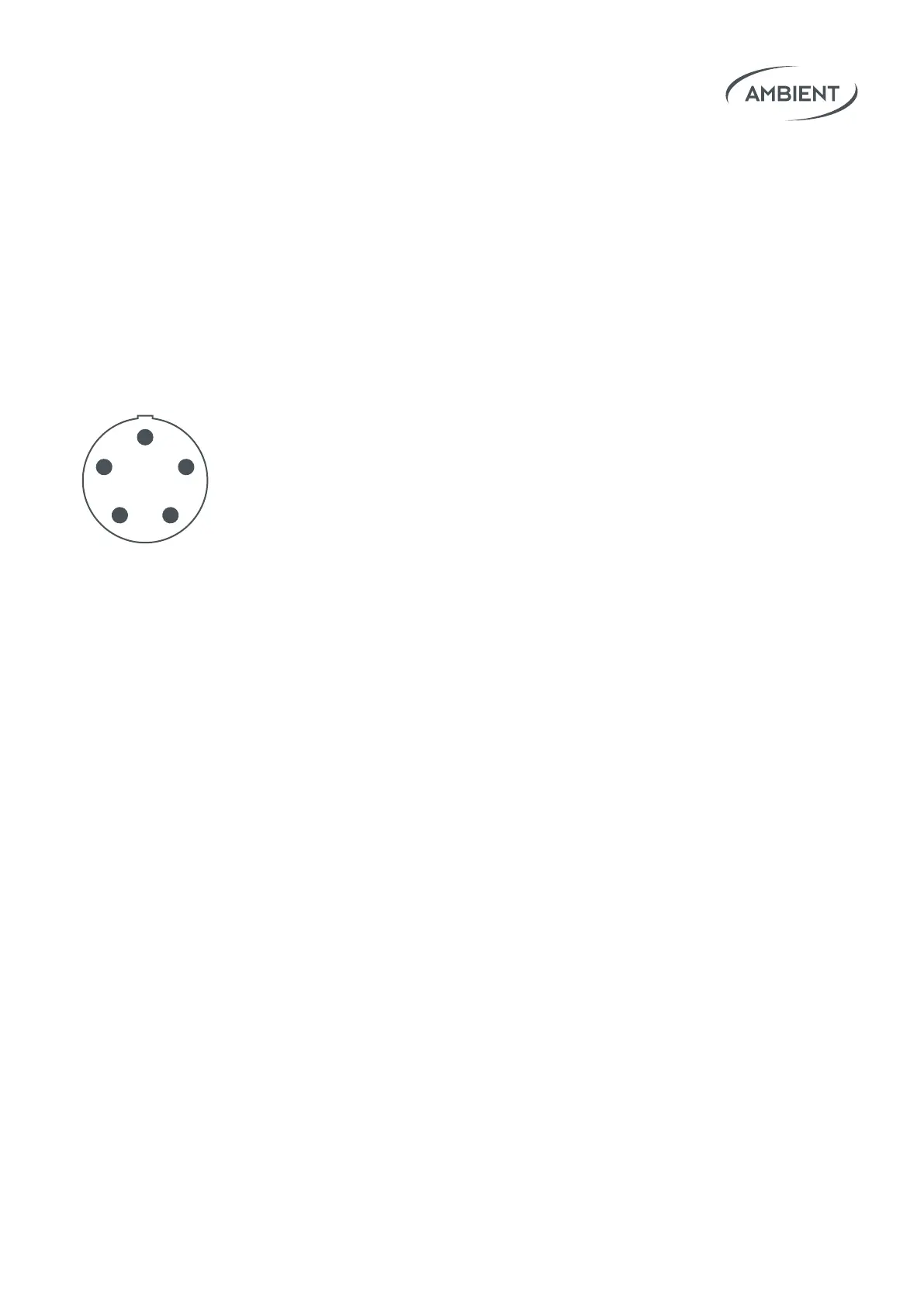

Blue ACN Connector
Accept LEMO FGG.0B.305 and compatible push-pull plugs.
Connectors carry TC in and out as per industry standard
and ACN metadata.
ACN
1 GND
2 TC in
3 ACN TX
4 ACN RX
5 TC out
1
5
4
2
3
