Ambirad AR13 U - Reflector End Caps and Mounting Diagrams; Fitting Reflector End Caps (Figure 7); Inclined Mounting Diagram - Unflued (Figure 8); Inclined Mounting Diagram - Flued (Figure 9)

9
Screw

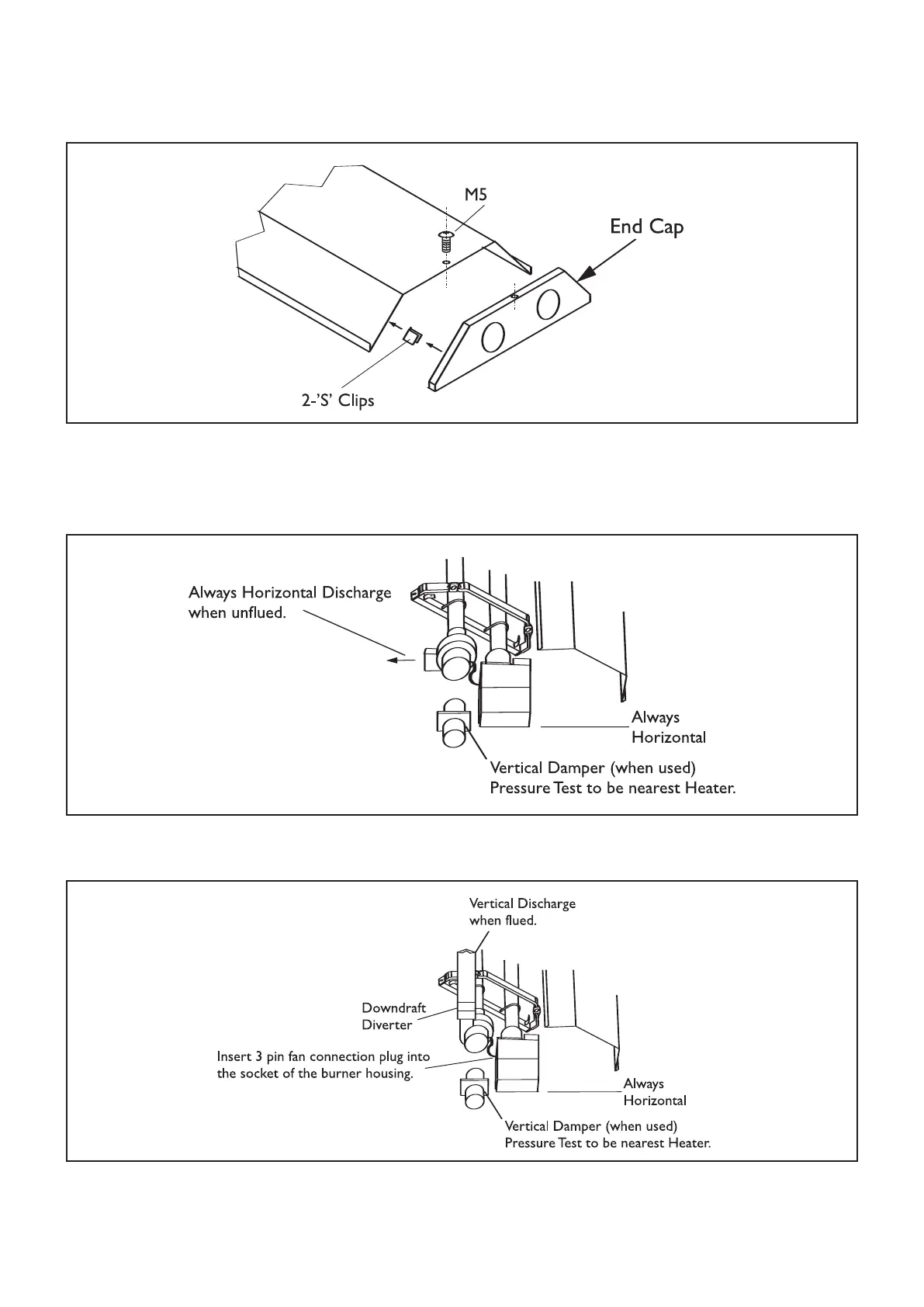

Figure 7 Fitting reflector end caps
Figure 8 Inclined mounting – unflued
Figure 9 Inclined mounting – flued
Fit reflector end caps using M5 bolts
, washers and ‘S’ clips. (Not applicable to ARE range)
Note Do not stand on reflectors when removing plastic film.
Fit relector end-caps before fitting burner
assembly and fan assembly.
