Technical Information
44
Precision Induction Heating
MBRELL
®
-
-
Remote Input
Case: use an external signal to set the desired output level of the EASYHEAT. Depending
on the signal source you plan to use (0-10Vdc is the default configuration), follow these
instructions to change.
Electrical Touch-pad

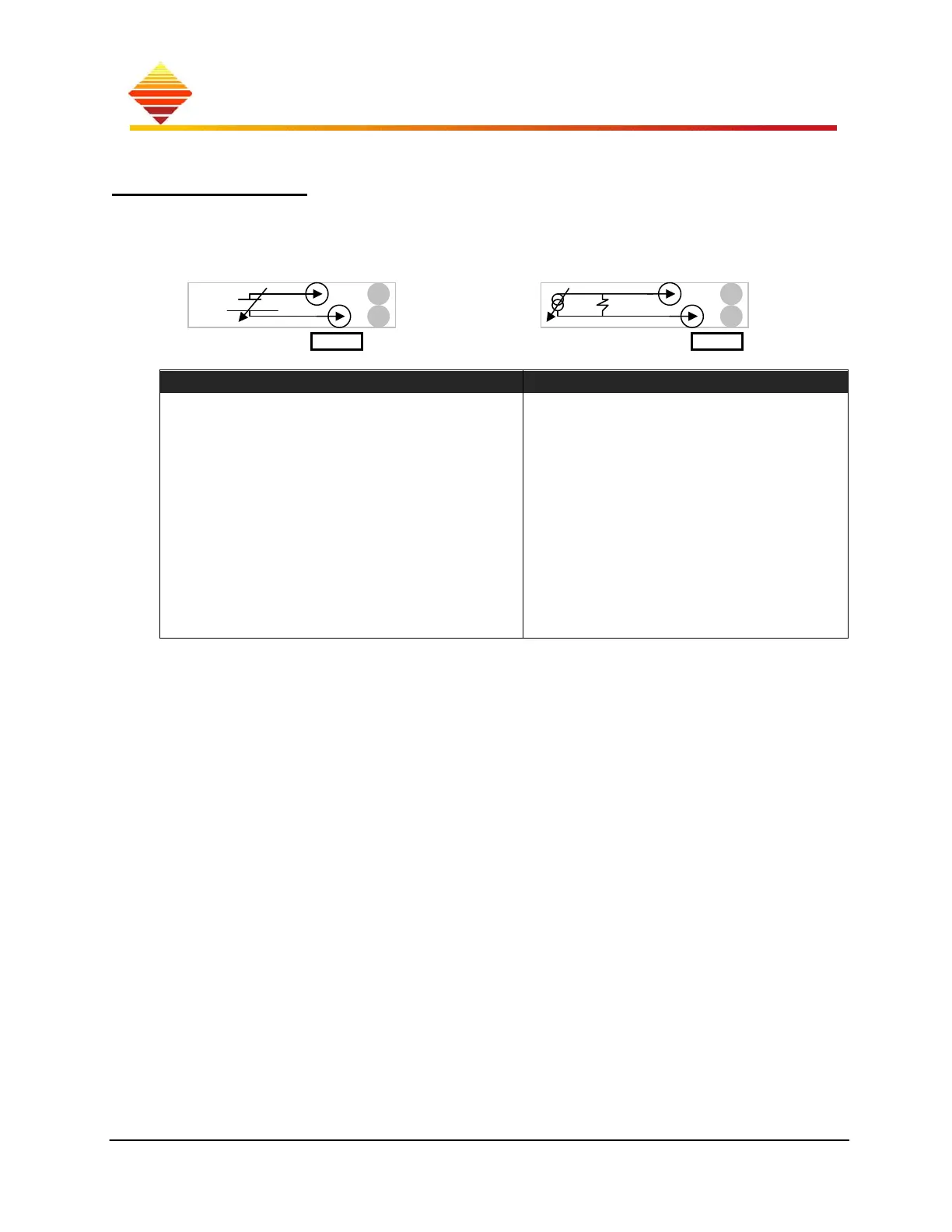

Using 0-10Vdc source: (left)
upper terminal = negative
lower terminal = positive
set jumper left (illustration)
Using 4-20mA source: (right)
upper terminal = negative
lower terminal = positive
across both = 250 resistor (included) set
jumper right (illustration)
Observe polarity with these connections!
►System Options
Control From
►Rear Panel
to Control, to Home
Result: Setpoint established and held with your analog voltage or current source. To
START/STOP remotely, also, see previous.
Remote
Input
+
-
JMP
Remote
Input
+
-
JMP
