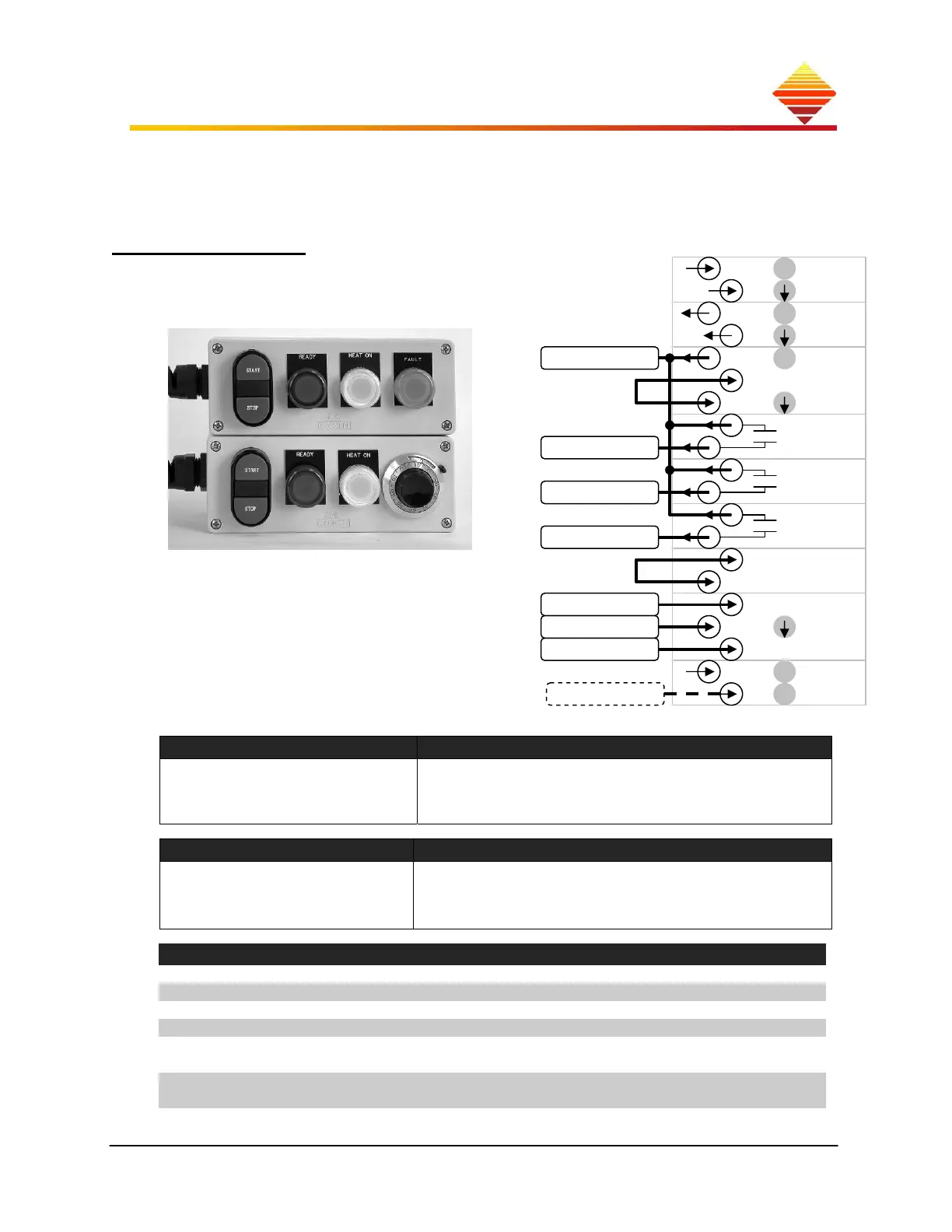

Pendant Styles
At this writing, there are two models available:
 3-lights, Start/Stop (upper)
 2-lights, Start/Stop, Power Control (lower)
The 3-light model puts Stop, Start and Status
indicator in your hand. The 2-light (Power
Control) model lets you adjust the Setpoint
from the pendant. Fault indication is not
provided at the pendant, but it is implied
(Ready and HeatOn are both dark). Fault
status is always available at the front panel.
See :§2.2 for Control instructions to configure the unit.
3-light model Touch panel
STOP>Gnd (default) jumper is
removed from TB1
►System Options
Start From ►Rear Panel
Control From ►Front Panel
Start Type ►2 button
2-light model Touch panel
J8 set left (illustration, Remote
Input)
►System Options
Start From ►Rear Panel
Control From ►Rear Panel
Start Type ►2 button
Do this... Observe...
 follow instruction under §1.4 to assemble your equipment
 attach pendant terminal block to TB1 polarized; fits one way
 secure cable with P-clip provided middle chassis screw, rear
 turn on AC power Ready at pendant
 (3-light) adjust Setpoint at front panel; use pendant to
Start/Stop heating
Ready + HeatOn
 (2-light) adjust, lock Setpoint at pendant; use pendant to
Start/Stop heating, change Setpoint
Ready + HeatOn
Aux
Input
24 V
E-Stop
Gnd
Aux
Output
Fault
HeatOn
Ready
FLS
Remote
Input
STOP
Gnd
START
+
+
+
+
-
RED/BLK
WHT/BLK
WHT
GRN
BLU
BLK
ORG
RED
