The remote work head attaches here. A specially-designed cable conveys RF energy to
the work head while plastic tubing routes cooling water to the coil (CLEAR), to the
capacitors (BLUE) and from (RED) the entire work head.
Your EASYHEAT uses circulating water to cool internal components and the coil; inlet
and outlet connections for the entire system are made at the rear. Internal flow switches
and temperature sensors are used to interrupt heating operations if this flow is inadequate
and are used to reduce heating if the internal temperature rises too high. Cooling water is
directed to and from the work head through the chassis and monitored by the power
supply.
Circuit breaker
This gang-switch controls the mains connection to the power supply. Trip level may vary
by model; see §4.
AC Line Inlet
This strain-relief fitting secures the provided 4-wire AC mains cabling.
Terminals (TB1)
Electrical connections are made here for all input and output signals (§3).
Grounding Studs
Safety Stud: Ensure that this auxiliary protective earth is connected to your facility
safety grounding before applying AC power.
Signal Stud: For signal grounding connections; not for equipment safety ground
connection!

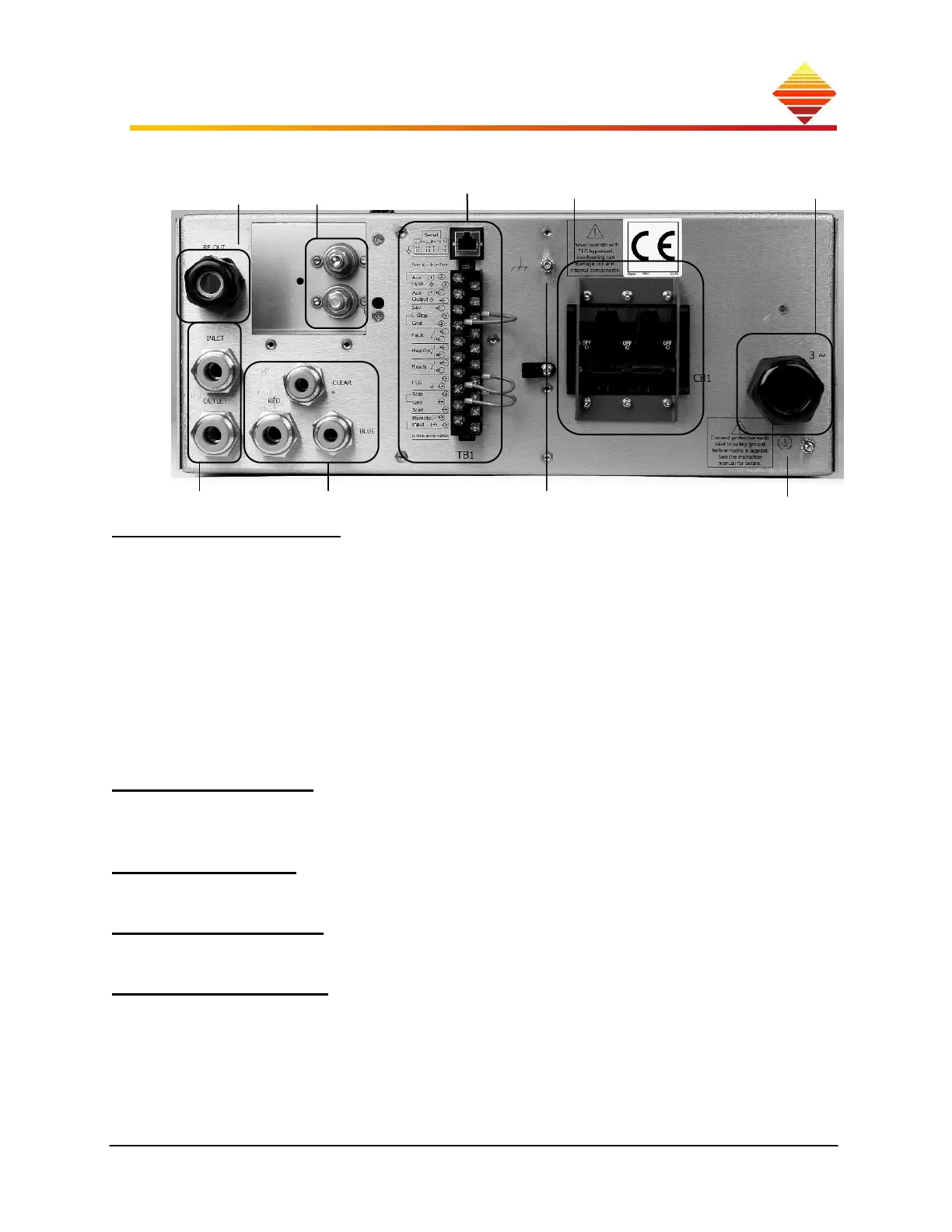

Terminals RF Output, terminals (cover removed)
Work Head Water System Water
Circuit Breaker AC Line Inlet
Signal Stud Safety Stud
