25
▪ Manual - This setting lets you select your shutter speed and have the gain adjust
automatically. Selecting customized range will let you both the shutter speed an
adjust the gain manually.
• 3D NR: This radio button allows the user to turn the 3D Noise Reduction feature on or off.
• 3D NR Level: This slider allows the user to specify the 3D Noise Reduction level. The value ranges
from 1-100.
To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the
Save button.

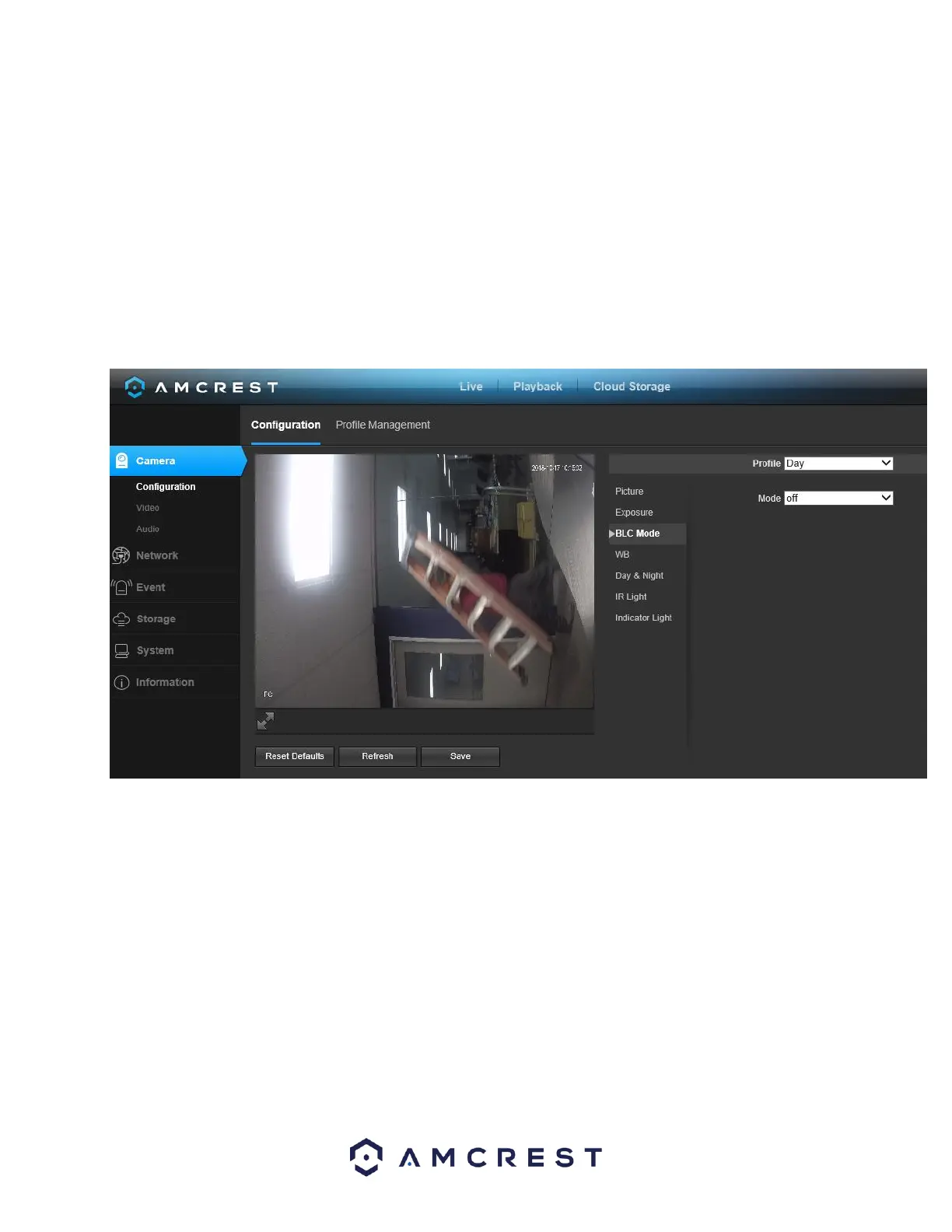

5.4.1.1.3. BLC Mode
This dropdown box allows the user to select Back Light Compensation. The values are Off, BLC (Auto), WDR, and HLC. This
feature should only be used in black lit environments. Below is a screenshot of this menu:
• BLC: backlight compensation: Default will use the whole image to balance the lighting settings, and
Customized will allow you to balance the lighting settings from the target area.
• WDR: Wide Dynamic Range makes multiple scans of a scene to provide one balanced and unwashed
image that is clear for the user.
• HLC: Highlight compensation is a feature that came out of necessity due to overexposure from strong
light sources like headlights or spotlights
To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the
Save button.
5.4.1.1.4. WB
This dropdown box allows the user to select the white balance for the video feed. The different options are Auto, Sunny, Night,
Outdoor, and Customized. Selecting customized opens a menu that allows the user to set specific red or blue values. Below is a
screenshot of this menu:
