| Operating Instructions Manual | Operating Instructions Manual
• Perio Mode, Preset 1 and 2:
1. Preset 1: LBR – 1.0 W 30ms interval and duration with a
5 second timer.
2. Preset 2: LAPT - 0.5 W continuous with a 30 second timer.
• Aphthous Ulcer Mode: 0.5 W continuous with a 30 second timer
• • Custom Mode: Set to 1.0 W by default
• • Whitening Mode: Preset to 7.0 W, 30 second timer
• • Output Range: 0.5–7.0 W ± 20%
• • Laser Operation Note: 0.5–5.0 W Continuous Operation
>5.0 W Intermittent Operation 2 min on, 5 min off or
in standby mode
OTHER LIGHT SOURCES
• Aiming Beam: 632 nm ± 20%, max 5 mW, Class 2 (IEC 60825-1) laser
• Medium: Laser Diode
LASER – PICASSO LITE PLUS (Model PL810)
• Laser Classification: IV (4)
• Medium: GaAlAs
• Wavelength: 810 ± 10 nm
• Power Accuracy: ± 20%
• Power Modes: Continuous, Repeat Pulse
• Pulse Duration: Adjustable 20ms – 9.9s
• Pulse Interval: Adjustable 20ms – 9.9s
• Delivery Fiber Diameter: 200µm - 300µm
• Continuous Mode: Preset to 1.8 W continuous, adjustable from 0.5–3.0 W
• Repeat Mode: Adjustable 0.5–3.0 W, 20 ms – 9.9 sec interval and duration
• Comfort Mode: Preset to 1.5 W 30ms interval and duration
• Perio Mode, Preset 1 and 2
1. Preset 1: LBR – 1.0 W 30ms interval and duration with a
5 second timer.
2. Preset 2: LAPT - 0.5 W continuous with a 30 second timer.
• Aphthous Ulcer Mode: 0.5 W continuous with a 30 second timer
• Custom Mode: Set to 1.0 W by default
• Output Range: 0.5–3.0 W ± 20% output
• Laser Operation Note: 0.5–3.0 W Continuous Operation
INITIATING TIP
Focusing laser energy to the end of the fiber or tip is necessary for cutting and coagulation to occur. The
better the initiation the more focused and concentrated laser energy becomes. A sample of articulating
paper is included with each Picasso laser. Select the SPEED or HYGIENE MODE preset and drag the tip
onto the articulating paper while firing the laser.

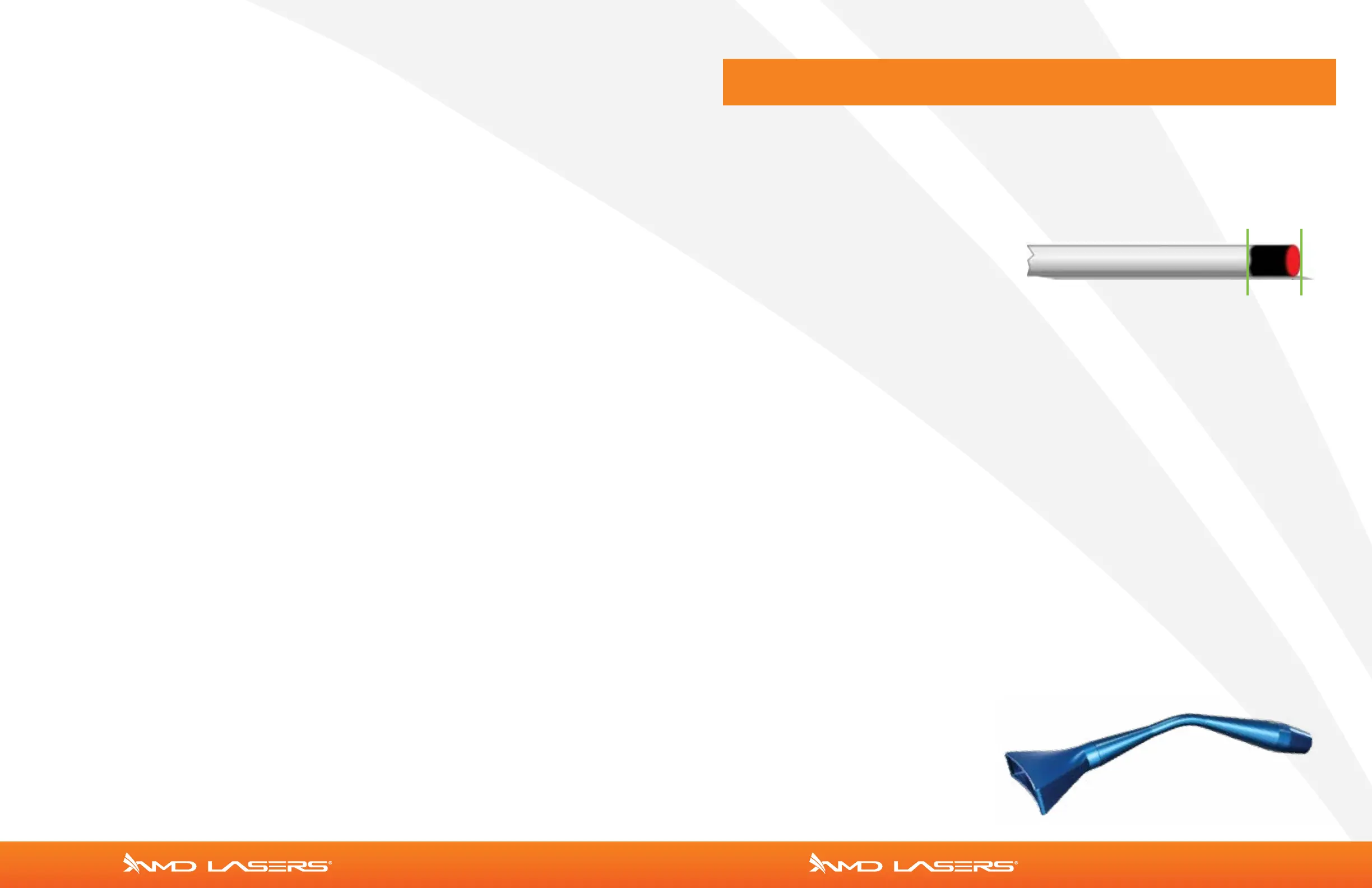

A good ignition will cover 3–4 mm of the tip with
a dark carbonization (Figure 16). Articulating paper
is flammable and precautions should be followed
to prevent unintended combustion.
Once initiated, do not touch the tip anywhere other than where cutting tissue is a desired treatment.
Initiating the tip of the Diode Laser is necessary for all procedures which require cutting or tissue removal.
Using provided or replacement articulating paper, rub the paper while firing the laser to cover 3–4 mm
of the tip with carbonization.
Articulating paper is flammable. Please use and dispose of the articulating paper using fire proof
collection bins in order to prevent accidental ignition of flammable materials. See Instructional video.
TEETH WHITENING (PICASSO+ ONLY)
Picasso teeth whitening should be performed only by trained personnel and as allowed by local, state
and federal authorities. Picasso is designed for fast, efficient laser whitening with a unique laser adapter,
the Quadra Tip. Most whitening is performed by first cleaning, pumicing the teeth, isolating the gingival
and soft tissue mucosa with a liquid rubber dam, and applying the whitening manufacturer’s bleach
1.5mm thick on the teeth. Picasso has a built in whitening mode.
The Quadra Tip (FIGURE 17) does not make contact with the patient during the whitening procedure.
Refer to the specific instructions supplied with your whitening kit.
To select the WHITENING operation, the user simply selects the Whitening preset. In this mode, the
mode is preset from the factory at 7.0 W with a 30 second timer. Releasing the foot control will
interrupt the 30 second timer but will not reset it. Upon reaching 30 seconds, the timer will reset.
Pressing the foot switch will star the 30
second cycle again. The only variable
parameter is the output power. To operate
the laser in the WHITENING MODE press
the STANDBY/READY button. The laser will
now deliver output radiation as long as the
user holds the foot switch down. An audible
INSTRUCTIONS FOR ACCESSORIES
FIGURE 16
FIBER 3–4mm
CARBONIZATION
FIGURE 17
